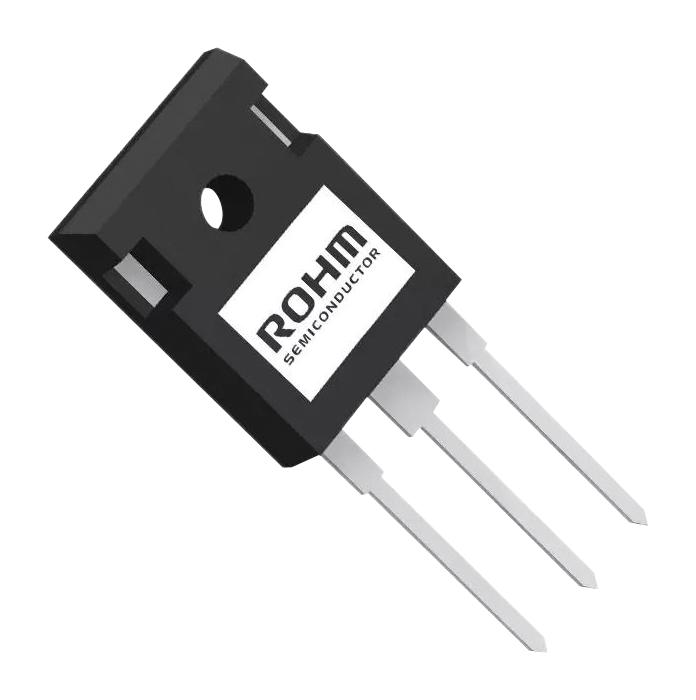

ROHM RGTV60TS65DGC11 Power IGBT Module
The RGTV60TS65D is a 650V, 30A trench IGBT designed for high-efficiency inverter applications. Featuring low saturation voltage, fast switching capabilities, and built-in fast recovery diode, it is suitable for solar inverters, UPS, and motor control. The device supports high pulse currents up to 120A, with excellent thermal stability and RoHS compliance, making it ideal for reliable power switching in industrial systems. Its compact TO-247N package ensures easy installation and efficient heat dissipation, facilitating robust and long-lasting operation in demanding environments.
ROHM RGTV60TS65DGC11 Power IGBT Module Specifications:
- Collector - Emitter Voltage: 650 V
- Collector Current: 60 A at Tc=25°C, 30 A at Tc=100°C
- Pulsed Collector Current: 120 A
- Power Dissipation: 194 W at Tc=25°C, 97 W at Tc=100°C
- Gate - Emitter Voltage: +30 V, Leakage Current: <200 nA
- Collector - Emitter Saturation Voltage: 1.5 V (Typ.) at 25°C
- Gate - Emitter Threshold Voltage: 5.0 to 7.0 V
- Power Dissipation: 194 W (max), operating junction temperature: -55°C to +175°C
- Thermal Resistance, Junction to Case: 0.77 °C/W
- Reverse Recovery Time: 95 ns, Peak Reverse Recovery Current: 84 A
- Device packaged in TO-247N, RoHS compliant, Pb-free plating
Buy the ROHM RGTV60TS65D – Reliable Power Switching for Industrial Applications
Purchase the ROHM RGTV60TS65D now—designed for high-efficiency power switching in industrial applications. Featuring a broad voltage range of 650V, high collector current capacity, and fast recovery diode, this IGBT ensures reliable performance in solar inverters, UPS, and motor control systems. Its low saturation voltage and fast switching times minimize losses, while RoHS compliance and Pb-free plating support environmentally responsible manufacturing. Trust this robust module for durable and efficient power management, improving system performance and reliability in demanding environments. Order online today for quick delivery and excellent support.
Get ROHM RGTV60TS65D today—built for precision and long-lasting durability in high-power industrial systems.
Frequently Asked Questions
Where can I buy ROHM RGTV60TS65DGC11?
You can click on the BUY or RFQ button to purchase RGTV60TS65DGC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGTV60TS65DGC11?
You can download the RGTV60TS65DGC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGTV60TS65DGC11?
ROHM
