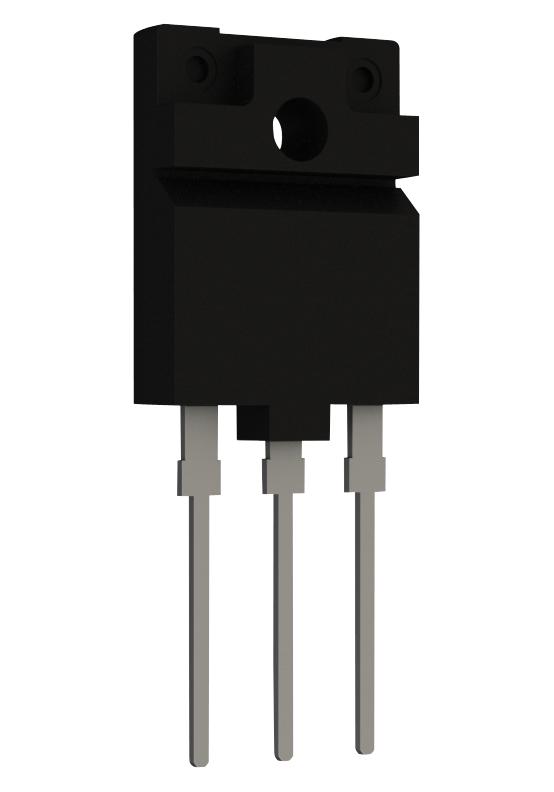

ROHM RGW60TK65DGVC11 High Power Trench IGBT
The RGW60TK65D is a 650V, 30A trench IGBT featuring low saturation voltage, high-speed switching, and soft recovery diode. Suitable for inverter, PFC, and renewable energy applications, it offers excellent thermal performance, low switching loss, and RoHS compliance. Its robust design ensures reliable operation under high voltage and current conditions, making it ideal for power conversion circuits, motor drives, and industrial automation systems. The device is packaged in a tube for easy handling and installation, providing high efficiency and durability in demanding environments.
ROHM RGW60TK65DGVC11 High Power Trench IGBT Specifications:
- Collector-Emitter Voltage: 650 V
- Collector Current: 30 A at Tj=25°C, 20 A at Tj=100°C
- Pulsed Collector Current: 120 A
- Gate-Emitter Voltage: +30 V
- Diode Forward Current: 16 A at Tj=100°C
- Power Dissipation: 72 W at Tj=25°C, 36 W at Tj=100°C
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance (Junction-Case): 2.07°C/W
- Thermal Resistance (Diode Junction-Case): 2.79°C/W
- Gate Charge (Qg): 84 nC
- Turn-on Delay Time: 37 ns
- Fall Time (Inductive Load): 35 ns
- Switching Loss (Turn-on): 0.48 mJ
- Switching Loss (Turn-off): 0.49 mJ
- Recovery Voltage: 1.9 V at 25°C
- Reverse Recovery Time: 92 ns
- Package: PFC Tube
Buy the ROHM Series Trench IGBT: RGW60TK65D
Enhance your power conversion systems with the high-performance RGW60TK65D trench IGBT. Rated at 650V and 30A, it features low saturation voltage, fast switching, and a built-in soft recovery diode. Ideal for inverters, motor drives, and renewable energy solutions, this device offers excellent thermal management, high reliability, and RoHS compliance. Its robust construction ensures dependable operation under demanding conditions, reducing energy losses and improving system efficiency. Purchase online today and upgrade your industrial power modules with this durable power semiconductor component.
Buy ROHM RGW60TK65D now and experience unmatched reliability and power efficiency in your industrial and inverter applications.
Frequently Asked Questions
Where can I buy ROHM RGW60TK65DGVC11?
You can click on the BUY or RFQ button to purchase RGW60TK65DGVC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGW60TK65DGVC11?
You can download the RGW60TK65DGVC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGW60TK65DGVC11?
ROHM
