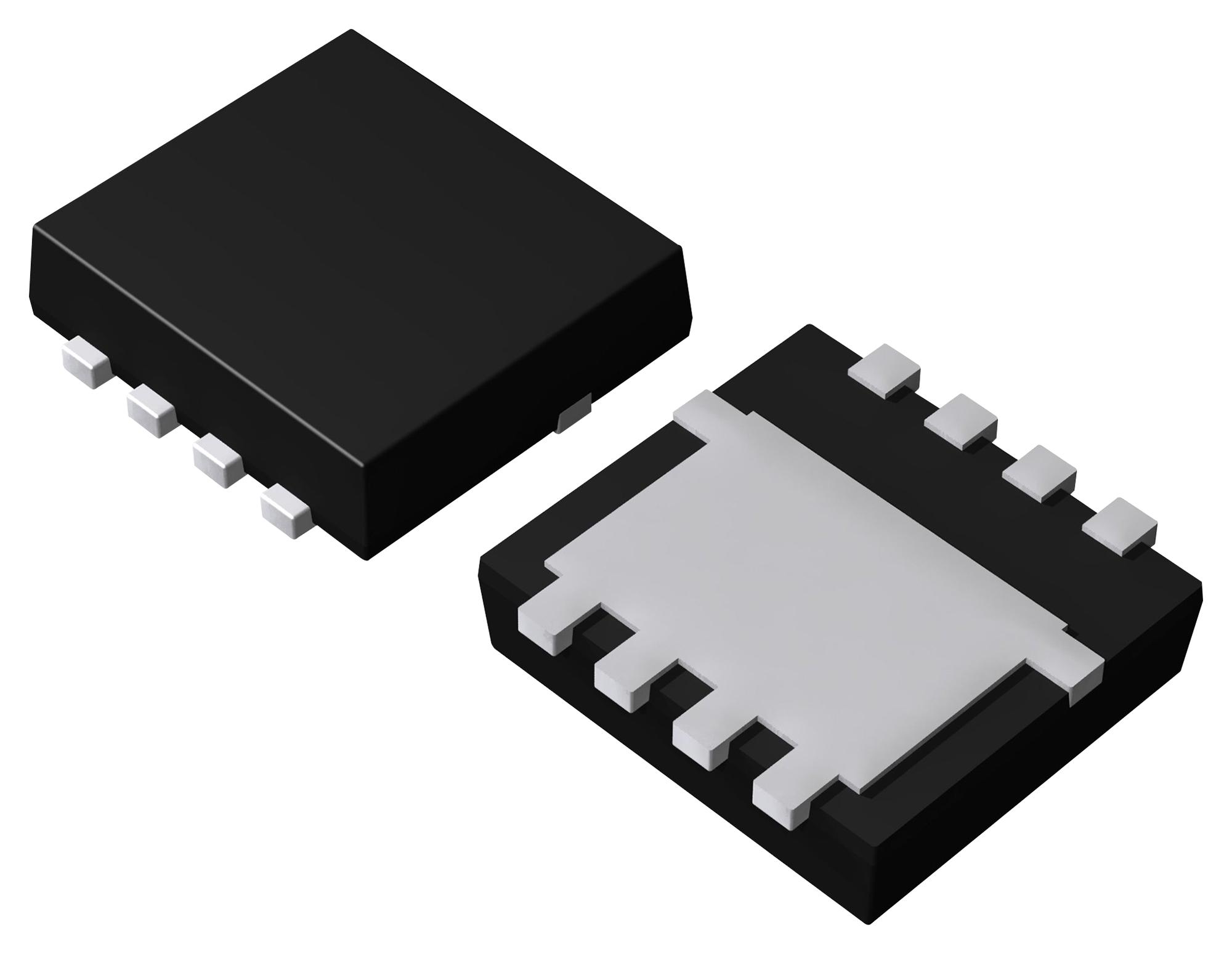

ROHM RQ3L050GNTB Power MOSFET
The RQ3L050GN is a compact, low on-resistance power MOSFET designed for efficient switching in industrial electronics. It features a 60V drain-source voltage, 12A pulsed drain current, and a small surface-mount package ideal for space-constrained applications. Its key features include low gate charge, excellent avalanche energy, and a high junction temperature range. Suitable for switching power supplies, motor control, and various electronic circuits requiring high reliability and performance, this MOSFET offers a robust solution for modern industrial systems.
ROHM RQ3L050GNTB Power MOSFET Specifications:
- Drain-Source Voltage: 60 V
- Pulsed Drain Current: 12 A
- Continuous Drain Current: 5 A
- Power Dissipation: 14.8 W
- Gate-Source Voltage: ±20 V
- Avalanche Energy, Single Pulse: 3.9 mJ
- Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-Ambient: 62.5°C/W
- Thermal Resistance, Junction-Case: 8.4°C/W
- Gate Threshold Voltage: 1.0–2.5 V
- Static On-Resistance: 47–86 mΩ
- Body Diode Forward Voltage: 1.2 V
- Temperature Range of Storage: -55°C to +150°C
- Package: HSMT8 Surface Mount Package
Buy the ROHM RQ3L050GN – Reliable MOSFET for Industrial Applications
Purchase the ROHM RQ3L050GN power MOSFET online today to benefit from its low on-resistance, compact design, and high reliability. This device is ideal for efficient switching in power supplies, motor controls, and other industrial applications. Designed for ease of mounting with surface-mount technology, it features excellent avalanche energy, minimal gate charge, and wide temperature operation. Ensure your systems stay at peak performance with this high-quality MOSFET, available for quick and safe online ordering to support your manufacturing needs.
Get ROHM RQ3L050GN today—built for precision and long-lasting durability in industrial switching modules.
Frequently Asked Questions
Where can I buy ROHM RQ3L050GNTB?
You can click on the BUY or RFQ button to purchase RQ3L050GNTB from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RQ3L050GNTB?
You can download the RQ3L050GNTB datasheet or visit the ROHM website for support.
Who is the manufacturer of RQ3L050GNTB?
ROHM
