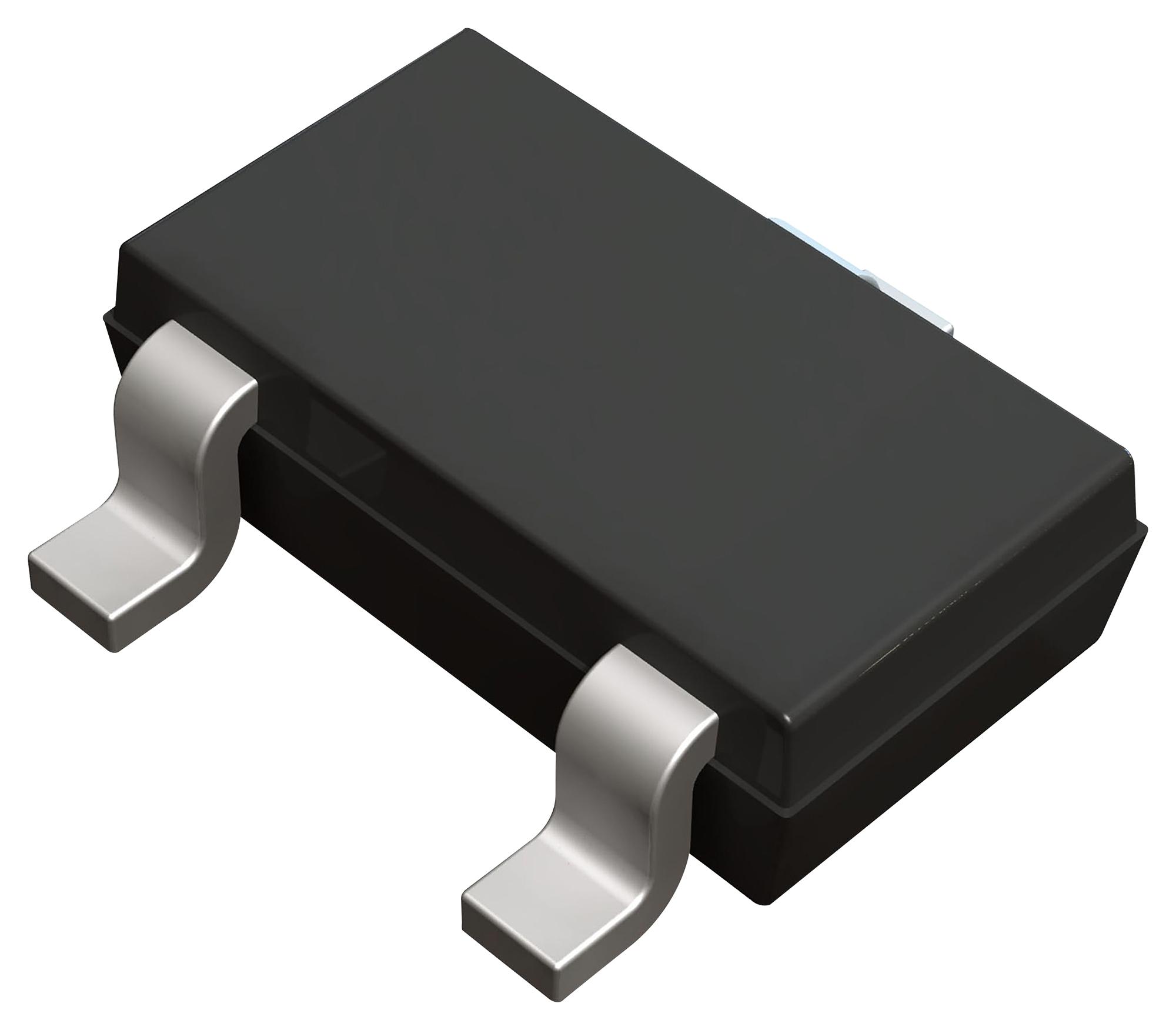

ROHM RQ5H020SPTL Power MOSFET
The RQ5H020SP is a high-performance N-channel Power MOSFET optimized for high-speed switching applications. Featuring low on-resistance and built-in protection diodes, it ensures efficient power management with a maximum drain-source voltage of 45V and continuous drain current of 2.0A. Suitable for use in DC/DC converters and power supplies, it has a small surface-mount TSMT3 package, RoHS compliance, and robust thermal characteristics. Its electrical features include low gate charge, leakage currents, and reliable breakdown voltage, making it ideal for compact, high-efficiency electronics.
ROHM RQ5H020SPTL Power MOSFET Specifications:
- Drain-Source Voltage: 45V
- Continuous Drain Current: 2.0A
- Pulsed Drain Current: 8.0A
- Gate-Source Voltage: ±20V
- Power Dissipation: 1.0W
- Thermal Resistance Junction-Ambient: 232°C/W
- Body Diode Forward Voltage: 1.2V at 2.0A
- Gate Capacitance: 500pF (Ciss), 80pF (Coss), 40pF (Rss) at 25°C
- Rise Time: 10ns, Fall Time: 35ns
- Package: TSMT3 Surface Mount
- RoHS and Pb-free compliant
Buy the Buy ROHM RQ5H020SP Part Number RQ5H020SP Online
Purchase the ROHM RQ5H020SP Power MOSFET online to enhance your electronic projects with efficient high-speed switching performance. Featuring a compact TSMT3 package, low on-resistance, built-in protection diodes, and excellent thermal characteristics, this device supports reliable operation in power supplies and DC/DC converter applications. Its robust electrical specifications, including a maximum drain-source voltage of 45V and continuous drain current of 2.0A, ensure high efficiency and durability, making it an excellent choice for compact, high-performance electronic designs.
Get ROHM RQ5H020SP today—built for high-speed switching and long-lasting durability in power regulation circuits.
