ROHM RRR040P03TL Power Switching MOSFET
The ROHM RRRO40P03 is a silicon P-channel MOSFET designed for switching applications, offering low on-resistance and compact space-saving mounting in a TSMT3 package. It operates at a maximum drain-source voltage of -30 V and handles continuous drain current up to 4 A, with pulsed current capabilities of 16 A. With a gate drive voltage of 4 V, it features a low gate threshold voltage between -1 V and -2.5 V, making it suitable for efficient power switching. The device’s thermal resistance and power dissipation ensure reliable operation in various electronic circuits, especially where space and efficiency are critical.
ROHM RRR040P03TL Power Switching MOSFET Specifications:
- Type: Silicon P-channel MOSFET
- Package: TSMT3 (small surface mount)
- Drain-source voltage Voss: -30 V
- Gate-source voltage Vgs: ±20 V
- Continuous drain current Id: 4 A
- Pulsed drain current Ipp: 16 A
- Power dissipation Pd: 1.0 W
- Channel temperature Tch: 150°C
- Storage temperature Tstg: -55°C to +150°C
- Thermal resistance Rth (ch-a): 125°C/W
- Gate threshold voltage Vgs(th): -1 V to -2.5 V
- On-resistance Rds(on): 45-72 mΩ (at -2A, Vgs=–4V)
- Gate capacitance: Cgs: 1000 pF, Coss: 150 pF
- Body diode forward voltage: -1.2 V (at -4A)
- Switching characteristics: delay times ~15-85 ns, total gate charge ~10.5 nC

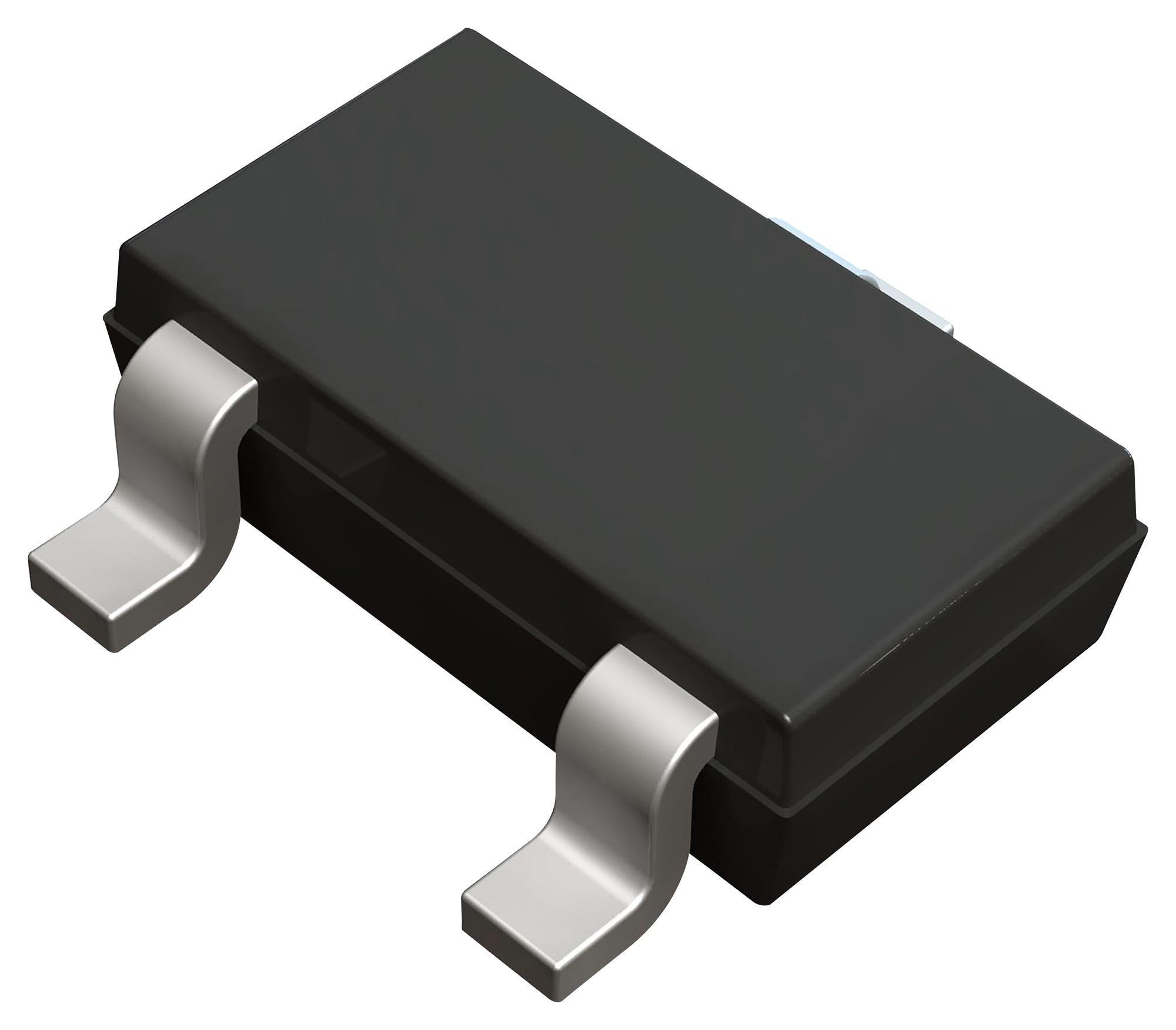

Buy the Buy ROHM RRRO40P03 Part Number RRR040P03 Online
Purchase the ROHM RRRO40P03 P-channel MOSFET online today and benefit from its low on-resistance, compact TSMT3 design, and high current handling capabilities. Perfect for efficient switching applications, it offers reliable performance with a drain-source voltage rating of -30 V and continuous drain current of 4 A. This device's small surface-mount package allows for easy integration into various electronic circuits, ensuring space-saving design without compromising on power and thermal performance. Get yours now to optimize your electronic projects with dependable power management.
Order your ROHM SeriesRRRO40P03 today and enhance your power switching circuits with this efficient, space-saving P-channel MOSFET.
Frequently Asked Questions
Where can I buy ROHM RRR040P03TL?
You can click on the BUY or RFQ button to purchase RRR040P03TL from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RRR040P03TL?
You can download the RRR040P03TL datasheet or visit the ROHM website for support.
Who is the manufacturer of RRR040P03TL?
ROHM
