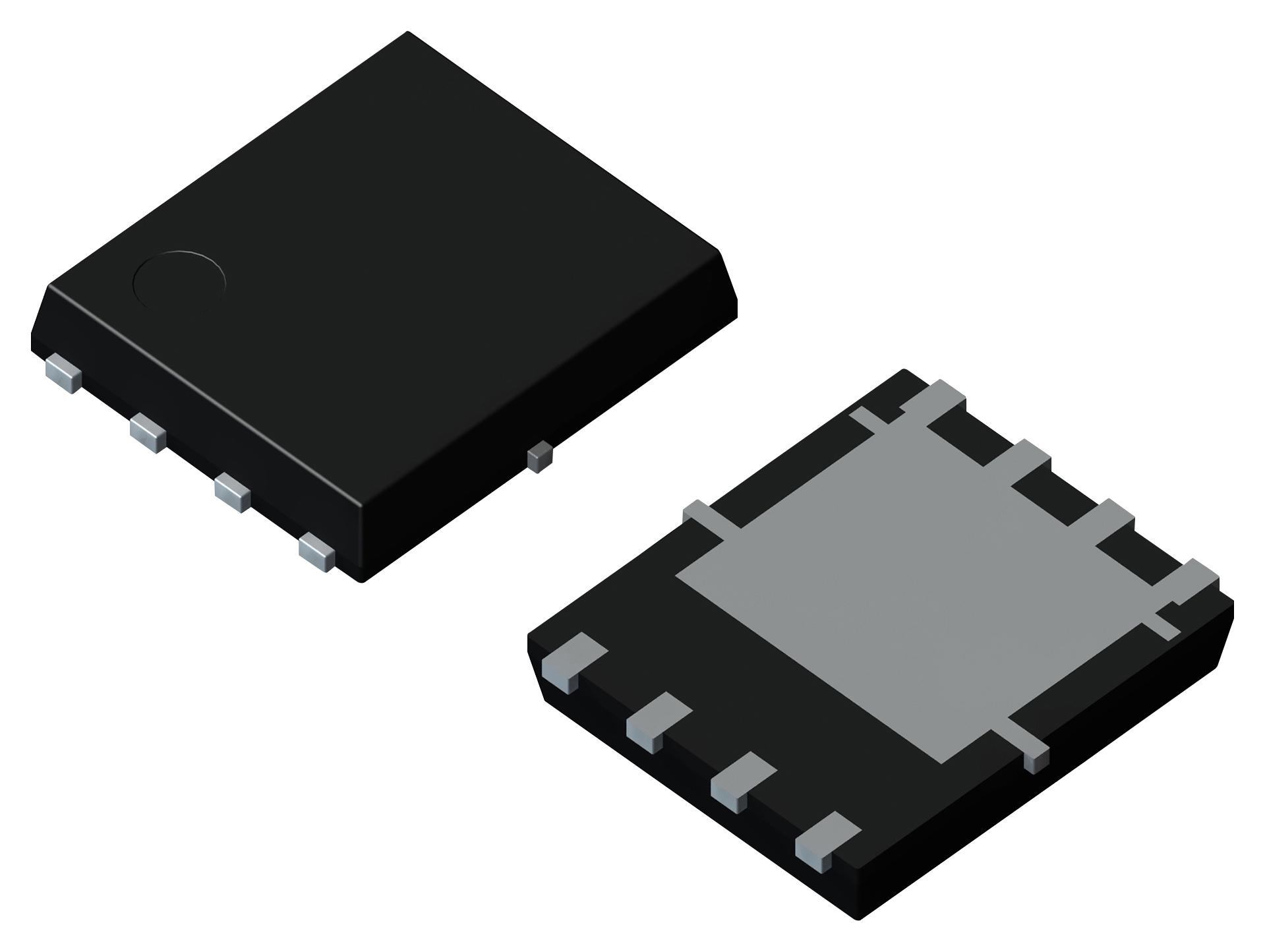

ROHM RS1G120MNTB Power MOSFET
The RS1G120MN is a reliable 40V, 12A power MOSFET in a compact HSOP8 package, designed for efficient switching and power management in electronic circuits. It features low ON-resistance, high power capacity, and RoHS compliance. Suitable for high-current applications, it is 100% tested for Rg and UIS, ensuring consistent performance. Its wide junction temperature range from -55°C to +150°C makes it ideal for demanding industrial environments, offering excellent thermal stability and durability in controlling electronic devices.
ROHM RS1G120MNTB Power MOSFET Specifications:
- Drain-Source Voltage: 40V
- Continuous Drain Current: 12A
- Pulsed Drain Current: 16.2A
- Gate-Source Voltage: ±20V
- Power Dissipation: 26W
- Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-Ambient: 41.7°C/W
- Thermal Resistance, Junction-Case: 5.0°C/W
- Body Diode Forward Voltage: 1.2V
- Gate Threshold Voltage: 1.0V to 2.5V
- Static Drain-Source Resistance: 15.6 to 20.7 mΩ at Vgs=4.5V, Id=12A
- Gate Charge (Qgs): 44nC, Gate-Drain Charge (Qgd): 41nC
- Packaging: Tape and Reel, Reel Size 330mm, Tape Width 12mm
- RoHS Compliant, Halogen Free
Buy the ROHM RS1G120MN – Reliable Power MOSFET for Industrial Applications
Enhance your electronic projects by purchasing the ROHM RS1G120MN power MOSFET online today. This device offers low ON-resistance, excellent thermal stability, and robust design for industrial applications. Ideal for power management, switching power supplies, and motor control, it ensures reliable and efficient operation under demanding conditions. With RoHS compliance and comprehensive testing, the RS1G120MN guarantees quality and safety. Secure your supply now and give your projects the dependable performance they deserve with fast, easy online ordering.
Order your ROHM Series RS1G120MN power MOSFET today and equip your circuits with dependable high-current switching performance.
