ROHM RSB12JS2FHT2R ESD Protection Diode
The RSB12JS2FH is a low capacitance transient voltage suppression (TVS) diode designed for ESD protection in high-speed digital and RF applications. It features ultra-small mold type construction, bi-directional operation, and low capacitance of around 1 pF, providing robust ESD protection against electrostatic discharges up to ±10 kV. Suitable for sensitive electronic devices, it offers a compact form factor with excellent response time, ensuring circuit safety and compliance with industry standards. Ideal for portable and space-constrained systems requiring reliable ESD and transient overvoltage protection.
ROHM RSB12JS2FHT2R ESD Protection Diode Specifications:
- Type: ESD Protection Device
- Construction: Silicon Epitaxial Planar
- Form Factor: Ultra small mold type (EMD6)
- Land Size: 0.25 x 0.1 mm
- Capacitance: approximately 1 pF at 1 MHz, 0 V
- Maximum Junction Temperature: 150°C
- Storage Temperature Range: -55°C to +150°C
- Reverse Voltage (Vz): 9.6 to 14.4 V at 5 mA
- Reverse Current (Ip): max 0.10 A at 9 V
- Maximum Peak Current: not specified, suitable for transient events
- Absolute Maximum Ratings: Junction temperature 150°C, Storage temperature -55°C to +150°C
- Application: ESD and transient voltage protection for high-speed digital and RF circuits
- Manufactured by ROHM, compliant with JEITA SC-75A size standard
- Electrostatic Sensitive Product: Handle with proper grounding and static precautions

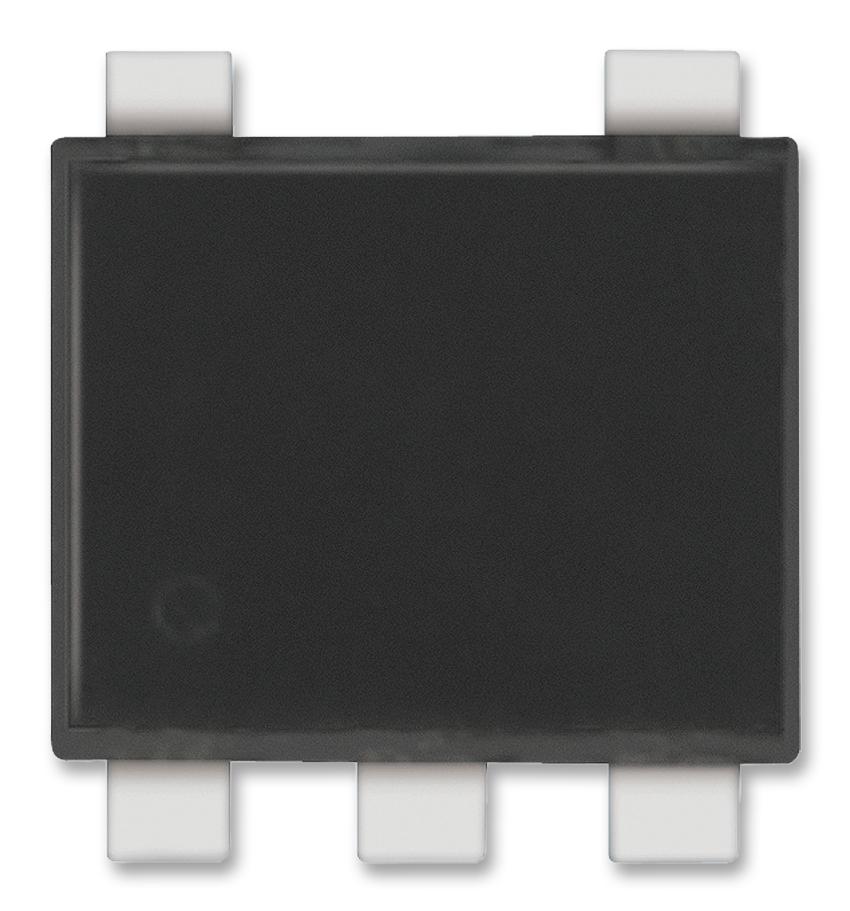

Buy the ROHM Series ESD Protection Device RSB12JS2FH: RSB12JS2FH
Secure your electronic circuits with the ROHM RSB12JS2FH ESD Protection Diode, offering exceptional low-capacitance, bi-directional transient safeguarding. Its ultra-compact mold design fits easily into space-constrained environments, providing reliable electrostatic discharge protection for sensitive high-speed digital and RF applications. Designed to meet industry standards, this diode ensures circuit stability, minimizes interference, and enhances durability against electrostatic shocks. Purchase online today to safeguard your valuable devices with proven ROHM quality and trusted performance.
Buy ROHM RSB12JS2FH now and experience unmatched reliability and transient voltage protection in high-speed digital circuits.
Frequently Asked Questions
Where can I buy ROHM RSB12JS2FHT2R?
You can click on the BUY or RFQ button to purchase RSB12JS2FHT2R from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RSB12JS2FHT2R?
You can download the RSB12JS2FHT2R datasheet or visit the ROHM website for support.
Who is the manufacturer of RSB12JS2FHT2R?
ROHM
