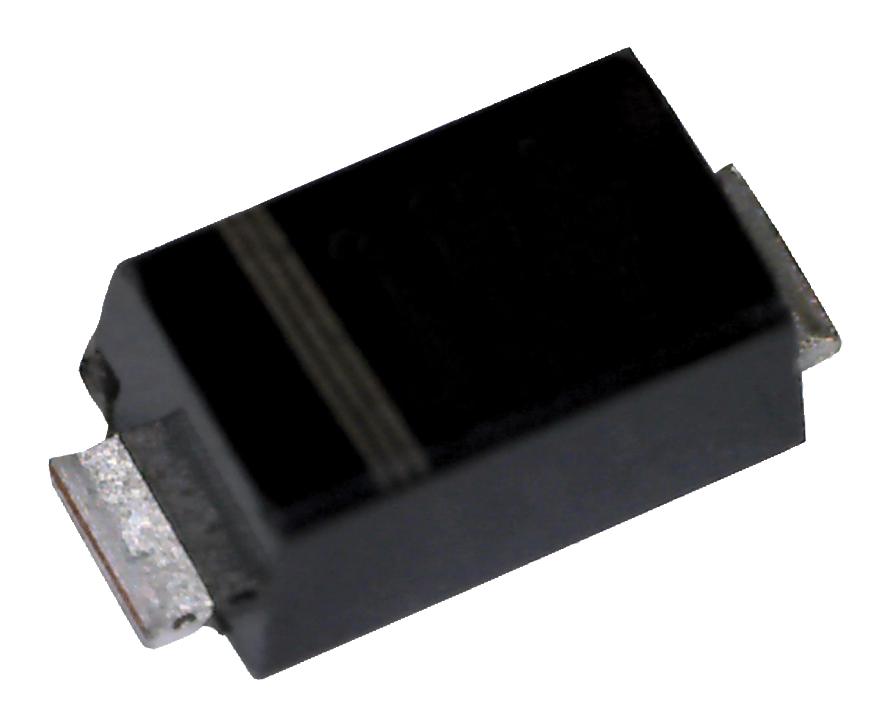

ROHM RSB68SMFHT2N ESD Protection Diode
The RSB6.8SMFH is a bi-directional ESD protection diode designed for electrostatic discharge protection in electronic circuits. Featuring ultra-small mold type construction, it offers high reliability and robust performance under ESD test conditions up to 30kV without failure. Constructed with silicon epitaxial planer technology, it provides a zener voltage range of approximately 5.78V to 7.82V, with capacitance around 30pF at 0V, suitable for safeguarding sensitive components from transient voltage spikes. The diode's JEDEC SOD-523 package enables efficient surface-mount assembly, making it ideal for compact and portable electronic devices requiring reliable ESD suppression.
ROHM RSB68SMFHT2N ESD Protection Diode Specifications:
- Package Type: SOD-523 (JEDEC standard)
- Zener Voltage Range: 5.78V to 7.82V at 1mA
- Capacitance: approximately 30pF (Va=0V, f=1MHz)
- Reverse Current: Max 0.5μA at 3.5V
- Peak Pulse Power: 10W (tp=10×1000μs)
- Power Dissipation: 150mW
- Junction Temperature: Max 150°C
- Storage Temperature Range: -55°C to +150°C
- Operation Temperature Range: -55°C to +150°C
- Build: Silicon epitaxial planer technology, ultra-small mold type
- ESD Protection Level: Up to 30kV (air discharge)
- Voltage Tolerance: ±0.2V (dispersion map)
- Assembly: Automatic chip-mounter compatible
- RoHS Compliant
Buy the ROHM RSB6.8SMFH – Reliable ESD Protection Diode for Industrial Applications
Purchase the ROHM RSB6.8SMFH ESD protection diode online today to ensure reliable electrostatic discharge suppression for your sensitive electronic components. This ultra-compact, bi-directional diode offers high reliability and excellent ESD protection up to 30kV. Designed with silicon epitaxial planer technology, it delivers a low capacitance of around 30pF and a maximum junction temperature of 150°C. Its small SOD-523 package enables easy surface-mount assembly, ideal for space-constrained portable electronics, industrial control systems, and high-reliability applications requiring superior transient voltage suppression.
Get ROHM RSB6.8SMFH today—built for electrostatic discharge resilience and long-lasting circuit protection.
Frequently Asked Questions
Where can I buy ROHM RSB68SMFHT2N?
You can click on the BUY or RFQ button to purchase RSB68SMFHT2N from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RSB68SMFHT2N?
You can download the RSB68SMFHT2N datasheet or visit the ROHM website for support.
Who is the manufacturer of RSB68SMFHT2N?
ROHM
