ROHM RSD160P05TL Power MOSFET
The RSD160P05 is a low on-resistance, fast-switching P-channel MOSFET suitable for switching applications and inner circuit designs. It features a drain-source voltage of 45V, continuous drain current of 16A, and power dissipation of 20W. The device includes an internal ESD protection diode, body diode, and exhibits minimal gate-source leakage. Its thermal characteristics include a channel-to-case resistance of 6.25°C/W, making it ideal for efficient power management in electronic circuits. Suitable for industrial, automation, and control systems demanding reliable MOSFET performance.
ROHM RSD160P05TL Power MOSFET Specifications:
- Drain-source voltage: 45 V
- Gate-source voltage: ±20 V
- Continuous drain current: 16 A
- Pulsed drain current: 32 A
- Power dissipation: 20 W
- Channel temperature: 150°C
- Storage temperature: -55°C to +150°C
- Thermal resistance channel to case: 6.25°C/W
- Gate threshold voltage: -1.0 to -3.0 V
- Static drain-source on-resistance: 45 - 63 mΩ
- Input capacitance: 2000 pF
- Output capacitance: 250 pF
- Gate charge: 16.0 nC
- Forward voltage of body diode: 1.2 V

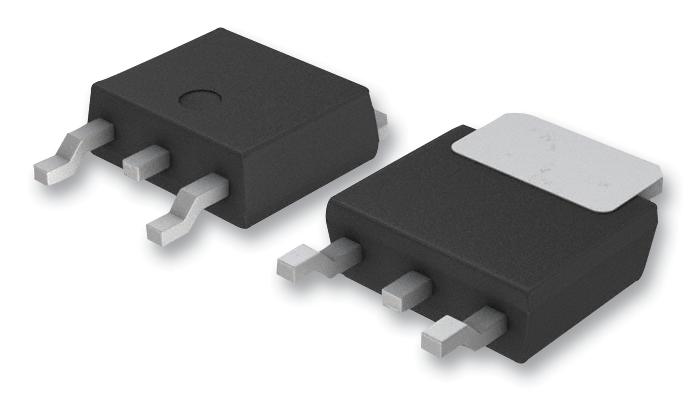

Buy the Buy ROHM RSD160P05 Part Number RSD160P05 Online
Get the RSD160P05 P-channel MOSFET from ROHM online today. With low on-resistance, high continuous current capacity, and robust thermal characteristics, this device ensures efficient power switching in industrial, automation, and control systems. Its internal protection features and fast switching speed simplify circuit design, making it a perfect choice for applications demanding high reliability and performance. Purchase online and enhance your electronic projects with superior power management solution.
Buy ROHM RSD160P05 now and experience unmatched reliability and performance in power switching applications.
Frequently Asked Questions
Where can I buy ROHM RSD160P05TL?
You can click on the BUY or RFQ button to purchase RSD160P05TL from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RSD160P05TL?
You can download the RSD160P05TL datasheet or visit the ROHM website for support.
Who is the manufacturer of RSD160P05TL?
ROHM
