ROHM SCS308AHGC9 Silicon Carbide Schottky Diode
The SCS308AHG is a high-speed silicon carbide Schottky barrier diode designed for efficient power switching. Featuring a reverse voltage of 650V and an 8A continuous forward current, it offers shorter recovery times, reduced temperature dependence, and high surge current capability. Its epitaxial planar construction ensures reliability in demanding applications. Ideal for power rectification, pulse circuits, and high-frequency switching, this diode operates within a junction temperature of up to 175°C. Its robust performance makes it suitable for advanced power management systems requiring high efficiency and switching speed.
ROHM SCS308AHGC9 Silicon Carbide Schottky Diode Specifications:
- Reverse voltage (repetitive peak): 650 V
- DC Reverse voltage: 650 V
- Continuous forward current: 8 A at 135°C
- Surge non-repetitive current: 67 A at 10ms
- Repetitive forward current: 36 A
- Total power dissipation: 57 W
- Junction temperature: 175°C
- Reverse recovery time: 15 ns
- Capacitance: 36 pF at 650 V, 1MHz
- Total capacitance charge: 21 nc
- Thermal resistance junction-ambient: 2.6 °C/W
- Operating temperature range: -55°C to +175°C

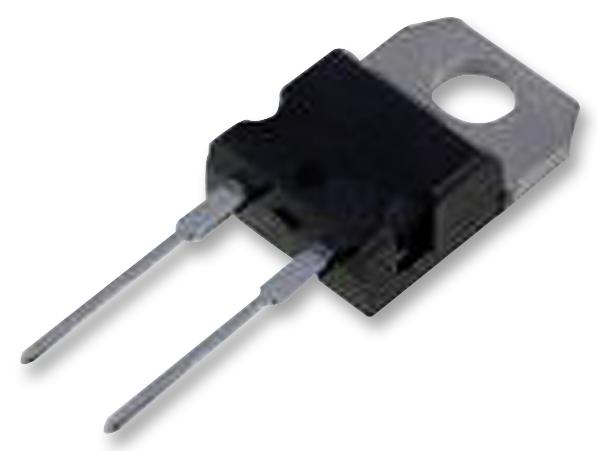

Buy the Buy Rohm SCS308AHG Part Number SCS308AHG Online
Order the Rohm SCS308AHG online today to empower your power management system with a high-speed, reliable silicon carbide Schottky diode. Designed for fast switching, high surge current capability, and low temperature dependence, this diode enhances efficiency in power rectification, pulse circuits, and high-frequency applications. With a maximum reverse voltage of 650V, 8A continuous current, and a junction temperature up to 175°C, it ensures durability and superior performance in demanding environments. Buy now and upgrade your power solutions effortlessly.
Buy Rohm SCS308AHG now and experience unmatched reliability and high-speed switching performance for your power circuitry.
Frequently Asked Questions
Where can I buy ROHM SCS308AHGC9?
You can click on the BUY or RFQ button to purchase SCS308AHGC9 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part SCS308AHGC9?
You can download the SCS308AHGC9 datasheet or visit the ROHM website for support.
Who is the manufacturer of SCS308AHGC9?
ROHM
