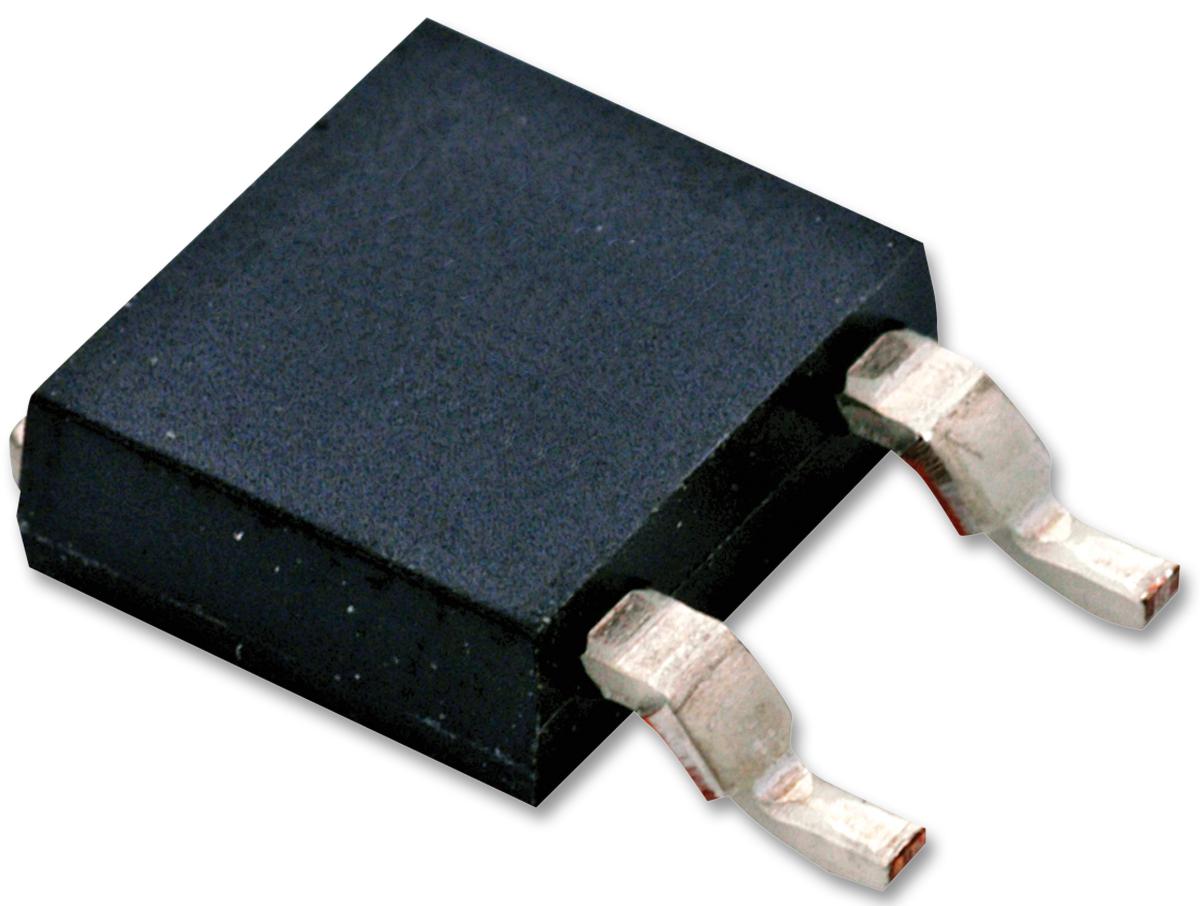

ROHM SCT2750NYTB High-Voltage SiC Power MOSFET
The SCT2750NY is an advanced N-channel Silicon Carbide power MOSFET designed for high-voltage, high-current applications such as power supplies and motor drives. Featuring a low on-resistance of approximately 750 milliohms, it provides efficient switching with fast response times and robust thermal performance. With a drain-source voltage rating of 1700V, it ensures reliable operation under demanding conditions. The device includes a feature-rich design with simple drive requirements, a body diode for reverse conduction, and RoHS-compliant, Pb-free plating. Suitable for critical power management systems requiring high efficiency and durability.
ROHM SCT2750NYTB High-Voltage SiC Power MOSFET Specifications:
- Drain-Source Voltage: 1700 V
- Continuous Drain Current: 5.9 A at 25°C, 4 A at 100°C
- Pulsed Drain Current: 14 A
- Gate-Source Voltage: -6 to 22 V
- Power Dissipation: 57 W
- Junction Temperature: 175°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance (Junction-Case): 2.04 to 2.65 °C/W
- Body Diode Forward Current: 59 A
- Reverse Recovery Time: 26 ns
- Gate Charge: 17 nC (total), 5 nC (gate-source), 6.5 nC (gate-drain)
- Size: TO-268-2L package with dimensions approximately 15.95 x 15.45 x 0.30 mm
- RoHS Compliant, Pb-free lead plating
- Designed for high-efficiency power switching applications
Buy the Buy ROHM SCT2750NY Part Number 1700V Power MOSFET Online
Purchase the ROHM SCT2750NY high-voltage silicon carbide MOSFET online for your power supply or motor drive project. Featuring a drain-source voltage of 1700V, low on-resistance of 750mΩ, and fast switching capabilities, this device ensures high efficiency and durability. Its robust thermal performance, a thermal resistance of approximately 2.04 to 2.65 °C/W, and RoHS compliance make it ideal for demanding electrical systems. Order now and experience superior power management with this reliable, high-voltage switching component designed to meet your engineering needs.
Order your ROHM Series SCT2750NY high-voltage SiC MOSFET today and enhance your power projects with reliable, efficient switching performance.
