ROHM SCT3030ARC14 High-Voltage SiC Power MOSFET
The SCT3030AR is a high-performance N-channel silicon carbide (SiC) power MOSFET designed for efficient switching in high-voltage applications. Featuring a 650V drain-source voltage rating, low on-resistance of 30 mΩ, and a continuous drain current of 70A at 25°C, it ensures reliable operation in solar inverters, DC/DC converters, and motor drives. Its fast switching speed, low gate charge, and excellent thermal characteristics make it suitable for energy-efficient, high-power systems, with RoHS compliance and lead-free packaging for environmentally conscious use.
ROHM SCT3030ARC14 High-Voltage SiC Power MOSFET Specifications:
- Drain-Source Voltage: 650 V
- Continuous Drain Current: 70 A at 25°C
- Pulsed Drain Current: 175 A
- On-Resistance: 30 mΩ (typical)
- Gate Threshold Voltage: 2.7 to 5.6 V
- Gate-Source Voltage: -4 to +22 V
- Junction Temperature Range: -55°C to +175°C
- Package: TO-247-4L
- RoHS Compliant, Lead-Free
- Thermal Resistance, Junction to Case: 0.44 to 0.57°C/W
- Reverse Recovery Charge: 702 nC
- Switching Losses: Eon 159 uJ, Eoff 87 uJ
- Body Diode Forward Voltage: 3.2V at 27A
- Storage Temperature Range: -55°C to +175°C

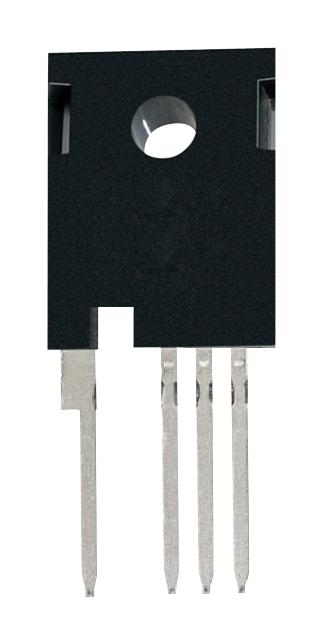

Buy the Buy ROHM SCT3030AR Part Number SCT3030ARC14 Online
Acquire the ROHM SCT3030AR high-voltage SiC power MOSFET online today. Its 650V drain-source rating, 70A continuous current, low on-resistance of 30 mΩ, and fast switching capabilities make it perfect for solar inverters, motor drives, and DC/DC converters. With RoHS compliance and lead-free packaging, it ensures environmentally friendly operation. Enhance your energy systems with this energy-efficient, reliable, and high-performance semiconductor device designed for demanding high-power applications. Get yours now for optimal system efficiency and durability.
Order your ROHM SeriesSCT3030AR power MOSFET today and enhance your high-voltage energy-efficient projects with reliable switching performance.
Frequently Asked Questions
Where can I buy ROHM SCT3030ARC14?
You can click on the BUY or RFQ button to purchase SCT3030ARC14 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part SCT3030ARC14?
You can download the SCT3030ARC14 datasheet or visit the ROHM website for support.
Who is the manufacturer of SCT3030ARC14?
ROHM
