ROHM SMLD15VWT86C Surface Mount LED
The SML-D15VWT86C series is a high-brightness, reliable surface mount LED specifically designed for reflow soldering, featuring a compact size of 1.6 x 0.8mm. It is AEC-Q101 qualified, ensuring high quality standards for automotive and industrial applications. These LEDs offer excellent optical and electrical characteristics, including stable luminous intensity, forward voltage, and long lifespan under various operating conditions. Their soft silicon resin packaging requires careful handling during mounting to prevent damage, with recommended soldering and storage procedures detailed in the datasheet.
ROHM SMLD15VWT86C Surface Mount LED Specifications:
- Size: 1.6 x 0.8mm, thickness: 0.55mm
- Color: Various including Red, Orange, Yellow, Green, Blue, White
- Recommended Solder Pattern: 0.85mm
- Operating Temperature: -40°C to +100°C
- Storage Temperature: -40°C to +100°C
- Reflow Soldering: Max 2 times, peak temperature 260°C for 10 seconds
- Luminous Intensity: Ranges approximately from 20mA to 112mA forward current depending on color
- Forward Voltage: Typical around 1.6V to 3.33V according to color
- Absolute Max Ratings: Current up to 90 mA, Power 71 mW
- Mounting: Surface mount with careful handling to avoid mechanical stress
- Compliance: AEC-Q101 qualified, RoHS compliant
- Package: Moisture-proof packing, desiccant included, 3,000 pcs per reel
- Handling: Store below 70% RH, bake at 60°C for 12-24 hours if expired or moisture indicators change
- Electrical Characteristics Curves: Forward current, luminous intensity, forward voltage, viewing angle, and derating curves available in datasheet

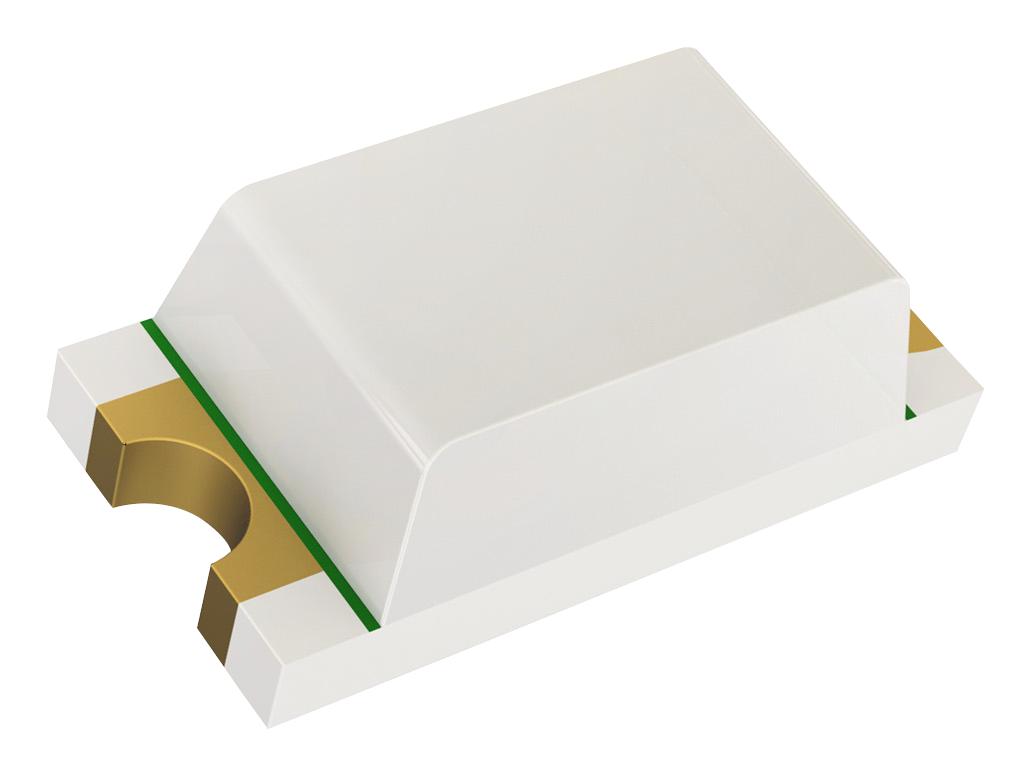

Buy the Buy ROHM SML-D15VWT86C Part Number SMLD15VWT86C Online
Purchase the ROHM SML D15VWT86C high-brightness surface mount LED online today. Ideal for compact, reliable lighting solutions in automotive and industrial applications. This top-quality LED features a small size of 1.6 x 0.8mm, excellent optical characteristics, and is AEC-Q101 qualified. With moisture-proof packaging and clear soldering guidelines, it ensures easy assembly and long-term performance. Choose your color and quantity, and enjoy fast delivery from authorized distributors, elevating your project’s reliability and brightness easily and securely.
Buy ROHM SMLD15VWT86C now and experience unmatched reliability and performance in high-brightness surface mount LEDs for automotive and industrial lighting.
Frequently Asked Questions
Where can I buy ROHM SMLD15VWT86C?
You can click on the BUY or RFQ button to purchase SMLD15VWT86C from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part SMLD15VWT86C?
You can download the SMLD15VWT86C datasheet or visit the ROHM website for support.
Who is the manufacturer of SMLD15VWT86C?
ROHM
