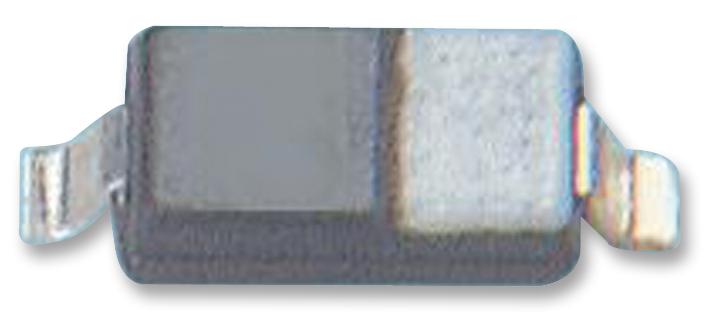

ROHM UDZUFHTE1756B ESD Protection Diode
The UDZU5.6BFH is a low capacitance ESD protection diode designed for electrostatic discharge protection in electronic circuits. It features a small mold type suitable for automatic chip mounting, with construction based on silicon epitaxial planer technology. The diode offers high reliability with specifications including maximum power dissipation of 200 mW, junction temperature range from -55°C to +150°C, and ESD tolerance up to 30KV. Its compact JEDEC SOD-323 package makes it ideal for portable and surface-mount applications requiring fast response to electrostatic shocks, ensuring circuit integrity and safety.
ROHM UDZUFHTE1756B ESD Protection Diode Specifications:
- Package: JEDEC SOD-323
- Maximum Power Dissipation: 200 mW
- Junction Temperature Range: -55°C to +150°C
- Storage Temperature: -55°C to +150°C
- ESD Tolerance: Up to 30KV (Electrostatic Discharge)
- Capacitance between terminals: Very low, typically a8pF at 1MHz VR=0V
- Transient thermal impedance: 22(°C/W)
- Reverse current: 118.29pA (average), dispersion around this value
- On glass-epoxy substrate, high reliability and small form factor
- Designed for automatic mounting with chip-mounter compatibility
- Construction based on silicon epitaxial planer technology for fast response
- Suitable for portable, consumer, and industrial electronic devices
Buy the ROHM Series UMD2 Low Capacitance ESD Protection Diode: UDZUFHTE1756B
Protect your electronic devices with the ROHM Series UMD2 ESD protection diode. Featuring ultra-low capacitance, high electrostatic discharge tolerance up to 30KV, and compact SOD-323 packaging, it ensures circuit safety and reliability. Ideal for portable electronics and sensitive circuit applications, this diode responds rapidly to electrostatic shocks, preventing damage and maintaining performance. Easy to mount with automatic chip-mounter compatibility, it enhances your manufacturing process while providing peace of mind with proven durability and high-quality standards. Upgrade your circuit protection today with this essential component.
Order your ROHM Series UMD2 UDZUFHTE1756B today and secure your circuits with reliable electrostatic discharge protection.
Frequently Asked Questions
Where can I buy ROHM UDZUFHTE1756B?
You can click on the BUY or RFQ button to purchase UDZUFHTE1756B from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part UDZUFHTE1756B?
You can download the UDZUFHTE1756B datasheet or visit the ROHM website for support.
Who is the manufacturer of UDZUFHTE1756B?
ROHM
