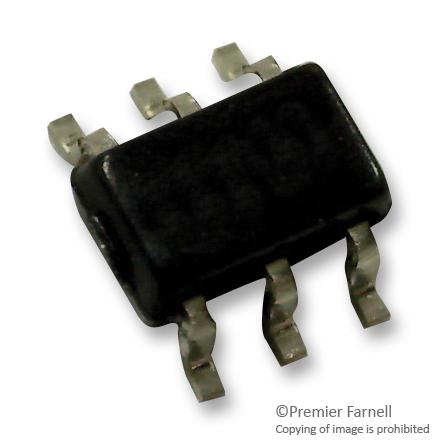

ROHM UMH9NTN Digital Transistor
The UMH9N is a complex digital transistor featuring built-in biasing resistors, two DTC114Y chips in one package, and designed for inverter, interface, and driver circuits. It simplifies circuit design by enabling configuration without external bias resistors, thanks to its integrated thin-film resistors with complete isolation, eliminating parasitic effects. The device operates with Vcoc of 50V, supports up to 100mA collector current, and features RoHS compliance. Its robust construction ensures reliable operation in high-temperature environments up to 150°C, making it ideal for digital switching applications.
ROHM UMH9NTN Digital Transistor Specifications:
- Voc: 50V
- Loqmax: 100mA
- Collector Current: 150mA (total per device)
- Power Dissipation: 120mW per element
- Operating Temperature Range: -55°C to +150°C
- Input Voltage: -6 to +40 V
- Output Voltage: 0.1 to 0.3 V
- Input Current: 0.88 mA
- DC Current Gain: Typ. 250 - Max. varies
- Transition Frequency: 250 MHz
- Package Types: EMT6 (Size: 16x16 mm), UMT6 (Size: 21x10 mm), SMT6 (Size: 25x20 mm)
- Leading Material: RoHS compliant, Lead-free
- Insulation: Complete isolation of thin-film resistors, eliminating parasitic effects
- Thermal Resistance and Ratings: Junction temperature up to 150°C, storage range -55°C to +150°C
Buy the Buy Rohm Digital Transistor Part Number UMH9NTN Online
Order the Rohm UMH9NTN digital transistor online today. This dual-chip device offers built-in bias resistors, simplifying circuit design for inverter, interface, and driver circuits. With high-temperature operation up to 150°C, low power dissipation, and RoHS compliance, it ensures dependable performance in various electronic applications. Get quick delivery and enhance your project’s reliability by purchasing online now. The compact package and integrated resistors make it ideal for space-constrained digital circuit design. Don't miss out on this essential component.
Buy Rohm UMH9NTN now and experience unmatched reliability and performance in digital switching applications.
Frequently Asked Questions
Where can I buy ROHM UMH9NTN?
You can click on the BUY or RFQ button to purchase UMH9NTN from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part UMH9NTN?
You can download the UMH9NTN datasheet or visit the ROHM website for support.
Who is the manufacturer of UMH9NTN?
ROHM
