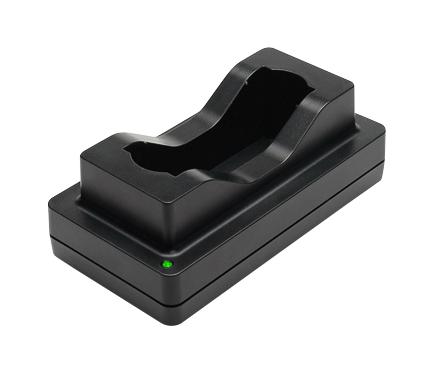

RRC POWER SOLUTIONS RRCSMBMBC Battery Charger
The RRC-SMB-MBC is a 50W standard battery charger designed for smart batteries with footprints such as RRC204x, RRC205x, and RRC203x. It features optimized charging processes for longer cycle life and faster charging, with simple plug-and-play operation. Suitable for medical, industrial, and consumer applications, it includes comprehensive safety protections, efficiency rating of approximately 95%, and is convection cooled for reliability. External power supply provides worldwide use, and the device supports multiple battery recognition and indicator statuses for efficient operation.
RRC POWER SOLUTIONS RRCSMBMBC Battery Charger Specifications:
- Voltage range: 19.00 - 26.00VDC
- Current: 2.80A max.
- Power: 50.00W
- Input voltage: 100.00 - 240.00VAC
- Input current: 1.70A max.
- Output voltage: 19.00VDC (65W max.)
- Output current range: 0 - 4.80A
- Efficiency: ~95% at 100% load
- Protection: Short circuit, over temperature, over current
- Housing dimensions: 120 x 64 x 43mm
- Weight: 110g (excluding power supply)
- Operating temperature: 0°C to 40°C
- Non-operating temperature: -10°C to 70°C
- Humidity: 5% to 95% non-condensing
- Certifications: CE, CB, RoHS, WEEE
- Cooling: convection cooled
Buy the RRC Series MBC Battery Charger: RRCSMBMBC
Get the RRC Series MBC battery charger online now and experience fast, safe, and efficient charging for smart batteries used in medical, industrial, and consumer devices. This 50W charger features optimized charging cycles, simple plug-and-play operation, safety protections against short circuits and over-temperature, and a worldwide compatible external power supply. Its robust design ensures long cycle life, quick charging, and reliability, making it an essential choice for professional and personal use. Purchase today to ensure continuous power and maximize your device uptime with high-quality, certified charging solutions.
Order your RRC Series MBC battery charger today and enjoy reliable, efficient power solutions for your smart battery applications.
