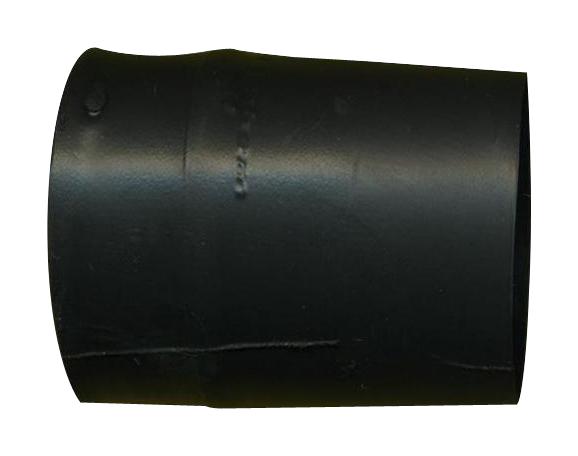

Raychem TE Connectivity 202K12125L0 Heat-Shrink Molded Boots
Instalite Molded Boots are lightweight, semi-rigid, abrasion-resistant heat-shrink boots designed for aerospace, defense, and marine applications. They offer up to 30% weight savings compared to standard boots, while maintaining high fluid resistance, heat resistance, and electrical performance. These boots are compatible with various fluid environments like aviation fuels and hydraulic fluids, ensuring durability under extreme temperature conditions, including heat aging and low-temperature flexing. Easy and quick to install with specialized tools, they ensure reliable, long-term protection of wiring and components in demanding environments.
Raychem TE Connectivity 202K12125L0 Heat-Shrink Molded Boots Specifications:
- Tensile strength: 10 MPa (1450 psi) min.
- Ultimate elongation: 400% min.
- Specific gravity: 1 (+0.05)
- Heat aging (168 hr @ 160°C): 400% min. ultimate elongation
- Heat shock (4 hr @ 215°C): 400% min. ultimate elongation
- Low-temperature flexing (4 hr @ -75°C): No cracking
- Flammability burn time: 120 seconds max
- Electrical strength: 15 MV/m (4.6 MV/ft)
- Fluid resistance: After 24-hr immersion in aviation fuel, hydraulic fluids, lubricating oil, cleaning fluids, deicers: tensile strength ≥8 MPa (1160 psi), elongation ≥300%
- Dimensions vary per part number but are designed for rapid installation, with typical system setup times of 1 minute 41 seconds for 25L boots and 2 minutes 24 seconds for standard boots.
- Made from modified elastomers, suitable for high-temperature and fluid-resistant environments, with quick heat-shrink installation using heat gun.
Buy the Buy TE Connectivity Instalite Molded Boots Part Number 202K12125L0 Online
Enhance your aerospace, defense, or marine wiring systems with lightweight, abrasion-resistant heat-shrink molded boots. Designed for quick, easy installation, these boots provide superior fluid and heat resistance, ensuring long-term durability and protection under extreme conditions. They are up to 30% lighter than standard options, saving weight without sacrificing performance. Ideal for demanding environments, they help reduce installation time and increase operational reliability. Secure your wiring with high-quality, precision-engineered boots available to order online today.
Buy TE Connectivity Instalite Molded Boots now and experience unmatched reliability and high-performance protection for aerospace, defense, and marine wiring.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 202K12125L0?
You can click on the BUY or RFQ button to purchase 202K12125L0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 202K12125L0?
You can download the 202K12125L0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 202K12125L0?
Raychem TE Connectivity
