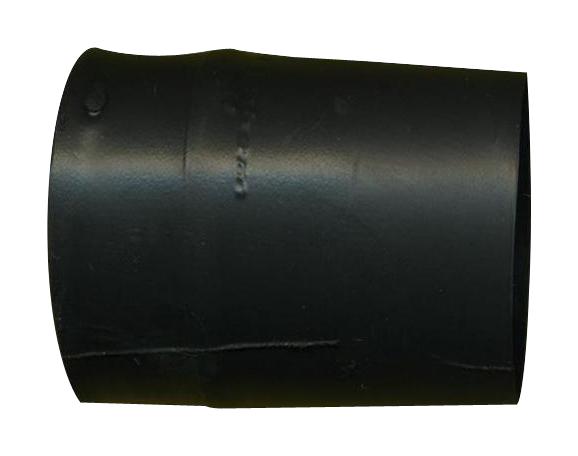

Raychem TE Connectivity 202K13225L0 Installite Molded Boots
Installite molded boots are lightweight, durable heat-shrink boots designed for aerospace, marine, and defense applications. They offer up to 30% weight savings over standard boots, combining high-temperature fluid resistance, abrasion resistance, and ease of installation. Constructed from modified elastomers, these semi-rigid boots withstand extreme thermal conditions, low-temperature flexing, and fluid exposure, making them ideal for critical environments. The boots feature robust mechanical properties like 10 MPa tensile strength and 400% elongation, ensuring long-term durability in demanding settings while reducing installation time with specialized tools.
Raychem TE Connectivity 202K13225L0 Installite Molded Boots Specifications:
- Tensile strength: 10 MPa (1450 psi) minimum
- Ultimate elongation: 400% minimum
- Specific gravity: 1 (+0.05)
- Heat aging (168 hr @ 160°C): 400% minimum elongation
- Heat shock (4 hr @ 215°C): 400% minimum elongation
- Low-temperature flexing (4 hr @ -75°C): No cracking
- Flammability burn time: 120 seconds max
- Electrical strength: 15 MV/m (4.6 MV/ft)
- Fluid resistance: After 24 hr immersion in aviation fuel, hydraulic fluids, lubricating oil, cleaning fluids, deicers: ≥8 MPa tensile strength, ≥300% elongation
- Material: Modified elastomers, abrasion-resistant, semi-rigid design
- Application: Marine, aerospace, defense
Buy the Raychem Series Installite Heat-Shrink Boots: 202K13225L0
Experience the superior performance of Raychem Installite molded boots, engineered for aerospace, defense, and marine applications. Up to 30% lighter than traditional options, these boots deliver exceptional heat, fluid, and abrasion resistance, ensuring long-term reliability. Easy to install with specialized tools, they significantly reduce assembly time while maintaining high mechanical properties like 10 MPa tensile strength and 400% elongation. Trust these boots for demanding environments requiring durability, flexibility, and precise fit, making your application safer and more efficient.
Get Raychem Installite heat-shrink boots today—built for aerospace durability and easy installation in demanding environments.
