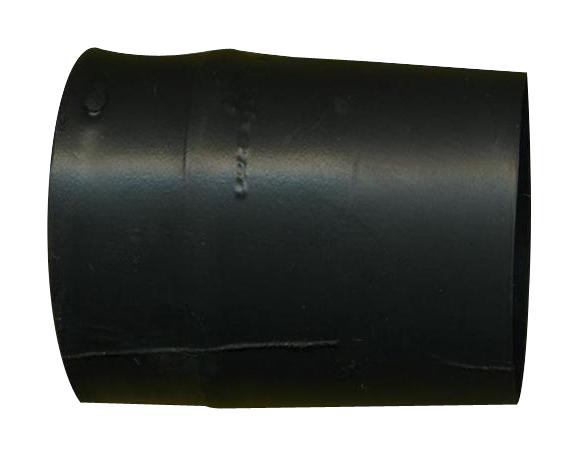

Raychem TE Connectivity 202K16325L0 Heat-shrink Boots
Instalite Molded Boots are lightweight, semi-rigid, abrasion-resistant heat-shrink boots designed for aerospace, defense, and marine applications. Up to 30% lighter than standard boots, they provide excellent fluid resistance, high-temperature stability, and long-term durability. These boots feature fast installation times, with system 25L boots taking just 1 minute 41 seconds. Suitable for fluid protection in harsh environments, they maintain their mechanical and electrical stability after exposure to heat aging, low temperatures, and immersion in various fluids such as aviation fuel and hydraulic oils.
Raychem TE Connectivity 202K16325L0 Heat-shrink Boots Specifications:
- Tensile strength: 10 MPa (1450 psi) min.
- Ultimate elongation: 400% min.
- Specific gravity: 1 (+0.05)
- Heat aging (168 hr @ 160°C): 400% min. elongation
- Heat shock (4 hr @ 215°C): 400% min. elongation
- Low-temperature flexing (4 hr @ -75°C): No cracking
- Flammability burn time: 120 seconds max
- Electrical strength: 15 MV/m (4.6 MV/ft)
- Immersion in fluids (24hr): ≥8 MPa (1160 psi) tensile strength, ≥300% elongation
- Application suited for aerospace, defense, marine environments with high fluid resistance and heat stability.
Buy the Raychem Series Instalite Heat-Shrink Boots: 202K16325L0
Order Raychem Instalite boots online now—designed for aerospace, defense, and marine uses. These lightweight, abrasion-resistant boots offer superior fluid and heat resistance, ensuring long-term durability. With fast installation times and reliable performance after exposure to extreme temperatures and fluids, they simplify your assembly process. Whether for high-temperature fluid lines or harsh environments, these boots provide an easy, efficient solution to protect and insulate critical components, ensuring safety and performance across demanding applications.
Get Raychem Instalite 202K16325L0 today—built for high fluid resistance and quick installation in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 202K16325L0?
You can click on the BUY or RFQ button to purchase 202K16325L0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 202K16325L0?
You can download the 202K16325L0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 202K16325L0?
Raychem TE Connectivity
