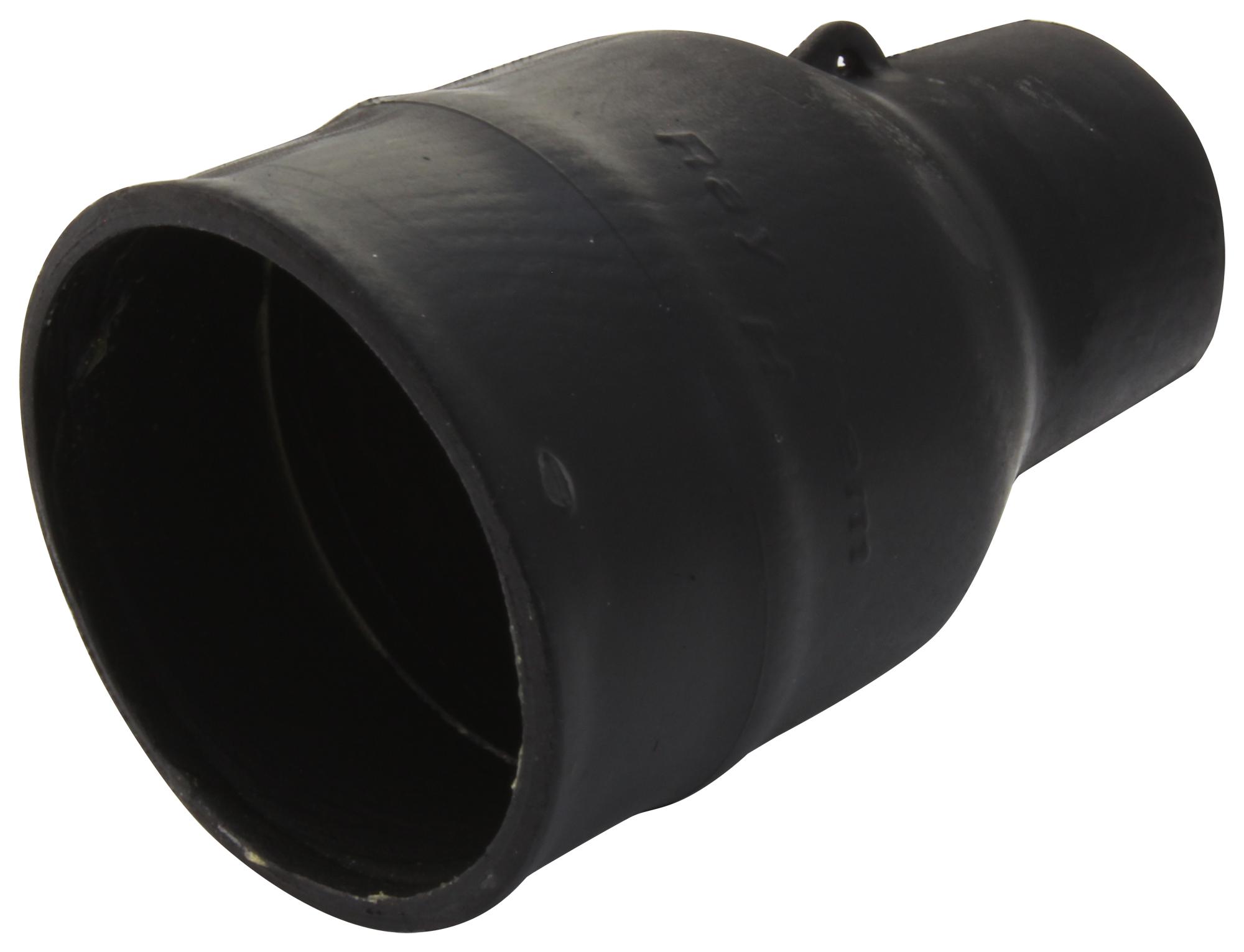

Raychem TE Connectivity 202K23225012250 Heat-Shrinkable Elastomer
The product is a heat-shrinkable, semi-rigid molded protective component made from fluid-resistant modified elastomer. Designed for high-temperature fluid resistance, it offers excellent sealing and strain relief capabilities, especially in military and industrial applications involving cable connectors and harnesses. Suitable for long-term exposure to temperatures from -75°C to 150°C, it shrinks upon heating above 135°C, with an installation temperature of 175°C. Its composition ensures durability against chemicals, abrasion, and high-temperature conditions, making it ideal for demanding environments.
Raychem TE Connectivity 202K23225012250 Heat-Shrinkable Elastomer Specifications:
- Material: Fluid-resistant modified elastomer
- Type: Heat-shrinkable, semi-rigid, molded shape
- Temperature Range: -75°C to 150°C
- Shrink Temperature: Above 135°C
- Recommended Installation Temperature: 175°C
- Resistance: Chemical, abrasion, high-temperature fluids
- Color: Black
- Physical Properties: Tensile strength 15 MPa, elongation 350%, specific gravity 1.5
- Electrical Properties: Electric strength BMVim ASTM D 149
- Flammability: Burn time 120 s max. ASTM D 635
- Immersion Resistance: Compatible with aviation fuel, hydraulic fluid, diesel, gasoline, maintaining tensile strength ≥12 MPa and elongation ≥300%
- Standards: MIL-H-6083, BS G-198-5-DE P, SAE-AS85049, D 412
Buy the Buy TE Heat-Shrinkable Molded Elastomer Part Number 202K23225012250 Online
Order TE heat-shrinkable elastomer parts online today. Engineered for long-lasting performance in demanding environments, these molded components provide excellent sealing, electrical insulation, and strain relief. Ideal for military and industrial applications, they withstand high temperatures from -75°C to 150°C, resist chemicals, abrasion, and fluids. Easy to install by heating above 135°C with recommended installation at 175°C. Trust TE’s quality to ensure your cable harnesses remain protected and durable under the toughest conditions.
Get TE 202K23225012250 today—designed for high-temperature sealing, long-term durability, and reliable cable strain relief.
