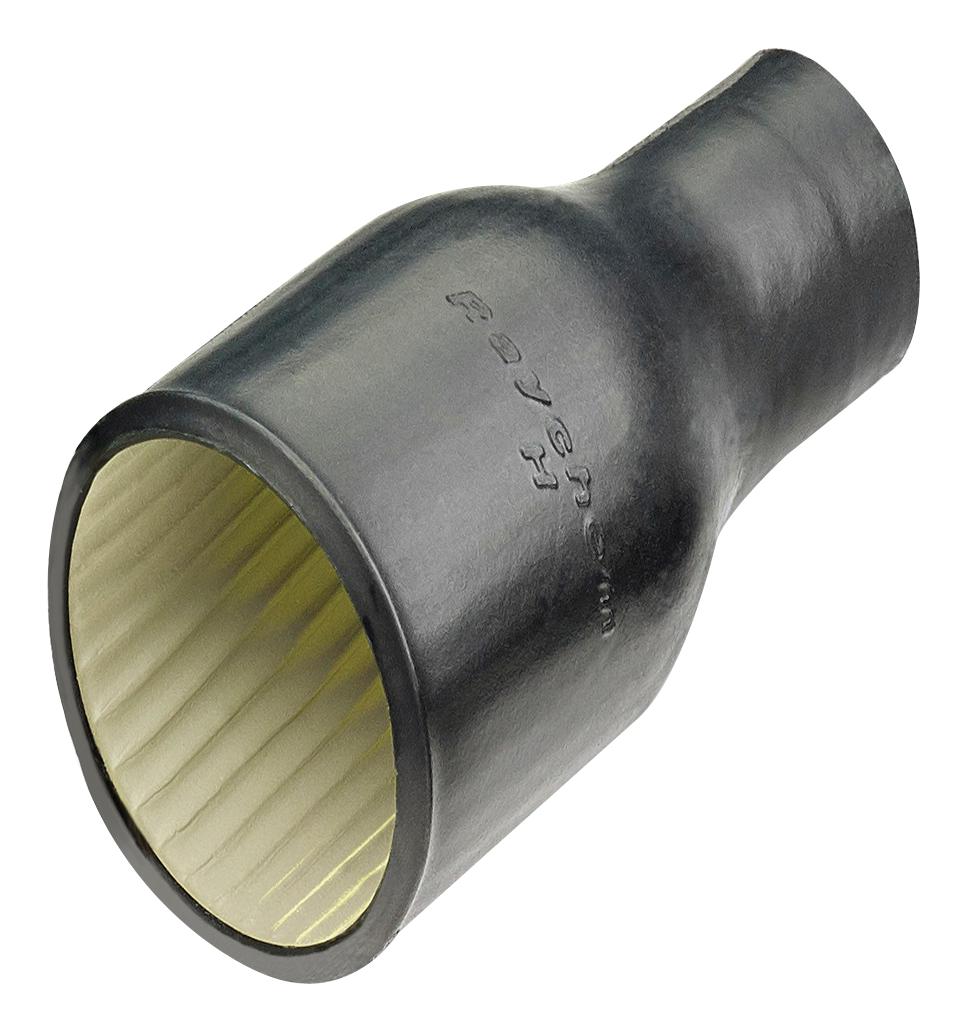

Raychem TE Connectivity 202S14225C0 Shielding Molded Boots
Rayaten Molded Boots with shielding provide rugged, lightweight, and reliable EMI protection up to 70 dB attenuation at 1 GHz, suitable for aerospace, defense, and marine sealed harness applications. These heat-shrinkable molded parts offer excellent strain relief, environmental sealing, and enhanced shielding performance, with options for customization to meet specific EMI attenuation needs. Available in System 25 and System 100 compounds, they are compatible with various installation methods and deliver high performance in demanding environments, ensuring durability and EMI effectiveness for military vehicles, missile systems, and radar equipment.
Raychem TE Connectivity 202S14225C0 Shielding Molded Boots Specifications:
- Screening performance: 3kHz-30 MHz 75 dB min >30 MHz-100 MHz 70 dB min
- Transition performance: 3 kHz-1100 MHz 65 dB min
- Continuous operating temperature: -75°C to +150°C (System 25), -30°C to +105°C (System 100)
- Material: Heat-shrinkable, environmentally sealed, available in System 25 and System 100 compounds
- Dimensions: Various molded shapes including straight, 90°, and 45° configurations
- Installation: Compatible with D-Subminiature connectors and transition molded parts
- Electrical: Meets System 25 and System 100 performance requirements
- Shielding: Up to 70 dB attenuation, EMI continuity from harness braid through the backshell
- Certification: Meets aerospace, defense, and marine environmental standards
- Thermal, mechanical, and environmental tested for reliability over wide temperature ranges
Buy the TE Series Rayaten Shielding: 202S14225C0
Order TE Series Rayaten Shielding Molded Boots today for a reliable, lightweight solution that provides up to 70 dB of EMI attenuation. Designed for aerospace, defense, and marine applications, these rugged molded parts ensure excellent strain relief and environmental sealing. Easy to install with compatibility for various connector types, they meet stringent performance standards across a wide temperature range. Perfect for military vehicles, missile launchers, radar systems, and C4ISR equipment, they deliver long-lasting durability and exceptional EMI performance that keeps your systems protected and secure.
Get TE Series Rayaten Shielding molded boots today—built for precision, durability, and high-performance EMI protection in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 202S14225C0?
You can click on the BUY or RFQ button to purchase 202S14225C0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 202S14225C0?
You can download the 202S14225C0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 202S14225C0?
Raychem TE Connectivity
