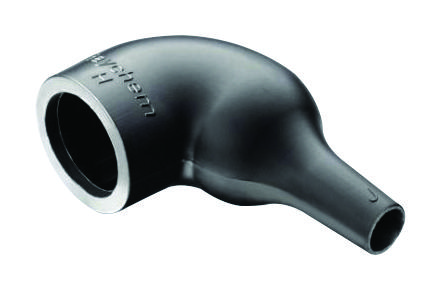

Raychem TE Connectivity 222K15225L0 Heat-Shrink Boot
Raychem Instalite Molded Boots are lightweight, semi-rigid, abrasion-resistant heat-shrink boots designed for aerospace, defense, and marine applications. Made from advanced, fluid-resistant elastomers, these boots offer up to 30% weight savings compared to standard models while maintaining high-temperature fluid and heat resistance. They feature excellent tensile strength, elongation, and low-temperature flexibility, making installation quick and reliable. Suitable for protecting connectors and cables, Instalite boots enhance durability in demanding environments, reducing installation time without compromising performance or safety.
Raychem TE Connectivity 222K15225L0 Heat-Shrink Boot Specifications:
- Tensile strength: 10 MPa (1450 psi) minimum
- Ultimate elongation: 400% minimum
- Specific gravity: 1 (+0.05)
- Heat aging (168 hr @ 160°C): 400% min. elongation
- Heat shock (4 hr @ 215°C): 400% min. elongation
- Low-temperature flexing (4 hr @ -75°C): No cracking
- Flammability burn time: 120 seconds max
- Electrical strength: 15 MV/m (4.6 MV/ft)
- Post-immersion tensile strength: 8 MPa (1160 psi) minimum after 24 hr
- Fluid resistance: Resistant to aviation fuel, hydraulic fluids, lubricating oil, cleaning fluids, deicers
- Application includes marine, aerospace, and defense systems; ensures durability, flexibility, and protection in extreme conditions
Buy the Raychem Series Instalite Heat-Shrink Boots: 222K15225L0
Experience faster, reliable protection with Raychem Instalite Heat-Shrink Boots, model 222K15225L0. Designed for aerospace, defense, and marine applications, these lightweight, abrasion-resistant boots provide excellent fluid resistance and thermal stability. The advanced elastomer materials ensure durability in extreme temperatures, with easy, quick installation reducing operational downtime. Perfect for protecting connectors and cables, Instalite boots deliver superior performance, safety, and long-lasting reliability. Order online today and upgrade your system with high-quality, easy-to-install heat-shrink solutions.
Get Raychem Instalite 222K15225L0 today—built for precision, durability, and easy installation in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 222K15225L0?
You can click on the BUY or RFQ button to purchase 222K15225L0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 222K15225L0?
You can download the 222K15225L0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 222K15225L0?
Raychem TE Connectivity
