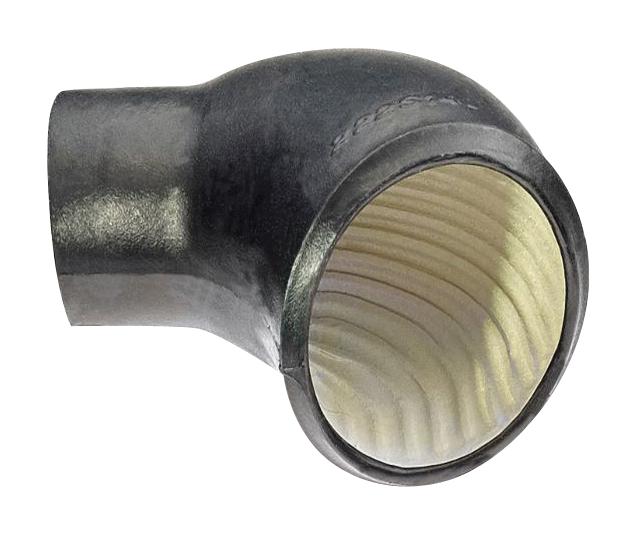

Raychem TE Connectivity 222S14225C0 Molded Shielding Boots
Rayaten molded boots with shielding are rugged, lightweight, and environmentally sealed components designed for aerospace, defense, and marine harness applications. They provide over 70 dB of EMI attenuation up to 1 GHz, ensuring high EMI performance and reliable strain relief. Available in standard System 25 and low fire hazard System 100 compounds, these heat-shrinkable molded parts are customizable to meet specific shielding requirements. Their versatile design supports military vehicles, missile systems, naval shipboard, flight control, radar, and C4ISR systems, offering end-to-end sealing solutions for critical applications.
Raychem TE Connectivity 222S14225C0 Molded Shielding Boots Specifications:
- Screening performance: 3kHz-30 MHz 75 dB min, >30 MHz-100 MHz 70 dB min, trans. 3 kHz-1100 MHz 65 dB min
- Continuous operating temperature: -75°C to +150°C (System 25), -30°C to +105°C (System 100)
- Material: Heat-shrinkable, lightweight polymer with conductive coating tested for EMI shielding
- Flammability: Meets UL 94V-0 standards
- Protection Level: Over 70 dB EMI attenuation up to 1 GHz, ensuring minimal interference
- Environmental Resistance: Sealed, environmentally rugged for aerospace, defense, marine environments
- Application Compatibility: Coated with ultraconductive material, suitable for D-Sub connectors, straight, 90°, 45° molded parts
- Installation: Compatible with standard installation procedures for sealed harnessing
- Standards Compliance: Meets System 25 and System 100 performance requirements
- Compounds: Standard System 25 and low fire hazard System 100, environmentally friendly, halogen-free options
Buy the TE Connectivity 222S14225C0 – Reliable EMI Shielding for Industrial Applications
Order TE Connectivity Molded Shielding Boots with Rayaten shielding today for superior EMI attenuation up to 70 dB, reliable environmental sealing, and easy installation. These rugged, lightweight, heat-shrinkable parts are engineered for aerospace, defense, and marine applications, providing exceptional strain relief and environmental protection. Available in standard compounds with customizable EMI shielding levels, they support critical systems such as missile launchers, naval shipboard, and radar systems. Purchase online now to ensure your harnessing solutions deliver optimal performance and durability.
Get TE Connectivity 222S14225C0 today—designed for precise EMI shielding and durable aerospace, defense, marine harness solutions.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 222S14225C0?
You can click on the BUY or RFQ button to purchase 222S14225C0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 222S14225C0?
You can download the 222S14225C0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 222S14225C0?
Raychem TE Connectivity
