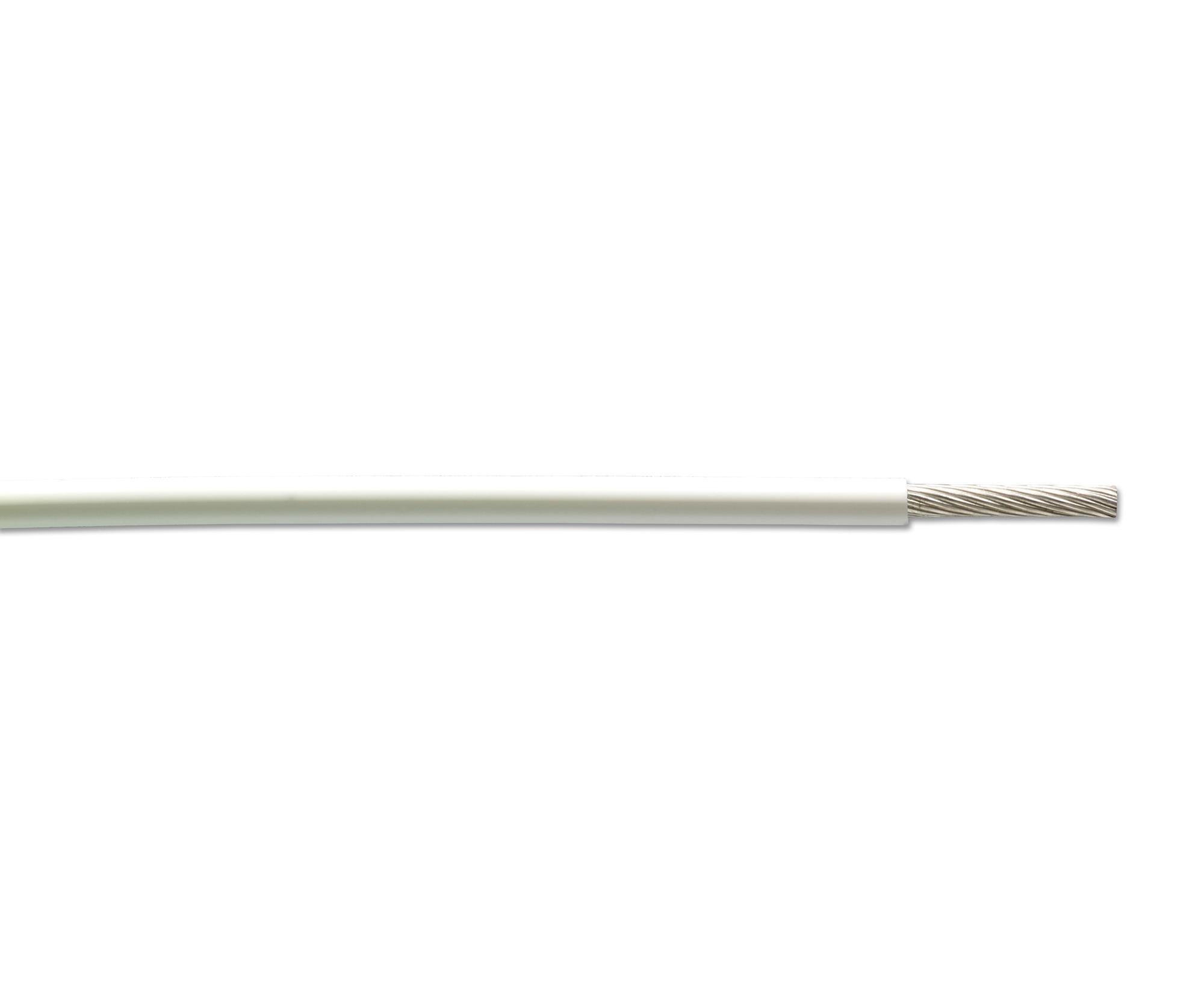

Raychem TE Connectivity 99M0111242L Electrical Connection Wire
This lightweight, modified polyester insulated wire is rated for 600 volts and features a tin-plated copper conductor. It is designed for electrical connectivity requiring high flexibility and durability in industrial and commercial applications. Offered in various strandings and diameters, this wire ensures reliable resistance, insulation, and compliance with industry standards. Ideal for wiring harnesses, control panels, and electrical systems, it provides excellent insulation properties with crosslinked polyester for thermal stability. Suitable for environments demanding high performance with safety and longevity.
Raychem TE Connectivity 99M0111242L Electrical Connection Wire Specifications:
- Conductor Material: Tin-plated copper
- Insulation Material: Crosslinked polyester
- Voltage Rating: 600 volts
- Stranding Diameter: 19/0.10 mm to 37/0.30 mm
- Maximum Resistance: 259 ohms/km to 7.6 ohms/km
- Insulation Thickness: 0.15 mm to 0.20 mm
- Wire Diameter: 0.33 mm to 1.82 mm
- Total Weight: 1.50 kg/km to 27.1 kg/km
- Color Code: According to Mil Std 681 (e.g., White, Black, etc.)
- Approvals: Type 1 of Def Stan 61-12 (Part 18), Certificate No: S&DU/BCC/30/12/002/001A
Buy the TE Series 99M0111242L: Light Polyester Insulated Wire
Purchase the TE Connectivity polyester insulated wire online today for dependable performance in industrial and electrical applications. Designed with a lightweight structure and high-quality tin-plated copper, this wire offers excellent insulation, thermal stability, and resistance to environmental factors. Available in various sizes with precise resistance ratings and standard color coding, it meets industry certifications and is suitable for wiring harnesses, control panels, and more. Ensure reliable electrical connections with this durable, versatile wire designed for safety and longevity in demanding conditions.
Get TE 99M0111242L today—built for precision and long-lasting durability in electrical wiring systems.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 99M0111242L?
You can click on the BUY or RFQ button to purchase 99M0111242L from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 99M0111242L?
You can download the 99M0111242L datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 99M0111242L?
Raychem TE Connectivity
