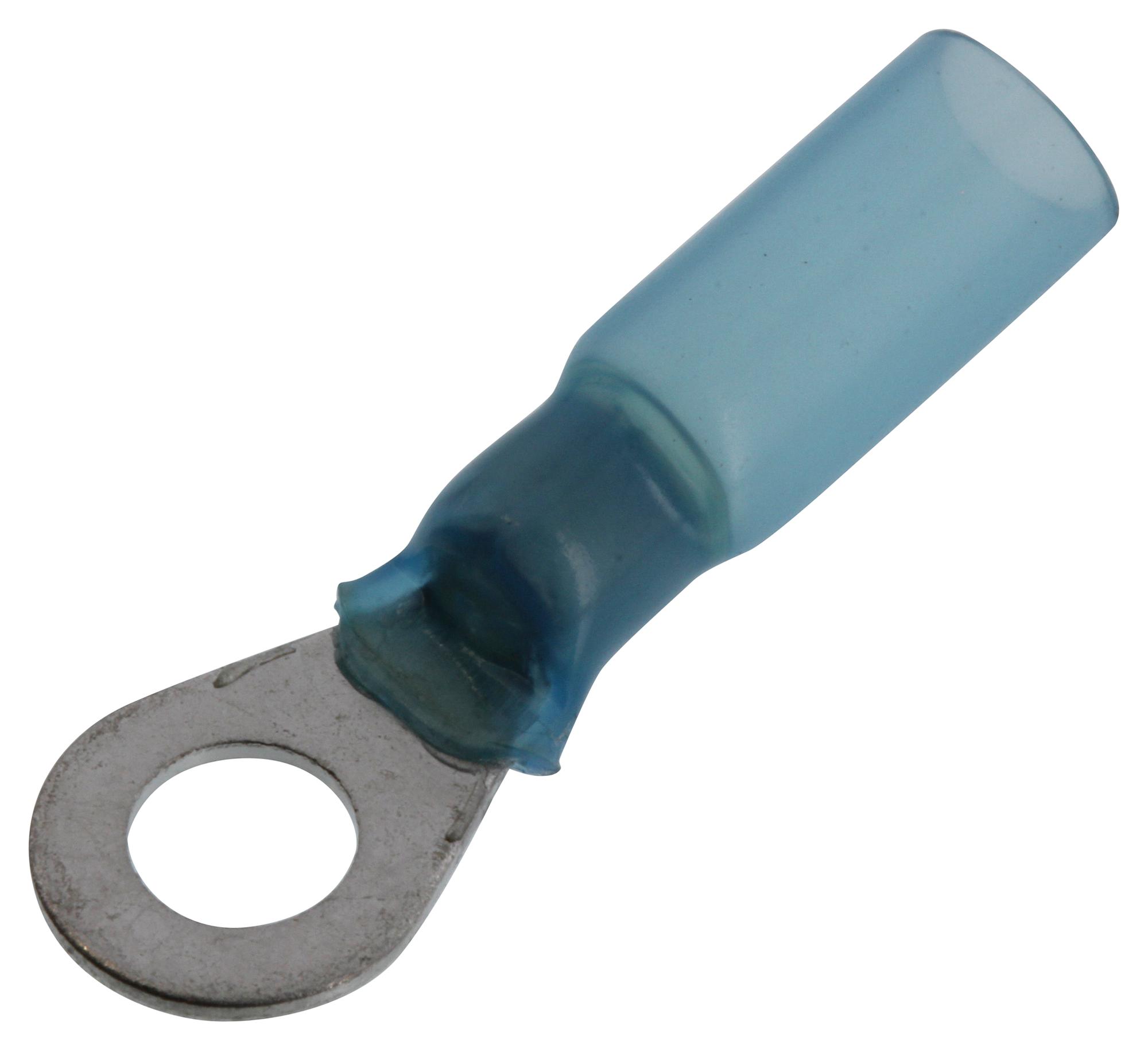

Raychem TE Connectivity B1061502 insulated crimp terminal
The product is a durable, environmentally sealed crimp terminal designed for industrial and electrical applications. It features nylon insulation, heat-shrinkable tubing with adhesive lining for moisture and abrasion resistance, and compatibility with wire gauges 22 to 10. Suitable for insulating and protecting electrical wire connections, it withstands harsh conditions including moisture, salt, and chemicals. Approved by UL and CUL, it is ideal for demanding environments requiring reliable, long-lasting electrical connections with easy installation and strain relief.
Raychem TE Connectivity B1061502 insulated crimp terminal Specifications:
- Operating temperature: -55°C to 125°C
- Voltage rating: 600 V
- Dielectric strength: 1000 V
- Insulation resistance: 10 megohms
- Tensile strength: 8 to 40 lbs depending on wire gauge
- Shrink ratio: approximately 2:1
- Wire gauge: 22-10 AWG
- Material: Nylon insulated heat-shrink tubing with hot-melt adhesive
- Certifications: UL Listed, CUL Listed, Lloyd's Listed
- Physical properties include resistance to abrasion, moisture, and chemicals like gasoline and brake fluid
- Crimping: compatible with AD-1522 crimp tool, heat shrinking with HL1910E or HL2010E tools
- Minimum shrink temperature: 180°C
- Water pullout: red: 11.3 kg, blue: 22.7 kg, yellow: 27.2 kg
- Durability: no cracking after 168 hr heat aging at 160°C
Buy the TE B1061502 – Reliable Crimp Terminal for Industrial Applications
Purchase the TE B1061502 insulated crimp terminal online and ensure secure, weather-resistant electrical connections. Designed with nylon insulation and heat-shrinkable tubing, it offers excellent protection from moisture, abrasion, and chemicals. Suitable for a wide range of wire gauges from 22 to 10 AWG, it is easy to install using recommended crimping and heat-shrinking tools. Approved by UL and CUL, this terminal guarantees reliable performance in challenging conditions, making it an ideal choice for industrial wiring, automation, and electrical systems. Order now for fast delivery and quality assurance.
Get TE B1061502 today—built for electrical reliability, environmental sealing, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1061502?
You can click on the BUY or RFQ button to purchase B1061502 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1061502?
You can download the B1061502 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1061502?
Raychem TE Connectivity
