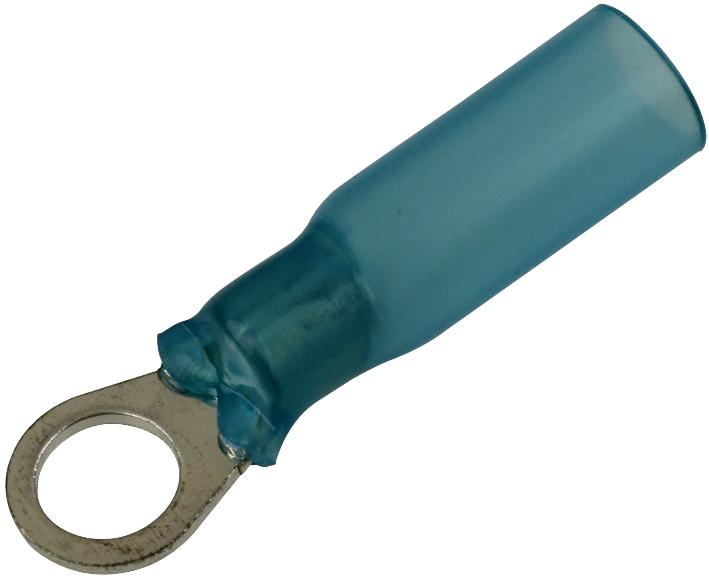

Raychem TE Connectivity B1061502S Insulated Electrical Terminals
DuraSeal heat-shrinkable, nylon insulated crimp terminals and disconnects offer environmentally sealed connections that resist moisture, abrasion, and mechanical abuse. They feature a tough, sealed design with hot-melt adhesive lining for impact resistance and flexibility, suitable for wire gauges 22 to 10. These UL and CUL listed components provide reliable electrical insulation, high dielectric strength, and are resistant to chemicals and temperature extremes from -55°C to +125°C. Ideal for secure, environmentally sealed electrical connections in demanding conditions.
Raychem TE Connectivity B1061502S Insulated Electrical Terminals Specifications:
- Operating temperature: -55°C to +125°C
- Voltage rating: 600 Volt max
- Dielectric strength: 1000 V
- Insulation resistance: 10 megohms
- Shrink ratio: Approximately 2:1
- Tensile strength: 8 to 40 lbs depending on AWG
- Wire pullout after crimping: red: 11.3 kg, blue: 22.7 kg, yellow: 27.2 kg
- Crimping: Use AD-1522 crimp tool for pre-insulated crimps
- Heat recovery: Use heat gun until tubing recovers and adhesive flows
- Flammability: Not flame-retardant
- Environmental resistance: solvent, salt, fuel, oil, brake fluid
- UL and CUL listed, File ES7681
- Material: heat-shrinkable nylon with hot-melt adhesive lining
- Installation: strip 6.5 mm wire, crimp with specified tool, apply heat to recover tubing
Buy the TE Series DuraSeal Heat-Shrinkable Insulated: B1061502S
Purchase TE B1061502S insulated electrical terminals online today and ensure your electrical connections are protected from moisture, abrasion, and environmental stress. These heat-shrinkable, nylon insulated crimp terminals provide superior sealing, high dielectric strength, and chemical resistance. Designed for wire gauges 22 to 10, they are UL and CUL listed with easy installation procedures. Ideal for harsh environments, they offer impact resistance, flexibility, and long-lasting durability. Order now for reliable, secure, and environmentally sealed electrical connections.
Get TE B1061502S today—built for reliable, environmentally sealed electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1061502S?
You can click on the BUY or RFQ button to purchase B1061502S from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1061502S?
You can download the B1061502S datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1061502S?
Raychem TE Connectivity
