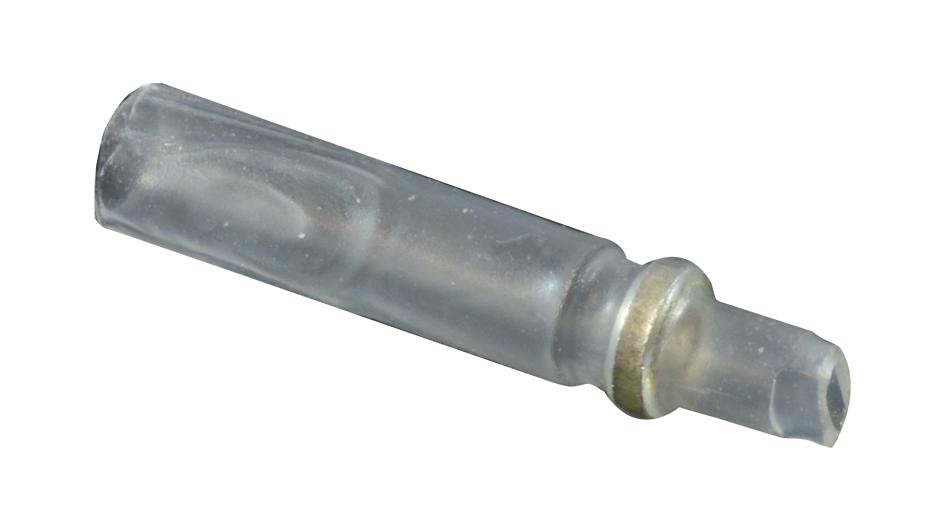

Raychem TE Connectivity B1551501 Wire Soldering Termination Device
This controlled soldering device is designed for reliable wire termination to electrical components or connector terminals, ensuring optimal electrical contact and durability. Made from heat-shrinkable, transparent, cross-linked polyolefin, it offers effective insulation and strain relief. Compatible with solder preforms of Sn42Bi58 alloy and flux type ROMI, it operates within a temperature range of -55°C to +125°C. Suitable for professional wiring and assembly applications, it guarantees consistent performance, safety, and ease of installation in various industrial and electronic environments.
Raychem TE Connectivity B1551501 Wire Soldering Termination Device Specifications:
- Material: Heat-shrinkable, transparent, radiation cross-linked polyolefin
- Solder: Sn42Bi58 (ANSI / J-STD-006)
- Flux: ROMI (ANSI / J-STD-004)
- Application Temperature Range: -55°C to +125°C
- Wire Stripping Dimensions: For wires smaller than AWG 18, stripping length 6.5 ± 0.5 mm; for AWG 18 and larger, stripping length 9.5 ± 0.5 mm and 11.0 ± 0.5 mm respectively
- Maximum Dimensions: 16.0 [0.630] mm maximum, various product sizes with specific dimensions
- Material Compatibility: Suitable for electrical, electronic, and wiring applications
- Application: Designed for termination of wire to electrical component leads or connector terminals
Buy the Tyco Electronics B1551501 – Reliable Soldering Termination for Industrial Applications
Enhance your electrical and electronic wiring projects with the Tyco Electronics B1551501 soldering termination device, featuring durable heat-shrink insulation and proven soldering technology. Its transparent polyolefin construction ensures effective insulation and strain relief. Compatible with Sn42Bi58 solder and ROMI flux, it performs reliably across a wide temperature range from -55°C to +125°C, making it ideal for professional applications. Easy to install, durable, and compliant with industry standards, it guarantees optimal electrical contact, safety, and long-term performance for industrial and electronic assembly tasks.
Buy Tyco Electronics B1551501 now and experience unmatched reliability for professional wire termination and electronic assembly needs.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1551501?
You can click on the BUY or RFQ button to purchase B1551501 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1551501?
You can download the B1551501 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1551501?
Raychem TE Connectivity
