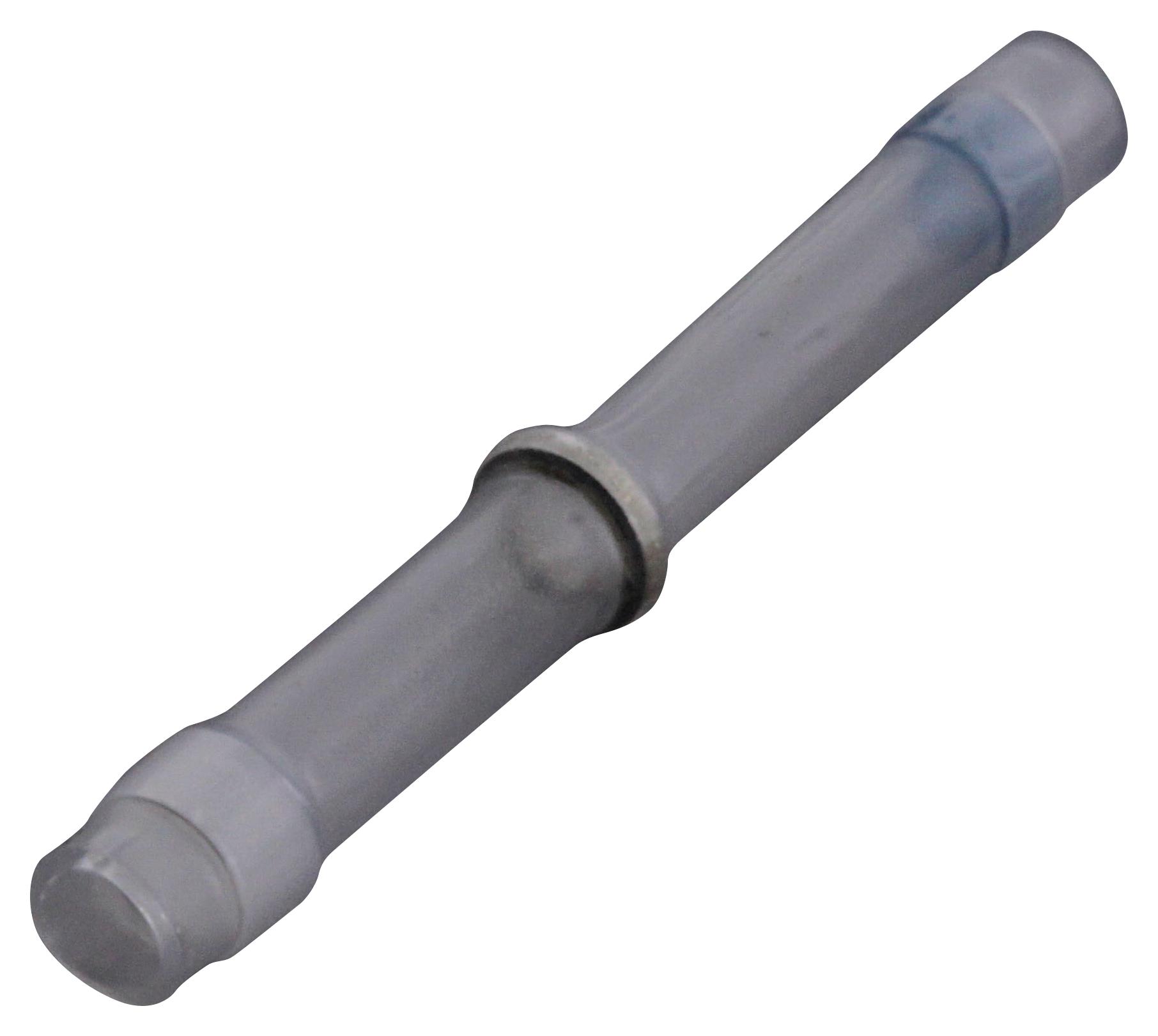

Raychem TE Connectivity B1553801 Shield solder sleeve
This controlled soldering device by Tyco Electronics is designed for the termination of bare or tin-plated copper shields on cables with insulation rated for at least +85°C. Made with heat-shrinkable, transparent, radiation cross-linked polyolefin insulation, it features solder preforms with flux, thermally stabilized meltable rings in clear and blue colors, and operates effectively within a temperature range of -55°C to +125°C. Suitable for applications requiring reliable shield termination, it complies with Tyco RT-1404 standards and ensures robust, electrical connections in industrial environments.
Raychem TE Connectivity B1553801 Shield solder sleeve Specifications:
- Material: Heat-shrinkable, transparent clear, radiation cross-linked modified polyolefin
- Solder: Sn42Bi58 (per ANSI / J-STD-006)
- Flux: Type ROMI (per ANSI / J-STD-004)
- Meltable rings: Thermally stabilized thermoplastic, colors include clear and blue
- Temperature range: -55°C to +125°C
- Cable compatibility: Suitable for bare or tin-plated copper shields on cables with insulation rated for +85°C minimum
- Application: Termination of cable shields, meets RT-1404 standards, installation requires specific procedures and equipment
- Dimensions: Standard sizes vary; refer to product table for detailed dimensions
- Certifications: Meets Tyco Electronics / Raychem specifications
Buy the Tyco Electronics B1553801 – Reliable Shield Termination for Industrial Applications
Enhance your cable assembly processes with the Tyco Electronics B1553801 shield solder sleeve. Designed for robust shield termination, it features heat-shrinkable insulation and stabilized melt rings, ensuring reliable connections under demanding conditions. Suitable for cables with insulation rated above +85°C, it works effectively within a wide temperature range of -55°C to +125°C. Easy to install with proper equipment, this product guarantees safety, durability, and compliance with industry standards, making it an essential component for industrial wiring and electrical systems.
Order your Tyco Electronics B1553801 shield solder sleeve today and ensure dependable, high-quality cable termination for industrial projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1553801?
You can click on the BUY or RFQ button to purchase B1553801 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1553801?
You can download the B1553801 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1553801?
Raychem TE Connectivity
