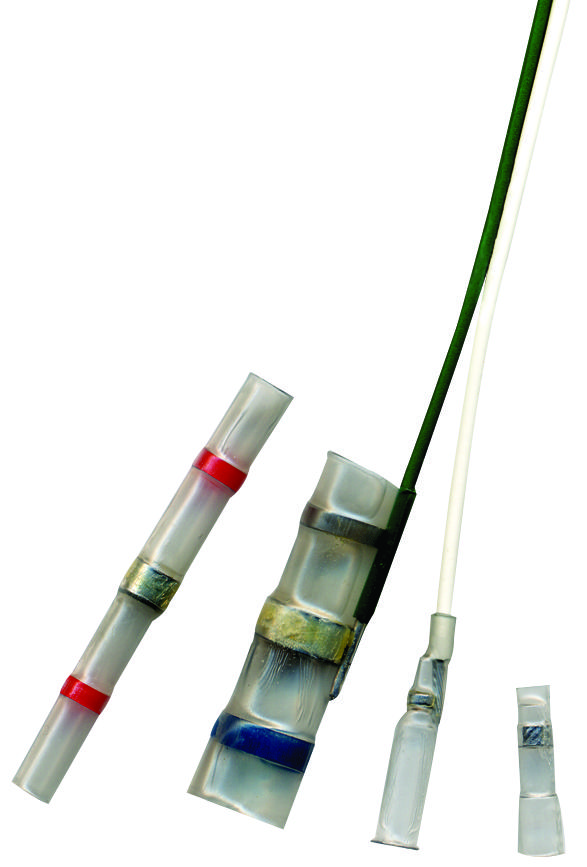

Raychem TE Connectivity B1559001 SolderSleeve Wire Splicer
The B-155-9001 SolderSleeve™ is a one-step wire-to-wire termination device designed for splicing bare or tin-plated copper stranded wires rated at least +85°C. It features a transparent, heat-shrinkable insulation sleeve made of radiation cross-linked modified polyolefin, providing environmental sealing, insulation, and encapsulation for soldered connections. The sleeve includes color-coded, meltable thermoplastic rings for controlled soldering. Suitable for -65°C to 200°C, this lead-free, lightweight device is MIL SPEC approved and ideal for military, aerospace, and automotive applications.
Raychem TE Connectivity B1559001 SolderSleeve Wire Splicer Specifications:
- Material: Radiation cross-linked modified polyolefin insulation sleeve
- Color: Clear with color-coded meltable rings
- Temperature Range: -65°C to 200°C
- Rating: At least +85°C rated wires
- Lead-Free: Yes
- Construction: One-piece design
- Standards: MIL SPEC approved (M83519/1, M83519/2)
- Application: Suitable for military, aerospace, automotive, and industrial uses
- Solder Type: Sn42Bi58 per ANSI/J-STD-006
- Flux Type: ROMI per ANSI/J-STD-004
- Material of thermoplastic rings: Thermally stabilized thermoplastic
Buy the TE Connectivity Series SolderSleeve Wire Splicer: B1559001
Purchase the TE Connectivity B1559001 SolderSleeve online today and ensure secure, insulated wire splicing with easy installation. This device features a transparent, heat-shrinkable insulation sleeve made from radiation cross-linked modified polyolefin for environmental sealing and insulation. It includes color-coded meltable rings for controlled soldering and is rated for temperatures up to 200°C. Compact and lightweight, this lead-free connector meets MIL specifications, making it perfect for military, aerospace, automotive, and industrial applications. Order now for reliable soldering performance.
Buy TE Connectivity B1559001 now and experience unmatched reliability and performance in critical wiring applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1559001?
You can click on the BUY or RFQ button to purchase B1559001 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1559001?
You can download the B1559001 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1559001?
Raychem TE Connectivity
