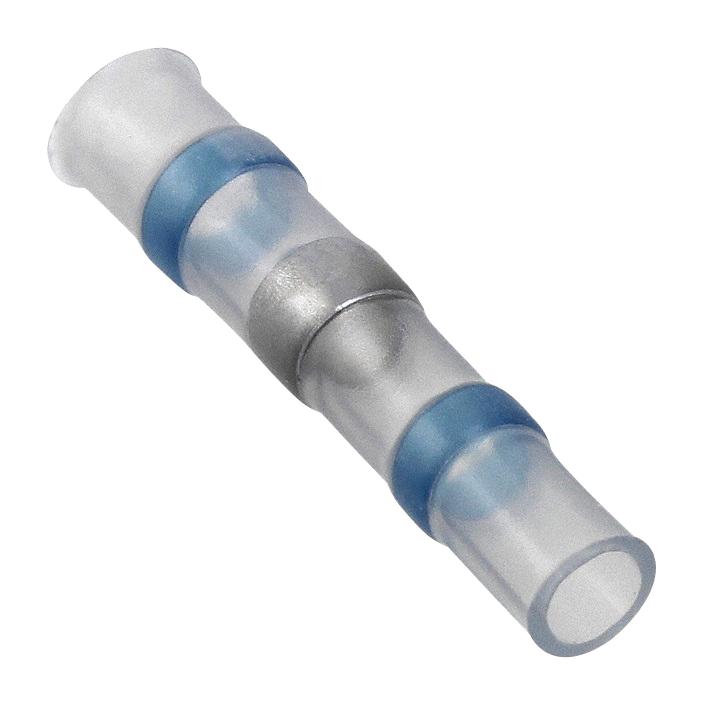

Raychem TE Connectivity CWT3805 Shield Termination Sleeve
This solder sleeve is made of a heat-shrinkable, radiation cross-linked modified polyolefin insulator. It features a transparent clear insulator for easy identification and inspection. Designed for terminating bare or tin-plated copper shields on cables rated for at least +85°C, it operates in temperatures from -55°C to +125°C. The sleeve includes a thermally stabilized thermoplastic ring in blue, and uses Type CD18 solder with flux for secure, reliable connections. Proper installation ensures ideal electrical and mechanical performance in industrial and electronic cable assemblies.
Raychem TE Connectivity CWT3805 Shield Termination Sleeve Specifications:
- Material: Heat-shrinkable, radiation cross-linked modified polyolefin
- Insulation Color: Clear
- Application Temperature Range: -55°C to +125°C
- Application: Termination of bare or tin-plated copper shields on cables
- Solder Type: CD18 per ANSI J-STD-006
- Flux Type: ROMI per ANSI J-STD-004
- Thermoplastic Ring Color: Blue
- Minimum Insulation Rating: +85°C
- Cable Rated Temperature: Up to +125°C
- Operating Voltage: Suitable for industrial cable connections
Buy the Buy Tyco Electronics CWT3805 Part Number CWT3805 Online
Order Tyco Electronics shield termination sleeve CWT3805 online now for secure, reliable cable shield termination. Its heat-shrinkable, radiation cross-linked polyolefin insulator provides excellent insulation and environmental protection. Featuring a transparent insulator for easy inspection, a blue thermoplastic ring for secure sealing, and compatible with cables rated for at least +85°C, it performs reliably across a temperature range of -55°C to +125°C. This professional-grade solder sleeve ensures durability and efficient installation in industrial, electronic, and telecommunication applications. Purchase today for fast delivery and superior performance.
Get Tyco Electronics CWT3805 today—designed for reliable shield termination with high-temperature resistance and durable materials.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity CWT3805?
You can click on the BUY or RFQ button to purchase CWT3805 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part CWT3805?
You can download the CWT3805 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of CWT3805?
Raychem TE Connectivity
