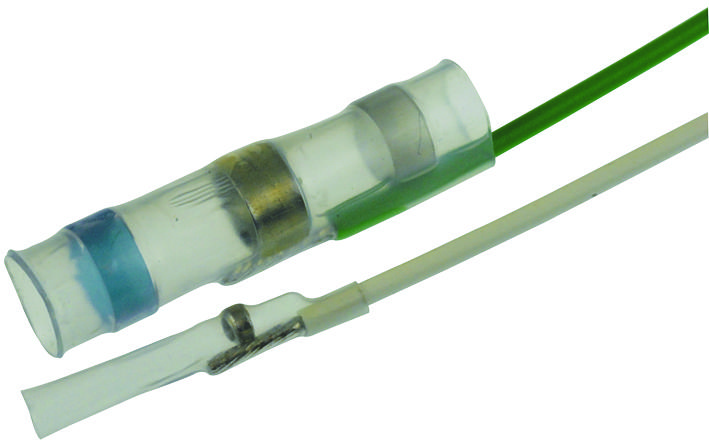

Raychem TE Connectivity CWT4174W12259 Coaxial Shield Sleeve
The CWT-4174-W122-5/9 is a transparent, clear solder sleeve shield terminator made of radiation cross-linked modified polyolefin. Designed for coaxial cable connections, it provides a protected, environmentally sealed termination. The device features a heat-shrinkable design suitable for application temperatures ranging from -55°C to 125°C. It accommodates bare copper, tin, or silver-plated shields and conductors, and is intended for safety and industrial applications.
Raychem TE Connectivity CWT4174W12259 Coaxial Shield Sleeve Specifications:
- Materials: Heat-shrinkable transparent polyolefin, tin-plated copper conductors, thermoplastic melted rings.
- Temperature Range: -55°C to +125°C.
- Cable Compatibility: Designed for coaxial cables with shield and conductor dimensions as specified.
- Application: Environmentally sealed termination for coaxial cables, providing insulation and environmental protection.
- Dimensions: oA 45 mm, oB 17 mm, oC 1.0 mm, oD 23 mm, typical oE 19.0 mm, G 12.5 mm, M 6.0 mm, N 0.235 inches.
- Material Specifications: Cross-linked polyolefin, solder with flux, thermoplastic melted rings, tin-plated copper conductors, green ground lead.
- Design: Heat-shrinkable, radiation cross-linked modified polyolefin for reliable electrical connection and environmental sealing.
- Standards: Meets industrial safety requirements for coaxial connections, temperature resistance, and sealed termination.
- Installation: Use Raychem-approved convection heating tools as per installation procedures.
- Compliance: UL Listed, CSA Certified, suitable for industrial and safety-critical environments.
Buy the Buy TE Connectivity Coaxial Cable Shield Separator Part Number CWT4174W12259 Online
Enhance your coaxial cable assemblies with the TE Connectivity CWT-4174-W122-5/9 solder sleeve shield terminator. Crafted from durable, radiation cross-linked polyolefin, it offers exceptional environmental protection and flexibility across a temperature range of -55°C to 125°C. Designed for industrial and safety applications, this heat-shrinkable device ensures reliable electrical connection and sealing for bare copper, tin, or silver-plated shields and conductors. Easy to install with Raychem-approved tools, it guarantees long-lasting performance and superior environmental sealing for your critical systems.
Order your TE Connectivity SeriesCWT4174W12259 coaxial shield termination sleeve today and ensure reliable, environmentally sealed connections for industrial coaxial cables.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity CWT4174W12259?
You can click on the BUY or RFQ button to purchase CWT4174W12259 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part CWT4174W12259?
You can download the CWT4174W12259 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of CWT4174W12259?
Raychem TE Connectivity
