Raychem TE Connectivity D1500175 Cable Splicing Kit

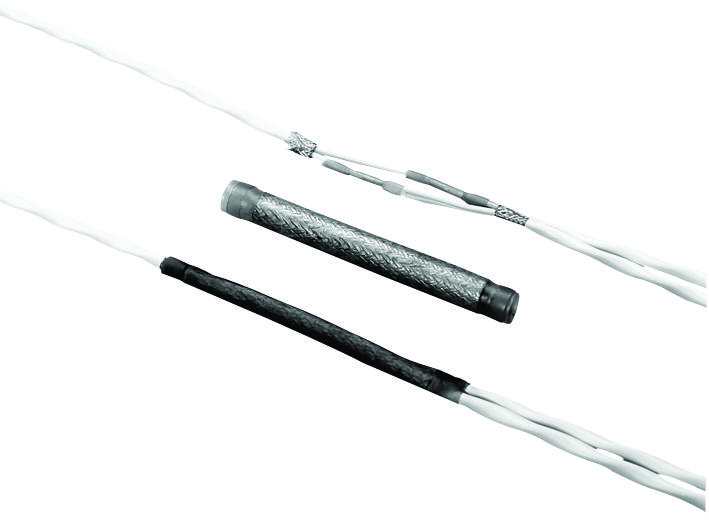

SolderShield solder and crimp splice kits offered by TE provide reliable cable-to-cable connections for coaxial and multiconductor cables. These environmentally sealed products consist of a flux-coated, solder-impregnated copper shield encased in a heat-shrinkable sleeve, ensuring EMI protection, shield continuity, and strain relief. Suitable for high-performance applications, they feature MIL-standard compliant MiniSeal crimp splices and are easy to install using specialized TE heating tools. Ideal for repair, splicing, and maintaining shield integrity in demanding environments across various industries.
Raychem TE Connectivity D1500175 Cable Splicing Kit Specifications:
- Materials: Radiation-crosslinked polyvinylidene fluoride insulation sleeve, copper alloy base metal, tin or nickel plating, solder and flux coating
- Electrical Performance: Dielectric strength (shield connection) no breakdown at 1000 Vac, conductor connection 25KV, insulation resistance minimum 4000 megaohms at 500 Vde, voltage drop less than 2.0 millivolts
- Mechanical: Tensile strength exceeds wire yield strength, environmental resistance includes salt spray, heat aging for 750 hours at 150°C, temperature cycling from -55°C to 150°C, and corrosion resistance
- Dimensions: Length varies depending on model, typical spool or kit dimensions based on cable size, designed to fit various standard coaxial and multiconductor cables
- Standards & Approvals: MIL-S-81824, MIL-STD-202, ASTM B75, ASTM B3, MIL-T-10727, QQ-N-290
- Environmental Resistance: Salt spray, heat aging, temperature cycling, altitude immersion, and corrosion resistance testing compliance
Buy the Buy TE SolderShield Part Number D1500175 Online
Enhance your cable management with TE's SolderShield splicing kits, designed for quick, secure, and environmentally sealed connections. These kits include solder and crimp splices with shield termination solutions suitable for coaxial and multiconductor cables, ensuring EMI protection, shield continuity, and strain relief. Easy to install with dedicated TE heating tools, they're ideal for repair, splicing, and maintaining high performance in demanding environments. Trust TE for durable, reliable cable splicing that meets military standards and industry requirements worldwide.
Order your TE SeriesD1500175 cable splicing kit today and ensure reliable, EMI-protected connections for your coaxial or multiconductor cables.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity D1500175?
You can click on the BUY or RFQ button to purchase D1500175 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part D1500175?
You can download the D1500175 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of D1500175?
Raychem TE Connectivity
