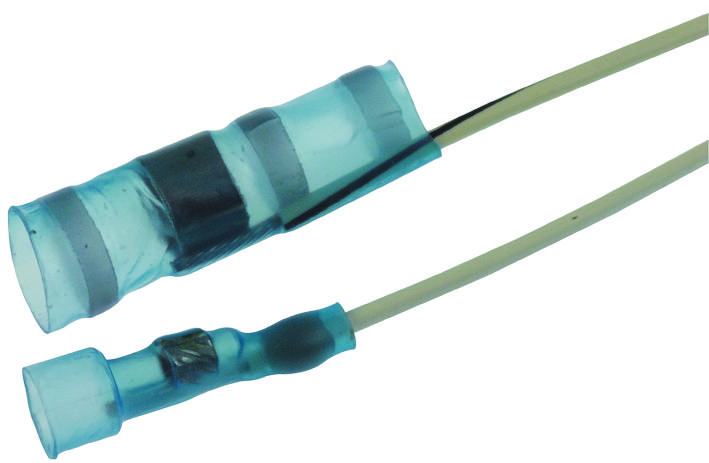

Raychem TE Connectivity D1813222909 Coaxial Solder Sleeve
The coaxial solder sleeve assembly provides a reliable, environmentally protected termination for coaxial cables rated for a minimum of 125°C and operable over a temperature range of -55°C to +150°C. Made with heat-shrinkable, transparent blue insulation sleeves of modified polyvinylidene fluoride, it includes tin-plated, stranded ground leads, and thermally stabilized melt rings. Suitable for applications requiring secure, high-temperature connections, it ensures optimal performance through Raychem-approved heating methods, meeting strict dimensional and material standards for professional cable management and electrical safety.
Raychem TE Connectivity D1813222909 Coaxial Solder Sleeve Specifications:
- Insulation: Heat-shrinkable, transparent blue, radiation cross-linked PVDF
- Solder: Sn63 ANSI-J-STD-006
- Flux: Type ROLI ANSI-J-STD-004
- Meltable Rings: Thermally stabilized thermoplastic, gray
- Ground Lead: Stranded tin-plated, AWG XY, white or with black strip
- Temperature Range: -55°C to +150°C
- Rated for minimum 125°C
- Dimensions: Varies with model, length 17.00 mm to 21.5 mm, diameters approximate from detailed specs
- Material: Modified polyvinylidene fluoride, thermoplastic, tin-plated copper
- Application: Coaxial cable termination with environment protection
- Heating Methods: Convection or infrared with Raychem-approved tools
Buy the Tyco Electronics Series Coaxial Solder Sleeve: D1813222909
Upgrade your cable connections with this high-performance coaxial solder sleeve featuring heat-shrink insulation, conductive solder preforms, and thermally stabilized rings. Designed for demanding environments, it withstands temperatures up to 150°C and ensures a secure, environmentally protected termination. Easy to install using Raychem-approved heating tools, it meets industry standards for safety and durability, making it ideal for professional electrical and telecommunications applications. Purchase online today and ensure lasting, high-quality connections for your projects.
Buy Tyco Electronics coaxial solder sleeve D1813222909 now and experience unmatched reliability and performance.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity D1813222909?
You can click on the BUY or RFQ button to purchase D1813222909 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part D1813222909?
You can download the D1813222909 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of D1813222909?
Raychem TE Connectivity
