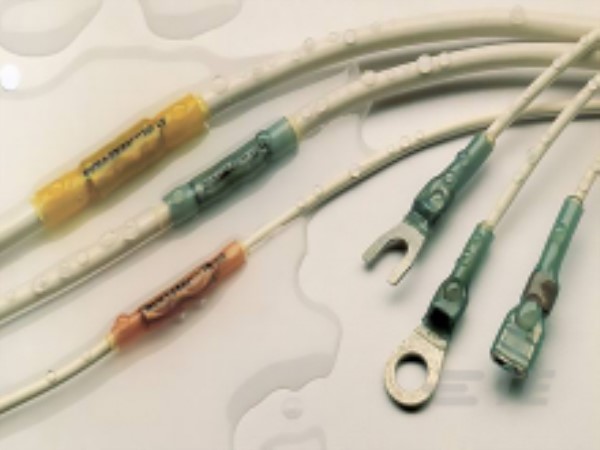

Raychem TE Connectivity D4060002 Wire Splice
DuraSeal heat-shrinkable, environmentally sealed nylon-insulated splices designed for reliable wire-to-wire connections in automotive, marine, and industrial applications. These splices provide water, condensation, salt, and corrosion protection, along with strain relief and vibration resistance in tugged environments. They feature an adhesive lining for enhanced sealing, are UL, CUL, and Lloyd's listed, and support a broad temperature range of -55°C to 125°C. Suitable for various wire sizes, these splices ensure secure electrical connections with excellent mechanical and chemical resistance.
Raychem TE Connectivity D4060002 Wire Splice Specifications:
- Material: Nylon-insulated, heat-shrinkable
- Operating Temperature: -55°C to 125°C
- Shrink Ratio: Approximately 2:1
- Crimp Strength: 31 kg (70 lb)
- Wire Range: 26-24 AWG through 12-10 AWG
- Wire Insulation O.D.: 1.40 mm (0.055 in) to 2.80 mm (0.110 in)
- Dielectric Strength: 2500 Vac
- Insulation Resistance: 1000 megohms at 100 V
- Chemical Resistance: solvents, fuels, oils, antifreeze, salt water
- Flammability: Flame-retardant, no cracking after heat aging at 160°C for 168 hours
- Mechanical Resistance: High pullout strength, cut-through resistance
- Vibration Resistance: Designed for tugged environments
- Approvals: UL, CUL, Lloyd's listed, File 87681, 65 247 HH 02-93
- Application: Automotive, marine electronics, fleet maintenance, appliances, industrial wiring
Buy the TE Series DuraSeal Heat-Shrinkable Wire Splice: D4060002
Upgrade your wiring projects with TE Series DuraSeal heat-shrinkable wire splices. These environmentally sealed, nylon-insulated connectors offer superior protection against water, corrosion, and vibration. Easy to install using recommended crimp and heating tools, their adhesive lining provides enhanced environmental sealing for automotive, marine, and industrial applications. With UL, CUL, and Lloyd's approvals, they deliver dependable electrical connections across a wide temperature range. Purchase online today to ensure your wiring is protected, reliable, and compliant with industry standards for safety and durability.
Order your TE Series DuraSeal D4060002 heat-shrinkable wire splice today and ensure reliable, vibration-resistant electrical connections for demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity D4060002?
You can click on the BUY or RFQ button to purchase D4060002 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part D4060002?
You can download the D4060002 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of D4060002?
Raychem TE Connectivity
