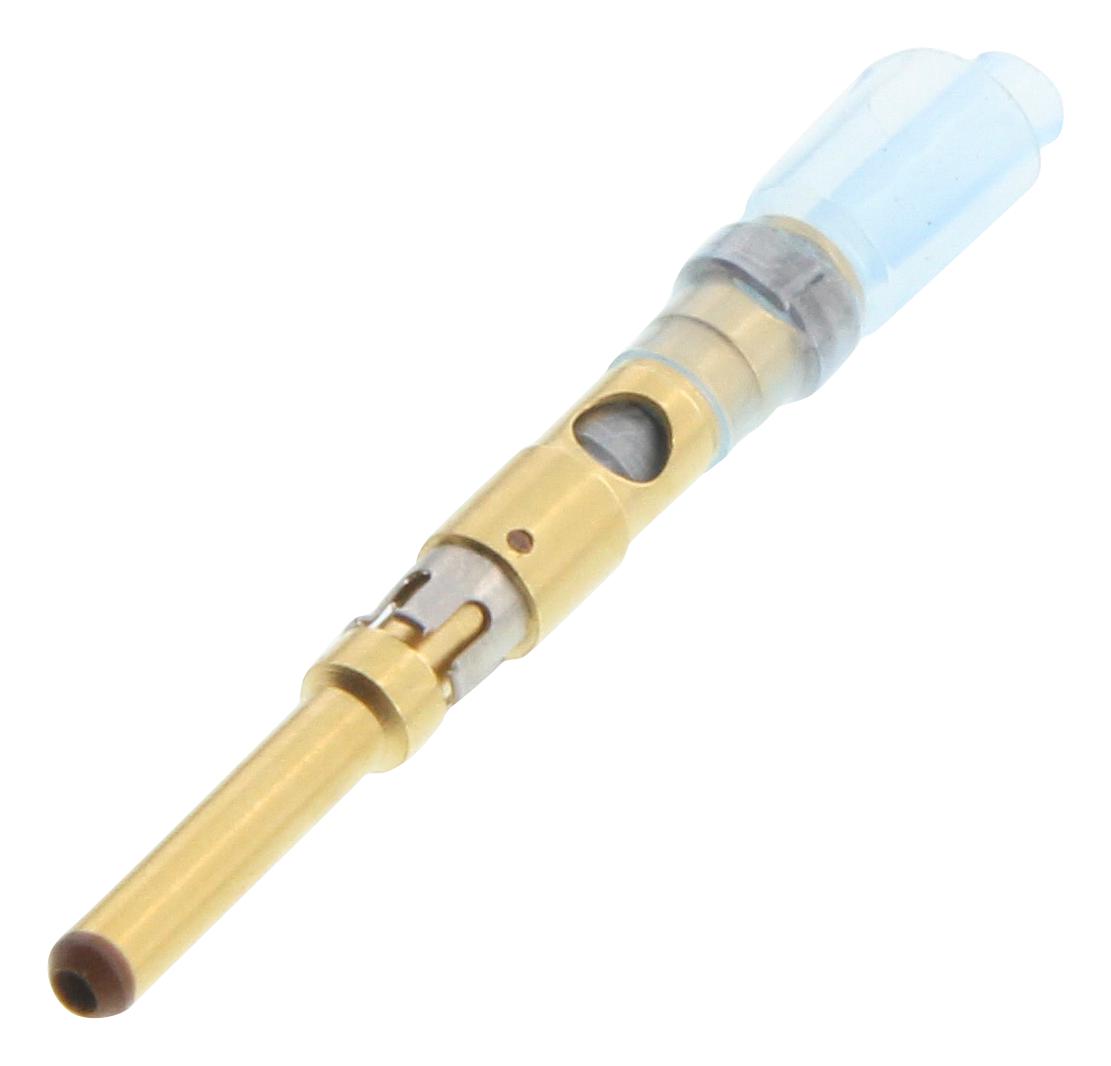

Raychem TE Connectivity D6020126 Shielded Solder Contact
The D6020126 is a shielded one-piece solder contact designed for reliable termination of coaxial cables, shielded wires, twisted pairs, and triaxial cables. It features controlled soldering for strong, inspectable joints, reducing cross-talk and enhancing signal transmission. Suitable for military, aerospace, instrumentation, and commercial applications, it offers compatible tooling and straightforward installation. The contact ensures strain relief via heat-shrinkable insulation, providing excellent shielding effectiveness and electrical performance. Intermountable and replaceable with standard connectors, this solder contact simplifies assembly in high-reliability systems.
Raychem TE Connectivity D6020126 Shielded Solder Contact Specifications:
- Material: Copper alloy with tin-plated surface
- Dimensions: Diameter varies from 7.52-2.92 mm to 4.12-1.30 mm depending on type
- Cable Compatibility: Coaxial, twisted pair, triaxial, from 7.52 mm to 4.12 mm OD
- Soldering: Controlled soldering with prefluxed preforms, ensuring strong joints
- Shielding: Central conductor carried through for reduced cross-talk and improved shielding
- Insulation: Heat-shrinkable, transparent insulation with inspection windows
- Application Standards: MIL-C-26482, MIL-C-28748, MIL-C-38999, DOD-C-83527, and other military specs
- Tools & Installation: Compatible with standard TE hot air and manual tools, ensuring reliable assembly
- Interchange: Intermountable and compatible with standard connector cavities, easy to replace
Buy the TE Series D6020126 Coaxial Shielded Solder Contact
Purchase the TE Series D6020126 shielded solder contact online today and enhance your cable termination processes. Designed for coaxial, twisted pair, and triaxial cables, this contact ensures strong, inspectable solder joints with controlled soldering for reduced cross-talk and superior signal transmission. Its compatibility with standard tooling allows quick installation and easy replacement. Ideal for military, aerospace, and instrumentation applications, this reliable contact provides excellent shielding, strain relief, and high-performance connections, simplifying complex wiring tasks and improving system reliability.
Order your TE Series D6020126 shielded solder contact today and enjoy dependable signal integrity and easy installation for your high-reliability projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity D6020126?
You can click on the BUY or RFQ button to purchase D6020126 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part D6020126?
You can download the D6020126 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of D6020126?
Raychem TE Connectivity
