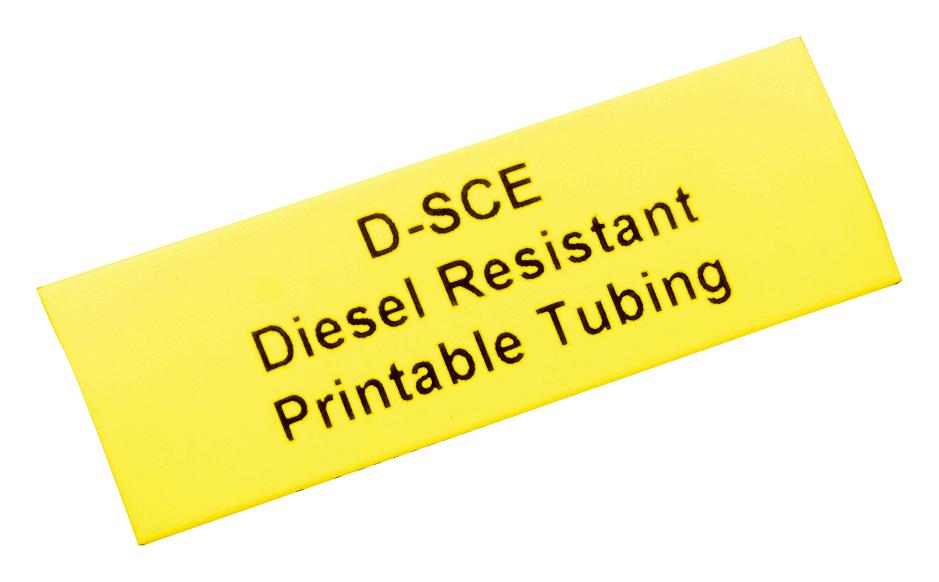

Raychem TE Connectivity DSCE1K12504 Heat Shrink Identification Sleeve
D-SCE is a diesel-resistant, fluid-proof heat shrink identification sleeve designed for wire and cable marking. Manufactured with advanced e-beam technology, it offers excellent print retention and durability in rugged environments. Approved for railway, military, and industrial applications, this sleeve withstands high temperatures from -75°C to 135°C and resists lubricants and fuels. It features a 3:1 shrink ratio, available in various diameters from 2.4mm to 38.1mm, with optional pre-scoring for easy installation. It meets multiple safety and fire standards, ensuring high-performance cable identification.
Raychem TE Connectivity DSCE1K12504 Heat Shrink Identification Sleeve Specifications:
- Shrink ratio: 3:1 (38.1mm), 2:1 (others)
- Operating Temperature Range: -75°C to 135°C
- Inside Diameter (Nominal): 2.4mm to 38.1mm
- Recommended Cable Diameter Use: 0.03 to 33mm
- Material: Polyolefin, Crosslinked, Flame Retardant
- Flammability: Self-extinguishing, UL 94V-0 compliant
- Standards: NF F 00608, SAE-AMS-DTL-23053/6 Class 1, EN45545-2, NFPA 130
- Resistance: Fluids including lubricants and fuels, solvents
- Environmental compliance: RoHS II, REACH
- Print performance: Meets MIL 202, SAE AS 5942, EN 50343
Buy the TE Series D-SCE Diesel Resistant Heat Shrink Identification System: DSCE1K12504
Enhance your wire and cable marking with the TE Series D-SCE Diesel Resistant Heat Shrink Identification Sleeve. Designed for rugged industrial, railway, and military environments, this flame-retardant polyolefin sleeve resists fuels, lubricants, and solvents, maintaining excellent print retention. Its wide temperature range from -75°C to 135°C ensures durability under extreme conditions. Available in sizes from 2.4mm to 38.1mm, with optional pre-scoring for easy installation, this sleeve meets key fire and safety standards, providing reliable cable identification in complex projects.
Order your TE Series D-SCE Diesel Resistant Heat Shrink Identification System DSCE1K12504 today and ensure reliable, durable wire marking in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DSCE1K12504?
You can click on the BUY or RFQ button to purchase DSCE1K12504 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DSCE1K12504?
You can download the DSCE1K12504 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DSCE1K12504?
Raychem TE Connectivity
