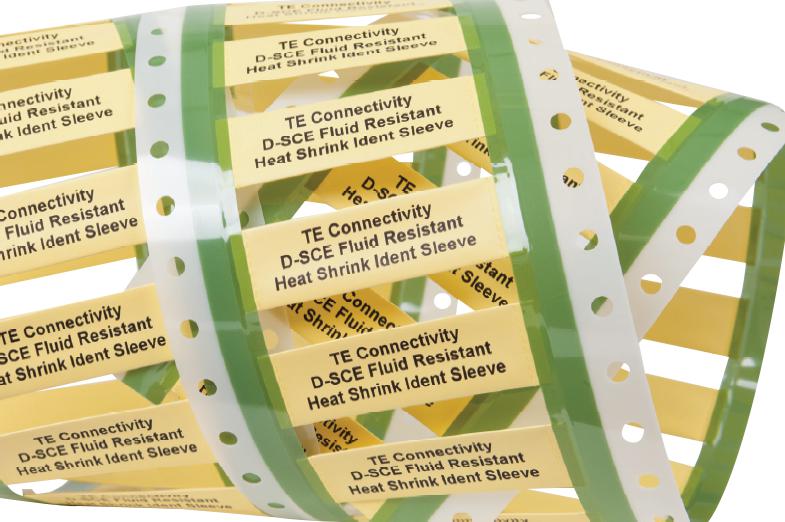

Raychem TE Connectivity DSCE1K1250S19 Heat Shrink Identification System
D-SCE Diesel Resistant Heat Shrink Identification System offers a durable, fluid-resistant, thin-walled tubing suitable for wire and cable marking, especially in rugged environments. Manufactured with e-beam technology, it ensures print integrity during shrinking, providing a firm hold and high performance in industrial, rail, and military applications. Compliant with RoHS, REACH, NF F 00608, BS EN50343, and SAE-AMS standards, this heat shrink tubing withstands operating temperatures from -75°C to 135°C. Available in multiple diameters, sizes, and pre-scored options, it ensures reliable cable identification in demanding conditions.
Raychem TE Connectivity DSCE1K1250S19 Heat Shrink Identification System Specifications:
- Material: Crosslinked polyolefin
- Shrink ratio: 3:1 (38.1mm 2:1 for smaller sizes)
- Operating Temperature Range: -75°C to 135°C
- Inside diameters: 24mm to 381mm, tailored for various cable sizes
- Pre-scored options and multiple color choices including yellow, white, blue, pink
- Standards Compliance: NF F 00608, BS EN50343, SAE-AMS-23053/6, EN45545-2, NFPA 130
- Flame retardant, self-extinguishing, RoHS II compliant, REACH compliant
- Shrink ratio: typically 3:1 or 2:1 depending on diameter
- Cable diameter use: 0.03 to 33.02mm after recovery
- Print quality supported via specific TE printers and ribbons, compatible with WINTOTAL software
Buy the TE Series D-SCE Diesel Resistant Heat Shrink Identification System: DSCE1K1250S19
Order TE Connectivity D-SCE Diesel Resistant Heat Shrink Identification System online to enjoy high-quality, fluid-resistant cable marking solutions. Designed for rugged industrial, rail, and military use, this heat shrink tubing offers excellent temperature stability from -75°C to 135°C. Manufactured with advanced e-beam technology, it ensures the printed text remains intact during shrinking, providing a firm hold on wires and cables. Available in various diameters, colors, and pre-scored options, these sleeves meet international standards like NF F 00608 and SAE-AMS, making them ideal for demanding environments.
Buy TE Connectivity D-SCE Diesel Resistant Heat Shrink Identification System now and ensure reliable cable marking in harsh environments with high-temperature and chemical resistance.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DSCE1K1250S19?
You can click on the BUY or RFQ button to purchase DSCE1K1250S19 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DSCE1K1250S19?
You can download the DSCE1K1250S19 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DSCE1K1250S19?
Raychem TE Connectivity
