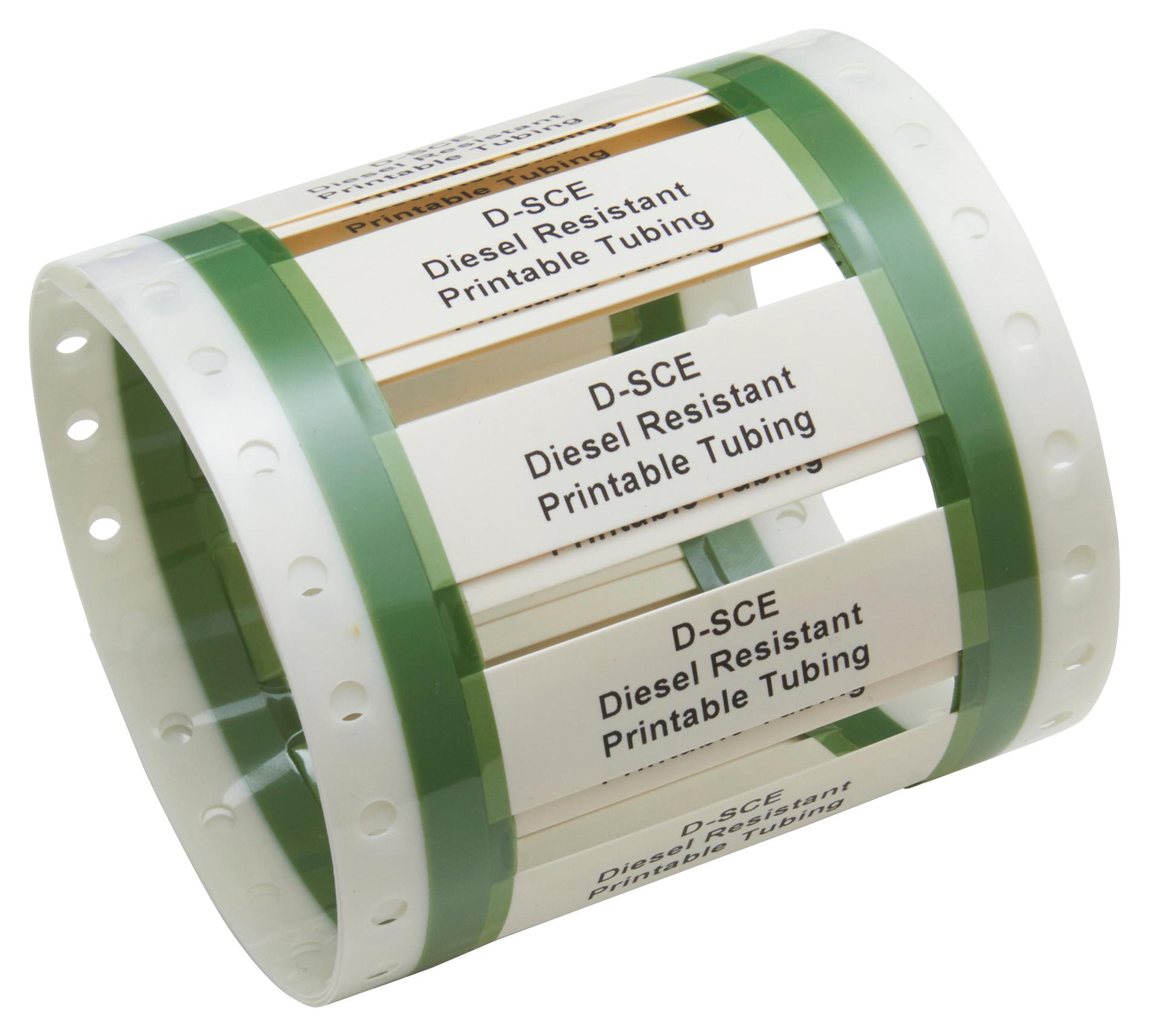

Raychem TE Connectivity DSCE1K3250S19 Heat Shrink Identification Sleeve
D-SCE is a diesel-resistant, heat shrink identification sleeve designed for rugged environments and industrial applications. Manufactured with e-beam technology, it provides excellent print performance and chemical resistance, suitable for wire and cable marking that withstands fuels, lubricants, and industrial fluids. Compliant with rail and fire safety standards, D-SCE withstands temperature ranges from -75°C to 135°C. Available in various diameters and lengths, it features a 3:1 shrink ratio, ensuring secure and durable cable identification in demanding settings. The system includes printers, ribbons, and software for optimal performance.
Raychem TE Connectivity DSCE1K3250S19 Heat Shrink Identification Sleeve Specifications:
- Material: Crosslinked Polyolefin
- Shrink Ratio: 3:1 (38.1mm 2:1)
- Operating Temperature Range: -75°C to 135°C
- Inside Diameter: 2.4mm to 38.1mm (nominal), with recovery range from 0.03 to 33.02 mm
- Length Options: 50mm, 100mm, 250mm, 500mm, 1000mm, 2500mm, 5000mm
- Color: Yellow, White, Blue, Pink
- Compliance: NF F 00608, BS EN 50343, SAE-AMS-DTL-23053/6, MIL-STD-202 Method 215, EN 50343, NFPA 130
- Flammability: Self-extinguishing, complies with RoHS II
- Maximum Operating Temperature: 135°C
- Minimum Operating Temperature: -75°C
- Perforations: Available for multiple marker production
- Print System Compatibility: TE printers with specified ribbons, software support for identification labels
Buy the TE Connectivity DSCE1K3250S19 – Reliable Diesel-Resistant Heat Shrink Identification for Industrial Applications
Enhance your cable management with TE Connectivity's D-SCE heat shrink identification sleeves, engineered for durability and chemical resistance. Perfect for industrial, railway, and military applications, these sleeves withstand fuels, lubricants, and extreme temperatures from -75°C to 135°C. Available in multiple sizes and colors, they provide reliable, long-lasting identification. Purchase online today to benefit from an integrated system including compatible printers, ribbons, and software, ensuring your wiring is accurately marked and protected in demanding environments.
Order your TE Connectivity D-SCE serial heat shrink markers today and ensure durable, fuel-resistant cable identification in tough industrial and railway environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DSCE1K3250S19?
You can click on the BUY or RFQ button to purchase DSCE1K3250S19 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DSCE1K3250S19?
You can download the DSCE1K3250S19 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DSCE1K3250S19?
Raychem TE Connectivity
