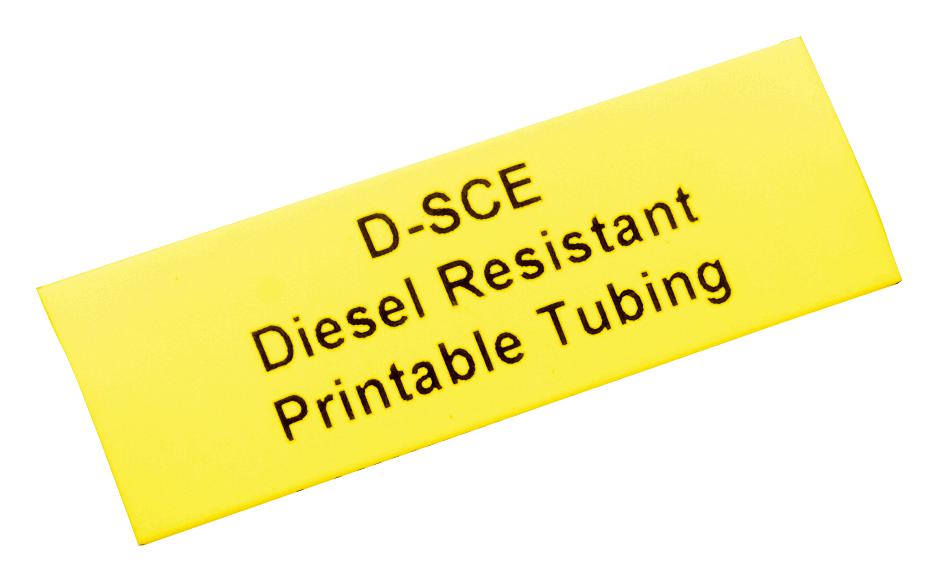

Raychem TE Connectivity DSCE1K95504 Heat Shrink Identification Sleeving
D-SCE heat shrink identification system offers diesel-resistant, fluid-resistant, and flame-retardant sleeves suitable for high-reliability wiring applications. Manufactured with e-beam technology, these sleeves provide excellent print performance, shrink ratio (3:1), and temperature range from -75°C to 135°C. Ideal for rail, industrial, and military environments, the sleeves meet standards like NF F 00608, SAE-AMS-DTL-23053/6, and EN 45545-2. They are available in various sizes, colors, and pre-scored options, supporting rugged, flame-retardant, and environmentally compliant cable identification.
Raychem TE Connectivity DSCE1K95504 Heat Shrink Identification Sleeving Specifications:
- Shrink Ratio: 3:1 (38.1mm 2:1)
- Temperature Range: -75°C to 135°C
- Inside Diameter Range: 24mm to 381mm
- Suitable for cable diameters from 0.03 to 33.02 mm (0.001 to 1.3 inches)
- Flammability: Self-extinguishing, complies with UL 94V-0
- Material: Crosslinked polyolefin
- Fluids Resistance: Resistant to lubricants, fuels, and industrial fluids
- Standards: NF F 00608, SAE-AMS-23053/6 Class 1, EN 45545-2, NFPA 130
- Compliance: RoHS II, REACH
- Operate Temp: -75°C to 135°C
- Print Performance: Meets MIL 202, SAE AS 5942, EN 50343
- Color Options: Yellow, White, Blue, Pink
- Applicable for railway, industrial, and military wiring
- Available in sizes from 2.4mm to 38.1mm diameter, various pack sizes
Buy the Buy TE Connectivity D-SCE Diesel Resistant Heat Shrink Identification Part Number DSCE1K95504 Online
Purchase TE Connectivity D-SCE heat shrink identification sleeves online today to ensure reliable, flame-retardant cable labeling in industrial, rail, and military environments. Engineered for rugged conditions with excellent chemical and fluid resistance, these sleeves meet stringent standards and offer easy installation with pre-scored options. Compatible with specified printers and ribbons, they provide professional, durable markings that withstand high temperature and harsh fluids. Ideal for applications demanding superior identification and safety compliance, available in multiple sizes and colors for versatile deployment.
Buy TE Connectivity D-SCE DSCE1K95504 now and experience unmatched reliability, flame retardance, and high-performance cable identification for rugged environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DSCE1K95504?
You can click on the BUY or RFQ button to purchase DSCE1K95504 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DSCE1K95504?
You can download the DSCE1K95504 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DSCE1K95504?
Raychem TE Connectivity
