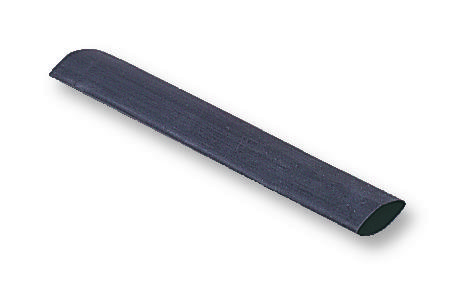

Raychem TE Connectivity DWFR3280STK Dual Wall Heat Shrink Tubing
The TE Connectivity DWFR-32/8-0-STK dual wall heat shrink tubing is engineered for electrical insulation, environmental sealing, and mechanical protection in industrial settings. Made from polyolefin with an adhesive lining, it offers a high shrink ratio of 4:1, enabling coverage of various substrates with fewer sizes. Its medium wall thickness resists abrasion and bending, while the moisture-resistant adhesive bonds to different materials. Operating within -40°C to 110°C, it ensures durability under mechanical stress, making it ideal for sealing, repairing cable jackets, and creating breakouts. UL VW-1 rated and CSA certified, it meets strict safety standards.
Raychem TE Connectivity DWFR3280STK Dual Wall Heat Shrink Tubing Specifications:
- Material: Irradiated polyolefin jacket with thermoplastic adhesive inner wall
- Shrink Ratios: 3:1 and 4:1 provide design flexibility
- Expanded I.D.: 8.0 mm (0.315 in), Recovered I.D.: 2.0 mm (0.079 in), Wall Thickness: 0.25 mm (0.010 in)
- Minimum Shrink Temperature: 60°C (140°F), Full Recovery Temperature: 110°C (256°F)
- Operating Temperature Range: -40°C to 110°C (-40°F to 230°F)
- Mechanical Protection: Medium wall thickness resists abrasion and bending
- Electrical Insulation: Excellent dielectric strength of 300 V/mil
- Flammability: UL 224 VW-1 rated, CSA certified
- Water Absorption: 0.5% maximum after 24 hours at 23°C
- Color: Black with standard packaging lengths of 1.2 m (4 ft) or on spools
Buy the Buy TE Connectivity Dual Wall Heat Shrink Tubing Part Number DWFR3280STK Online
Experience reliable electrical insulation and environmental protection with TE Connectivity's dual wall heat shrink tubing. Designed for durability, it provides excellent mechanical protection, moisture resistance, and flame retardancy. Its high shrink ratio allows quick and easy coverage of various substrate sizes, making it ideal for sealing connector-to-cable transitions, repairing damaged jackets, and creating harness breakouts. Made from polyolefin with an adhesive lining, this tubing is UL VW-1 rated and CSA certified, ensuring safety and performance in industrial, automotive, and electronic applications. Purchase easily online for fast delivery and consistent quality.
Get TE Connectivity DWFR-32/8-0-STK today—built for electrical insulation, environmental sealing, and long-lasting durability.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DWFR3280STK?
You can click on the BUY or RFQ button to purchase DWFR3280STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DWFR3280STK?
You can download the DWFR3280STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DWFR3280STK?
Raychem TE Connectivity
