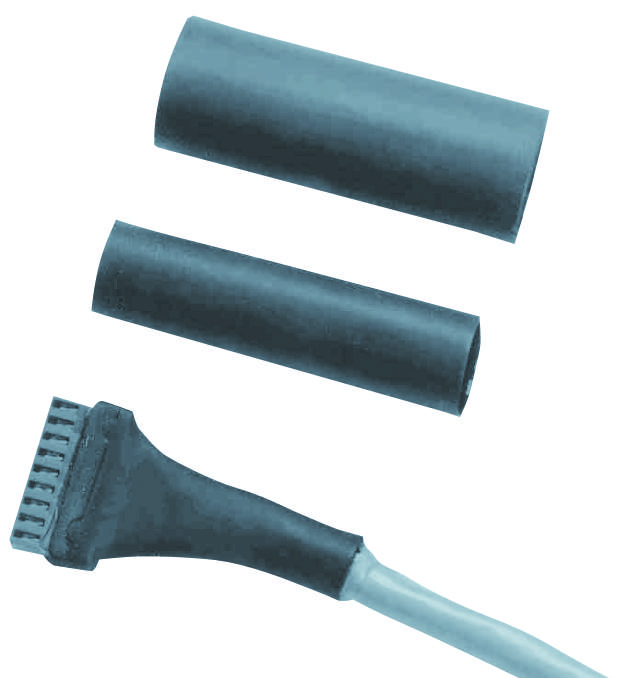

Raychem TE Connectivity DWP12514KIT3REFILL Heat-shrink tubing
The DWP-125-1/4-KIT3-REFILL is a versatile heat-shrink tubing kit designed for environmental sealing and protection of electrical components such as wire splices, breakouts, and connector-to-cable transitions. It features an adhesive lining that bonds well to plastics, rubber, and metals including polyethylene, neoprene, and steel. The tubing is flame-retardant, water-resistant, and resistant to brake fluid, hydraulic fluid, and lubricating oil. Its 3:1 shrink ratio allows for insulation of irregular shapes. The medium wall thickness offers enhanced mechanical protection while ensuring flexibility during installation. Ideal for industrial and electrical applications, the kit includes 24 pieces of 1/4-inch diameter tubing, providing secure, durable seals in demanding environments.
Raychem TE Connectivity DWP12514KIT3REFILL Heat-shrink tubing Specifications:
- Shrink Ratio: 3:1 for insulating irregular shapes
- Wall Thickness: Medium, provides mechanical protection while maintaining flexibility
- Adhesive: Bonds to plastics, rubber, metals including polyethylene, neoprene, steel
- Environment: Flame-retardant, splash-proof, resistant to brake fluid, hydraulic fluid, lubricating oil, water
- Temperature Range: -40°C to 110°C (-40°F to 230°F)
- Inside Diameter (Expanded): 1/4 inch, 6.4 mm
- Recovered Diameter: 0.57 inch, 14.5 mm
- Wall Thickness (Recovered): Nominal 0.057 inch, 1.45 mm
- Material: Polyolefin with adhesive lining
- Standards: RoHS compliant, CSA recognized
- Length per piece: 4 feet (1.2 meters)
- Color Options: Black (standard), white, red, blue, yellow, green, clear available upon request
Buy the Buy Raychem DWP12514KIT3REFILL Part Number DWP-125-1/4-KIT3-REFILL Online
Purchase the Raychem DWP12514KIT3REFILL heat-shrink tubing kit online today to ensure superior environmental sealing and protection for your electrical applications. This kit includes 24 pieces of 1/4-inch diameter tubing with an adhesive lining that bonds effectively to plastics, rubber, and metals such as polyethylene, neoprene, and steel. Its 3:1 shrink ratio allows for easy insulation of irregular shapes, providing enhanced mechanical protection while maintaining flexibility during installation. Ideal for wire splices, connectors, and transitions, this flame-retardant, water-resistant tubing is suitable for industrial environments and complies with RoHS and safety standards.
Buy Raychem DWP12514KIT3REFILL now and experience unmatched reliability and performance with durable, flexible, and adhesive-lined heat-shrink tubing for demanding electrical sealing.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DWP12514KIT3REFILL?
You can click on the BUY or RFQ button to purchase DWP12514KIT3REFILL from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DWP12514KIT3REFILL?
You can download the DWP12514KIT3REFILL datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DWP12514KIT3REFILL?
Raychem TE Connectivity
