Raychem TE Connectivity DWP12534KIT3REFILL Heat Shrink Tubing Kit

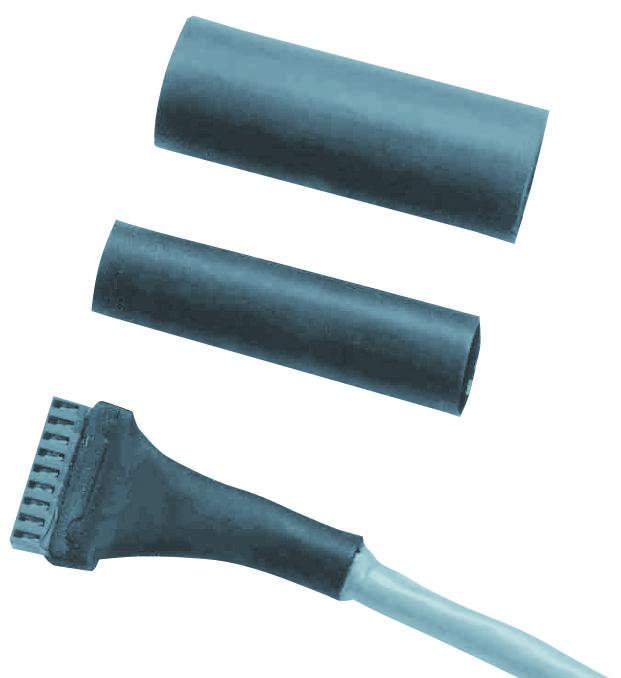

The DWP-125-3/4-KIT3-REFILL is a flexible adhesive-lined heat-shrink tubing kit providing reliable environmental sealing and electrical protection. Designed for wire splices, breakouts, and connector-to-cable transitions, it features a 3:1 shrink ratio to conform to irregular shapes. The medium wall thickness offers increased mechanical protection while remaining flexible during installation. The tubing bonds to plastics, rubber, and metals like polyethylene, neoprene, and steel. Suitable for industrial applications, it ensures splash and fluid resistance against brake fluid, hydraulic fluid, lubricating oil, and water, with flame-retardant properties and RoHS compliance.
Raychem TE Connectivity DWP12534KIT3REFILL Heat Shrink Tubing Kit Specifications:
- Shrink Ratio: 3:1
- Inner Diameter Range: 1/4 inch to 3/4 inch (6.4 mm to 19.1 mm)
- Recovered Wall Thickness: 0.057 to 0.080 inches (1.45 to 2.03 mm)
- Variable Wall Thickness after Heating: 0.057 to 0.080 inches (1.45 to 2.03 mm)
- Adhesive Thickness: 0.022 to 0.030 inches (0.56 to 0.76 mm)
- Operating Temperature Range: -40°C to 110°C (-40°F to 230°F)
- Color Options: Black, White, Red, Blue, Yellow, Green, Clear
- Package Length: 4 feet (1.2 meters)
- Material: Polyolefin with adhesive lining
- Compliance: RoHS, Flame-retardant
- Application: Environmental sealing, electrical protection, wire splices, connector transitions
- Standards: CSA, UL recognized for 600 V, 125°C operation
Buy the Raychem DWP-125 U+2013 Reliable Heat Shrink Tubing for Industrial Applications
Order the Raychem DWP-125 heat-shrink tubing kit online today to ensure reliable electrical insulation and environmental protection. This versatile kit includes five pieces of medium wall adhesive-lined polyolefin tubing, ideal for sealing wire splices, breakouts, and connector-to-cable transitions in industrial settings. Its 3:1 shrink ratio allows it to conform to irregular shapes, providing mechanical protection and fluid resistance against brake fluid, hydraulic fluid, and water. Flame-retardant and RoHS compliant, it offers excellent durability and performance for demanding applications.
Get Raychem DWP-125 today—built for precision and long-lasting durability in electrical sealing and protection.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DWP12534KIT3REFILL?
You can click on the BUY or RFQ button to purchase DWP12534KIT3REFILL from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DWP12534KIT3REFILL?
You can download the DWP12534KIT3REFILL datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DWP12534KIT3REFILL?
Raychem TE Connectivity
