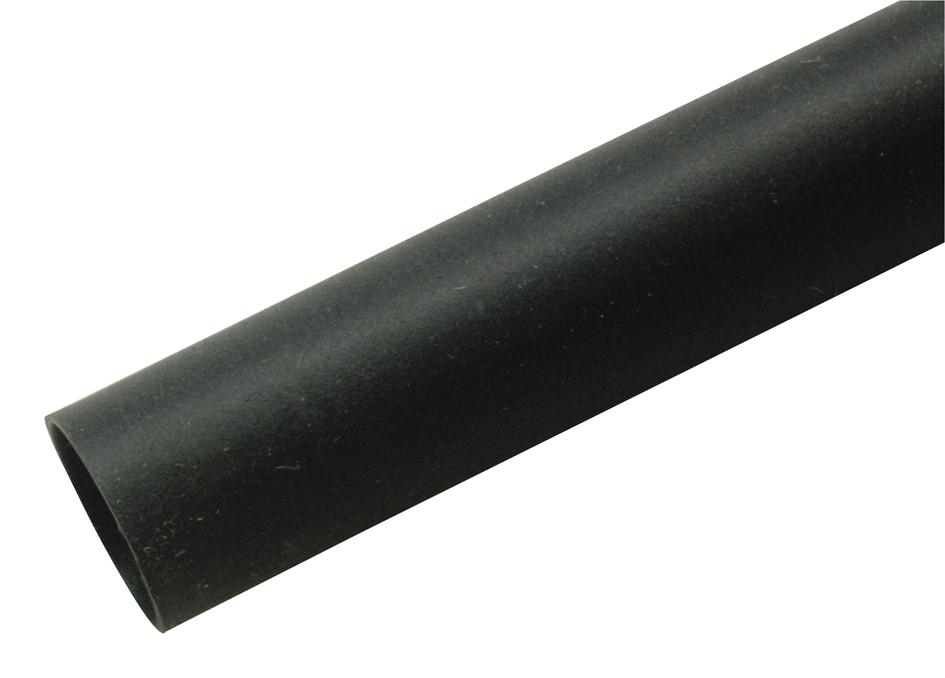

Raychem TE Connectivity ES2000NO1C1050MM Silicone Tubing
Raychem ES2000 series silicone-coated tubing offers superior environmental sealing and electrical insulation for wire splices and components. Flame-retardant, tough, and mechanically durable, the tubing provides strain relief and abrasion resistance, with a thick adhesive liner acting as an effective barrier against fluids and moisture. It features a 4:1 shrink ratio, allowing a few sizes to cover a wide range of diameters, and performs well over an extended temperature range of -40°C to 130°C. Suitable for demanding electrical and environmental applications across various industries.
Raychem TE Connectivity ES2000NO1C1050MM Silicone Tubing Specifications:
- Shrink Ratio: 4:1
- Minimum Shrink Temperature: 110°C [230°F]
- Full Recovery Temperature: 135°C [275°F]
- Operating Temperature Range: -40°C to 130°C [-40°F to 266°F]
- Wall Thickness After Heating: 0.047 in (ES2000-No. 3), 0.095 in (ES2000-No. 4)
- Maximum Expanded Diameter: 10.85 inches (ES2000-No. 3), 17.78 inches (ES2000-No. 4)
- Color: Black
- UL Recognized, RoHS Compliant
- Material: Fluoropolymer coating with adhesive liner
- Application: Environmental sealing, electrical insulation of wire splices, terminations, components
- Available Sizes: No. 1 to No. 4, with specific recovered wall thicknesses and dimensions
Buy the Raychem Series ES2000 Flame-Retardant Silicone Tubing: ES2000NO1C1050MM
Enhance your electrical insulation with Raychem Series ES2000 silicone tubing. Designed for environmental sealing, abrasion resistance, and moisture barrier, this tubing offers a 4:1 shrink ratio, with high mechanical toughness and flame-retardant properties. It withstands temperatures from -40°C to 130°C, ensuring performance in harsh conditions. Suitable for wire splices, terminations, and components, it supports industry standards like UL recognition and RoHS compliance. Shop online now for quick delivery and dependable quality in your electrical applications.
Order your Raychem Series ES2000 flame-retardant silicone tubing today and ensure reliable environmental protection and insulation for your electrical projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ES2000NO1C1050MM?
You can click on the BUY or RFQ button to purchase ES2000NO1C1050MM from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ES2000NO1C1050MM?
You can download the ES2000NO1C1050MM datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ES2000NO1C1050MM?
Raychem TE Connectivity
