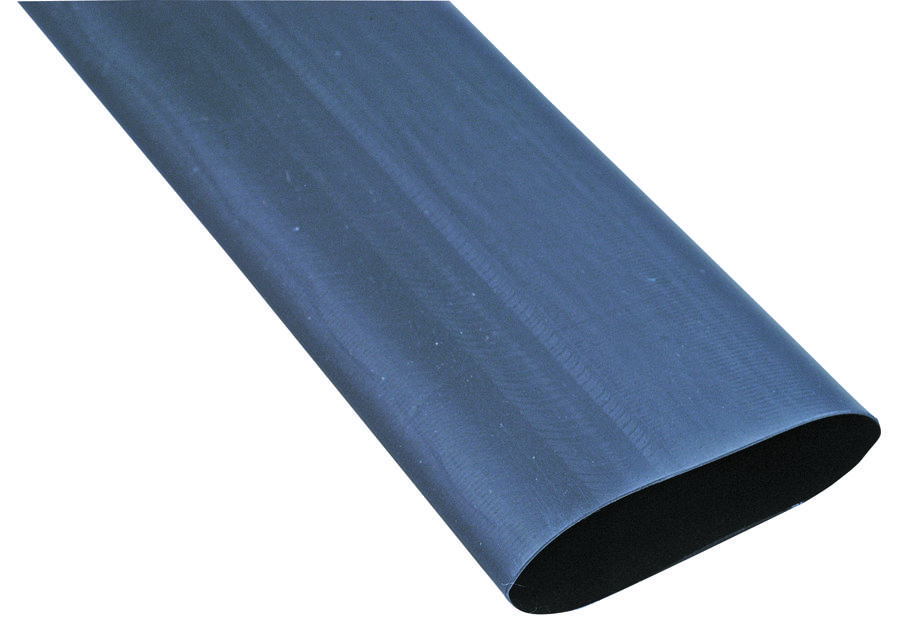

Raychem TE Connectivity ES2000NO1C10STK automotive heat-shrink tubing
The product is heat-shrinkable tubing designed for automotive environmental sealing and electrical insulation of wire splices, terminations, and components. It features a flame-retardant, semi-rigid polyolefin outer jacket and a hot-melt adhesive inner layer that adheres to all major automotive wire insulations. When heated, it provides strain relief, moisture sealing, and protection against automotive fluids, ensuring durability in harsh environments. Its high shrink ratio allows covering multiple-wire splices efficiently, with a recovery temperature of 135°C and continuous operating temperature between -40°C and 130°C, offering reliable insulation and mechanical protection.
Raychem TE Connectivity ES2000NO1C10STK automotive heat-shrink tubing Specifications:
- Material: Flame-retardant, radiation-crosslinked polyolefin outer jacket
- Inner Layer: Hot-melt adhesive for adhesion to wire insulation
- Inside Diameter (Expanded): 5.72 mm to 17.78 mm depending on size
- Recovered Wall Thickness: 0.047 mm to 0.095 mm depending on size
- Full Recovery Temperature: 135°C
- Continuous Operating Temperature: -40°C to 130°C
- Minimum Tensile Strength: 1500 psi
- Ultimate Elongation: 250%
- Secant Modulus at 2%: 20,000 psi
- Flammability: Self-extinguishing within 30 seconds
- Volume Resistivity: 1.0 x 10^12 ohm-cm
- Standard Cut Lengths: 27 mm, 50 mm, 65 mm, 1220 mm plus 25.4 mm
- Color: Black
- Type: Raychem UL ES2000 REIW12
Buy the Raychem ES2000 U–2013 Reliable Automotive Heat-Shrinkable Tubing for Industrial Applications
Enhance your automotive wiring projects with Raychem ES2000 heat-shrink tubing, specially designed for environmental sealing and electrical insulation. This flame-retardant, radiation-crosslinked polyolefin tubing features a unique hot-melt adhesive inner layer that adheres strongly to wire insulation, forming an effective moisture and fluid barrier. Its high shrink ratio covers multiple wire splices, providing strain relief and mechanical protection under extreme temperatures from -40°C to 130°C. Easy to cut, install, and reliable, it is perfect for automotive, industrial, and electrical applications requiring robust environmental resistance.
Buy Raychem ES2000 heat-shrink tubing now and experience unmatched reliability and performance in automotive insulation and sealing solutions.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ES2000NO1C10STK?
You can click on the BUY or RFQ button to purchase ES2000NO1C10STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ES2000NO1C10STK?
You can download the ES2000NO1C10STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ES2000NO1C10STK?
Raychem TE Connectivity
