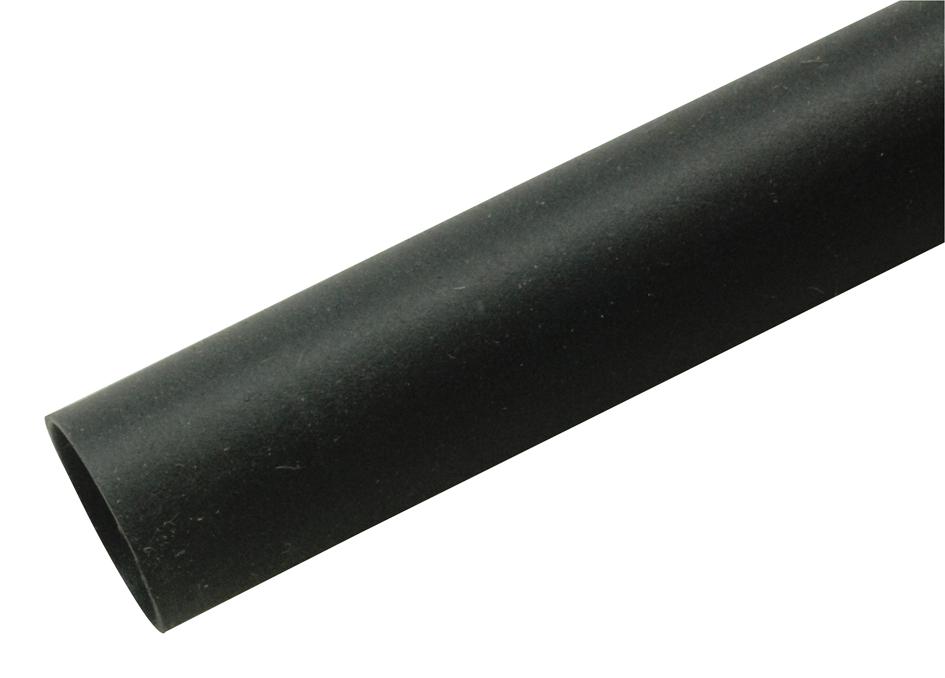

Raychem TE Connectivity ES2000NO2B9050MM Automotive Heat Shrink Tubing
Adhesive-lined heat-shrinkable tubing designed for automotive environmental sealing and electrical insulation, suitable for wire splices, terminations, and components. It features a hot-melt adhesive for robust adhesion to various wire insulations, providing moisture and automotive fluid protection. With a radiation-crosslinked polyolefin outer jacket, the tubing offers flame-retardant, mechanical toughness, and strain relief. Its high shrink ratio enables extensive coverage with fewer sizes, ensuring cost-effective sealing on multiple-wire splices up to seven wires. Temperature resistance ranges from -40°C to 130°C, with full recovery at 135°C, making it ideal for demanding automotive applications.
Raychem TE Connectivity ES2000NO2B9050MM Automotive Heat Shrink Tubing Specifications:
- Material: Radiation-crosslinked polyolefin outer jacket with hot-melt adhesive inner layer
- Inside diameter: ES2000-No.2: 7.44 mm (0.293 in)
- Recovered wall thickness: 0.060 in (1.52 mm)
- Full recovery temperature: 135°C
- Continuous operating temperature: -40°C to 130°C
- Minimum tensile strength: 1500 psi (10.3 MPa)
- Ultimate elongation: 250%
- Secant modulus at 2%: 20,000 psi (137 MPa)
- Flammability: Self-extinguishing within 30 seconds
- Volume resistivity: 1.0 x 10^2 ohm-cm
- Shrink ratio: High, covering multiple wire sizes with minimal inventory
- Standard cut lengths: 1220 mm + 25.4 mm, with specific sizes available
Buy the Tyco Electronics Series ES2000 Adhesive-Lined Heat-Shrinkable Tubing: ES2000NO2B9050MM
Purchase Tyco Electronics ES2000NO2B9050MM online today and benefit from advanced flame-retardant, adhesive-lined tubing designed specifically for automotive wiring protection. This high-quality heat-shrinkable tube offers excellent environmental sealing, moisture resistance, and strain relief for wire splices and components. Its high shrink ratio simplifies installation across a wide range of wire sizes, reducing inventory needs. With a temperature range from -40°C to 130°C and full recovery at 135°C, this tubing ensures durability under harsh conditions. Order now to enhance your automotive insulation and sealing solutions with our reliable, UL-listed product.
Buy Tyco Electronics ES2000NO2B9050MM high-performance heat-shrinkable tubing now and experience unmatched reliability and automotive safety performance.
