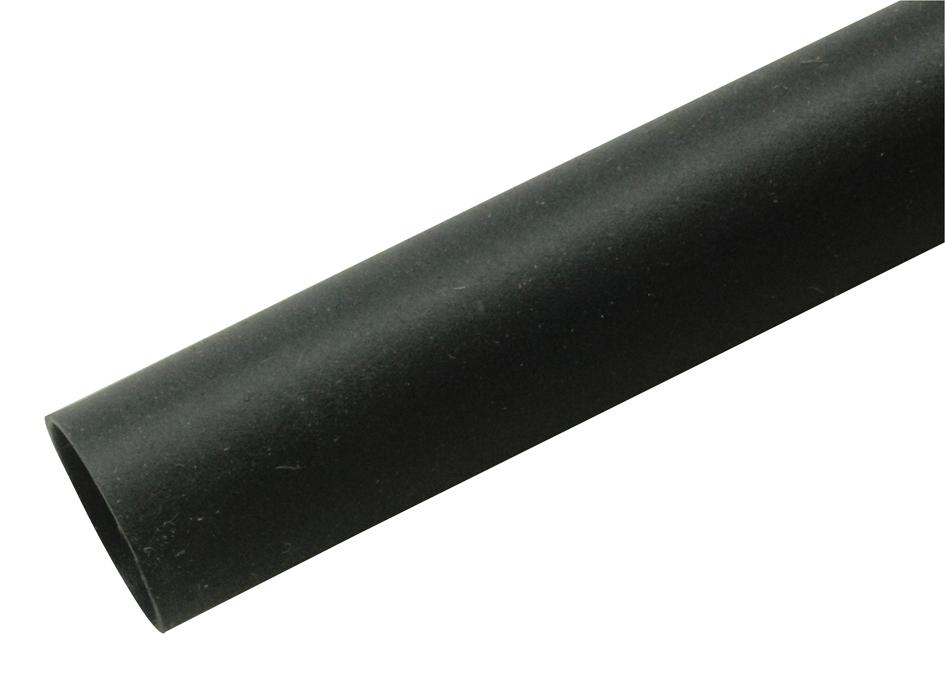

Raychem TE Connectivity FL2500NO3J10STK Flame-Retardant Heat-Shrink Tubing
Raychem FL2500 flame-retardant polyolefin heat-shrinkable tubing with adhesive lining provides full flame-retardancy, moisture sealing, and mechanical protection. Rated for 135°C for 3000 hours, ideal for automotive harnesses and harsh environments. Shrinks at 110°C minimum, fully recovers at 135°C, and offers excellent strain relief, abrasion resistance, and chemical sealing. The tubing's thick adhesive lining fills voids during shrinking, ensuring a complete seal against oils, moisture, and fluids. Suitable for electrical and wiring applications requiring flame-retardant insulation and durable long-term performance.
Raychem TE Connectivity FL2500NO3J10STK Flame-Retardant Heat-Shrink Tubing Specifications:
- Shrink Ratio: 4:1
- Rated Temperature: Up to 135°C
- Minimum Shrink Temperature: 110°C
- Full Recovery Temperature: 135°C
- Operating Temperature Range: -40°C to 135°C
- Flame-Retardant: Yes, fully flame-retardant with adhesive liner
- Material: Polyolefin with adhesive lining
- Adhesive Line Thickness: Thick high-performance adhesive
- Inside Diameter (Expanded): FL2500-No. 3: 2.54 mm (minimum), 2.29 mm (recovered)
- Wall Thickness (Recovered): Approx. 0.060 + 0.012 inch
- Color: Black with white adhesive liner
- Compliance: RoHS
- Application: Automotive harness, wire splices, terminals, harsh environments
Buy the Buy Raychem FL2500 Part Number FL2500NO3J10STK Online
Purchase Raychem FL2500 flame-retardant heat-shrink tubing online today. Its flame-resistant polyolefin material with an adhesive lining offers superior sealing, strain relief, and abrasion protection. Rated for 135°C for 3000 hours, ideal for automotive wiring and harsh environments. Shrinks at 110°C and fully recovers at 135°C, ensuring a snug fit. The durable tubing effectively seals against moisture, chemicals, oils, and fluids, providing long-lasting electrical insulation and mechanical protection for critical wire splices and components.
Get Raychem FL2500 today—designed for flame-retardant insulation, moisture sealing, and long-lasting mechanical protection in demanding applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FL2500NO3J10STK?
You can click on the BUY or RFQ button to purchase FL2500NO3J10STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FL2500NO3J10STK?
You can download the FL2500NO3J10STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FL2500NO3J10STK?
Raychem TE Connectivity
