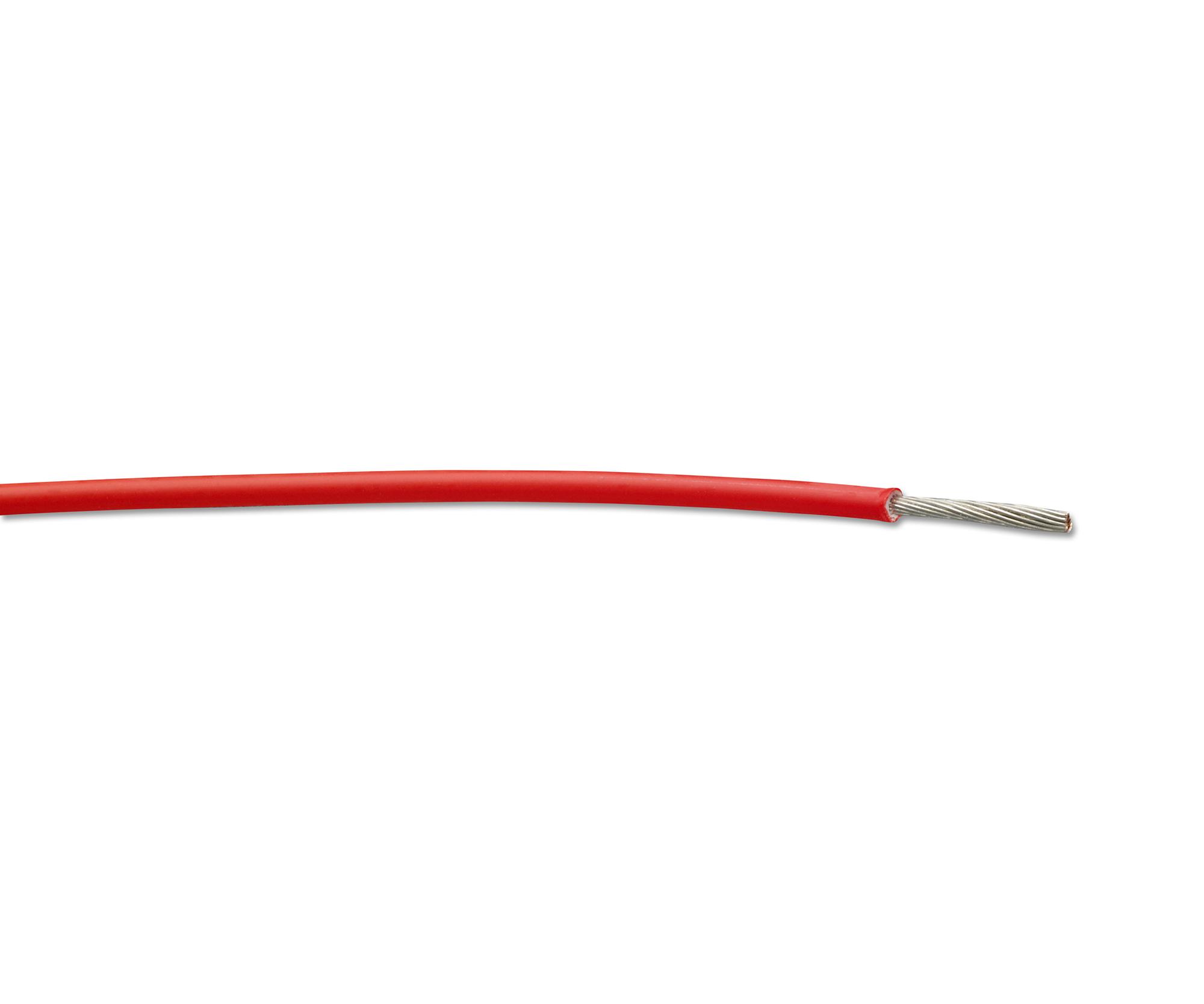

Raychem TE Connectivity FLDWC03110252 Hookup Wire
FlexLite dual wall hookup wire features tin-plated copper conductors insulated with radiation-crosslinked modified polyalkene and PVDF. Rated for 125°C and 600V, it offers excellent thermal stability, insulation resistance of at least 1524 Mohm.km, and flame rating VW1. The wire is suitable for high-temperature, high-voltage applications requiring flexible, durable connections. It complies with UL style 3584, carrying UL labels, and undergoes rigorous testing including crosslink verification and voltage withstand tests, ensuring reliable performance in demanding environments. Perfect for electrical installations where safety and durability are critical.
Raychem TE Connectivity FLDWC03110252 Hookup Wire Specifications:
- Conductor Material: Tin plated copper
- Insulation: Radiation crosslinked modified polyalkene and PVDF
- Insulation Thickness: Minimum 0.10mm, average 0.127mm
- Jacket Thickness: Minimum 0.05mm, average 0.076mm
- Temperature Rating: 125°C
- Voltage Rating: 600 Volts (rms)
- Flame Rating: VW1
- Insulation Resistance: ≥1524 Mohm.km
- Minimum Insulation Tensile Strength: 17.2 N/mm²
- Insulation Elongation: ≥150%
- Shrinkage: Maximum 3mm at each end at 125°C/1 hour
- Crosslink Verification: 300 +3°C/1 hr per WCD3106 clause 3.4.7
- Spark Test Voltage: 8.0 kV
- Application: High-temperature, high-voltage wiring for industrial use
- Certifications: UL Listed, VW1 flame rated
Buy the Buy TE Connectivity Hookup Wire Part Number FLDWC03110252 Online
Order TE Connectivity hookup wire online now for your electrical projects. Designed with tin-plated copper conductors insulated by radiation-crosslinked polyalkene and PVDF, rated for 125°C and 600V. This flexible, flame-rated wire ensures safety, durability, and excellent insulation resistance, ideal for industrial and high-temperature environments. Featuring rigorous testing to meet UL standards and withstand voltage spikes, it guarantees reliable performance. Purchase now to ensure your electrical installations are compliant, safe, and built for long-term efficiency.
Get TE Connectivity wiring today—designed for high-temperature, high-voltage applications with reliable insulation and durable copper conductors.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FLDWC03110252?
You can click on the BUY or RFQ button to purchase FLDWC03110252 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FLDWC03110252?
You can download the FLDWC03110252 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FLDWC03110252?
Raychem TE Connectivity
