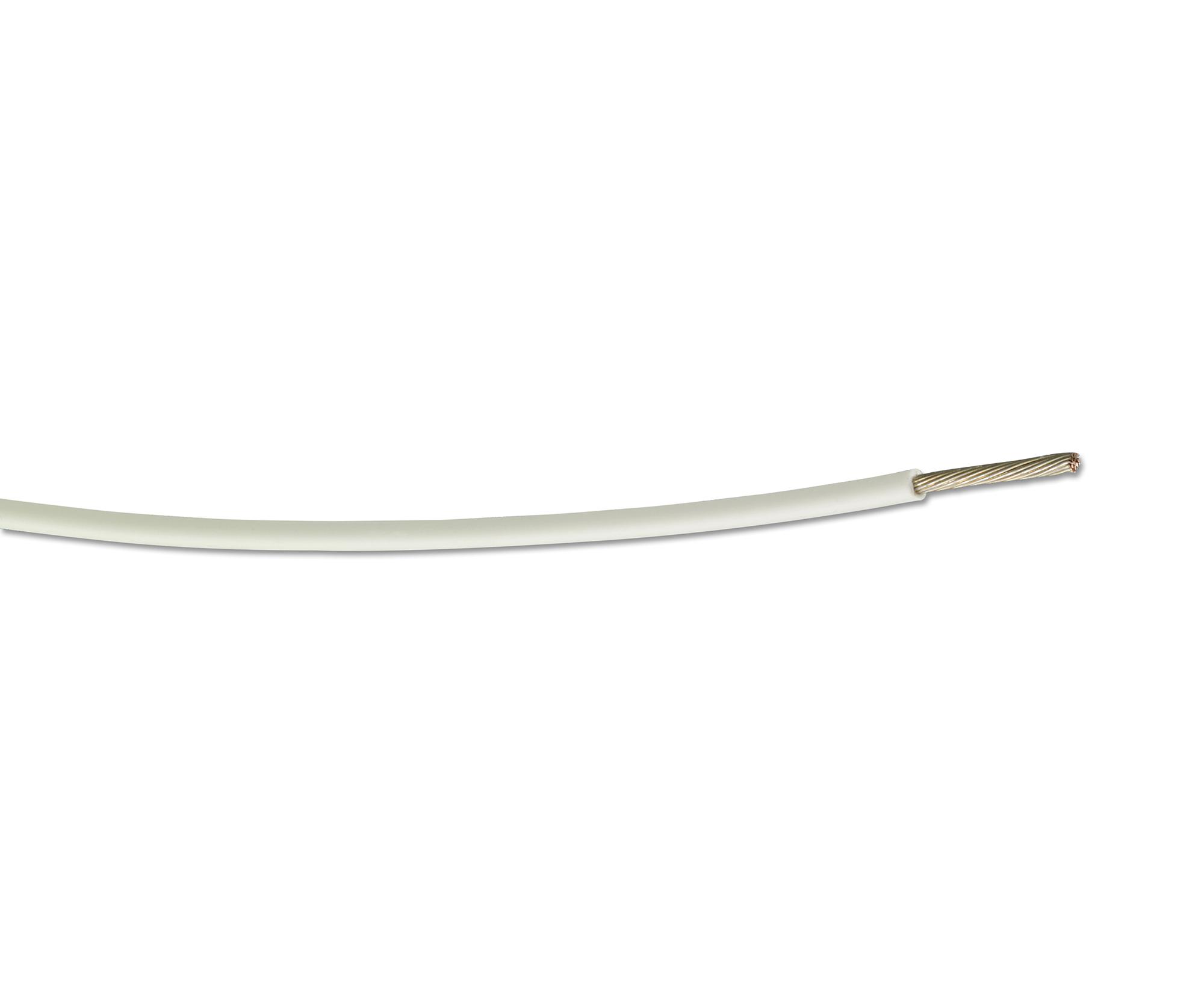

Raychem TE Connectivity FLDWC03110259 Hookup Wire
FlexLite dual wall hookup wire is made of tin-plated copper conductors insulated with radiation crosslinked modified polyalkene and PVDF, rated at 125°C and 600 volts. Designed for reliable electrical connections, it features insulated, flexible, and flame-retardant properties suitable for various industrial applications. Available in multiple sizes with specific crosslinkages, resistance, and diameter specifications, this wire ensures excellent performance with high insulation resistance, thermal stability, and flame rating. UL labeled and tested per WCD3106, it’s ideal for demanding electrical and electronic systems requiring durability and safety.
Raychem TE Connectivity FLDWC03110259 Hookup Wire Specifications:
- Conductor Material: Tin Plated Copper
- Insulation Material: Radiation Crosslinked Modified Polyalkene and PVDF
- Insulation Thickness: 0.10mm (min), 0.127mm (avg)
- Jacket Thickness: 0.05mm (min), 0.076mm (avg)
- Temperature Rating: 125°C
- Voltage Rating: 600 Volts (rms)
- Flame Rating: VW1
- Insulation Resistance: 1524 Mohm.km (min)
- Insulation Tensile Strength: 17.2N/mm² (min)
- Insulation Elongation: 150% (min)
- Thermal Stability: 158°C (temp), retains 70% tensile strength & elongation
- Shrinkage: 3mm max at each end after 1 hour at 125°C
- Spark Test Voltage: 8.0kV
- Crosslink Verification: 300 +3°C/1hr, voltage withstand 2.5kV
- Wire Sizes Available: 0.25mm² to 2.50mm²
- Color Code: As per part number suffix
Buy the Tyco Series FlexLite Dual Wall Hookup Wire: FLDWC0311
Buy Tyco Series FlexLite Hookup Wire online today for reliable electrical connections in industrial applications. Designed with radiation crosslinked insulation for superior thermal stability and flame resistance. Featuring tin-plated copper conductors, this wire is rated at 125°C and 600V, offering excellent insulation resistance and durability. Perfect for demanding electronic and electrical systems, our UL labeled wire ensures safety and performance. Enjoy fast shipping, easy online ordering, and the confidence of quality with every purchase of this versatile, flame-retardant hookup wire, optimized for safety and long-lasting performance.
Get Tyco Series FlexLite FLDWC0311 today—built for high-performance electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FLDWC03110259?
You can click on the BUY or RFQ button to purchase FLDWC03110259 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FLDWC03110259?
You can download the FLDWC03110259 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FLDWC03110259?
Raychem TE Connectivity
