Raychem TE Connectivity FLDWC03110750 Hookup Wire
FlexLite dual wall hookup wire features tin-plated copper conductors insulated with radiation-crosslinked modified polyalkene and PVDF. Rated for 125°C and 600 volts, it offers excellent thermal stability, insulation resistance, and flame rating. The wire complies with UL style 3584, and features minimum insulation thickness of 0.10mm, jacket thickness of 0.05mm, and various conductor sizes ranging from 0.25mm to 2.50mm. Suitable for industrial wiring, automation, and control applications requiring reliable, high-temperature electrical connections with tough insulation and detailed specifications.
Raychem TE Connectivity FLDWC03110750 Hookup Wire Specifications:
- Conductor: Tin-plated copper, radiation crosslinked modified PVDF insulation
- Insulation Thickness: 0.10mm minimum, 0.127mm average
- Jacket Thickness: 0.05mm minimum, 0.076mm average
- Voltage Rating: 600 Volts (rms)
- Temperature Rating: 125°C
- Flame Rating: VW1
- Insulation Resistance: 1524 Mohm.km minimum
- Insulation Tensile Strength: 17.2N/mm² minimum
- Insulation Elongation: 150% minimum
- Shrinkage: 3mm maximum at each end at 125°C/1 hr.
- Spark Test: 8.0 kV
- Crosslink Verification: 300 +3°C/1 hr.
- Wire sizes: 0.25mm² to 2.50mm² with color coding as per standard designator
- Mandrel & weight testing: as specified
- Compliance: UL style 3584, VW1 flame rating, UL labels, and WSD3106 test regime

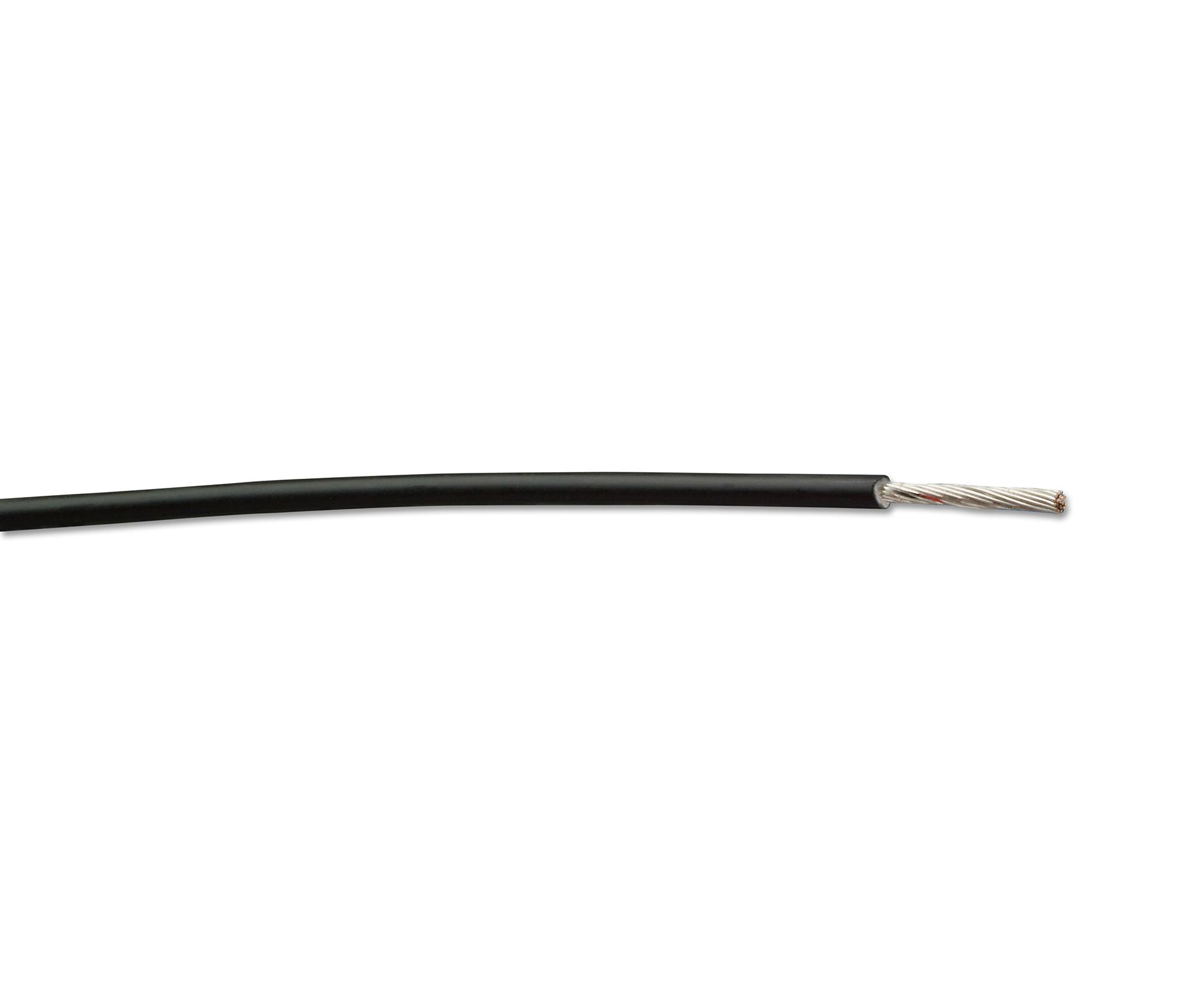

Buy the Tyco Electronics FLDWC0311 – Reliable Hookup Wire for Industrial Applications
Enhance your electrical installations with Tyco Electronics hookup wire, featuring tin-plated copper conductors, radiation-crosslinked insulation, and a 125°C rating. This UL-listed wire ensures reliable performance in demanding environments, with excellent insulation resistance, flame rating, and thermal stability. Perfect for industrial, automation, and control wiring, it provides high durability, consistent quality, and compliance with safety standards. Experience seamless online purchase options with fast delivery, making it easier to upgrade your electrical systems efficiently and confidently today.
Order your Tyco Electronics FLDWC0311 hookup wire today and ensure your industrial wiring projects benefit from durable, temperature-resistant copper conductors with UL certification.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FLDWC03110750?
You can click on the BUY or RFQ button to purchase FLDWC03110750 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FLDWC03110750?
You can download the FLDWC03110750 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FLDWC03110750?
Raychem TE Connectivity
