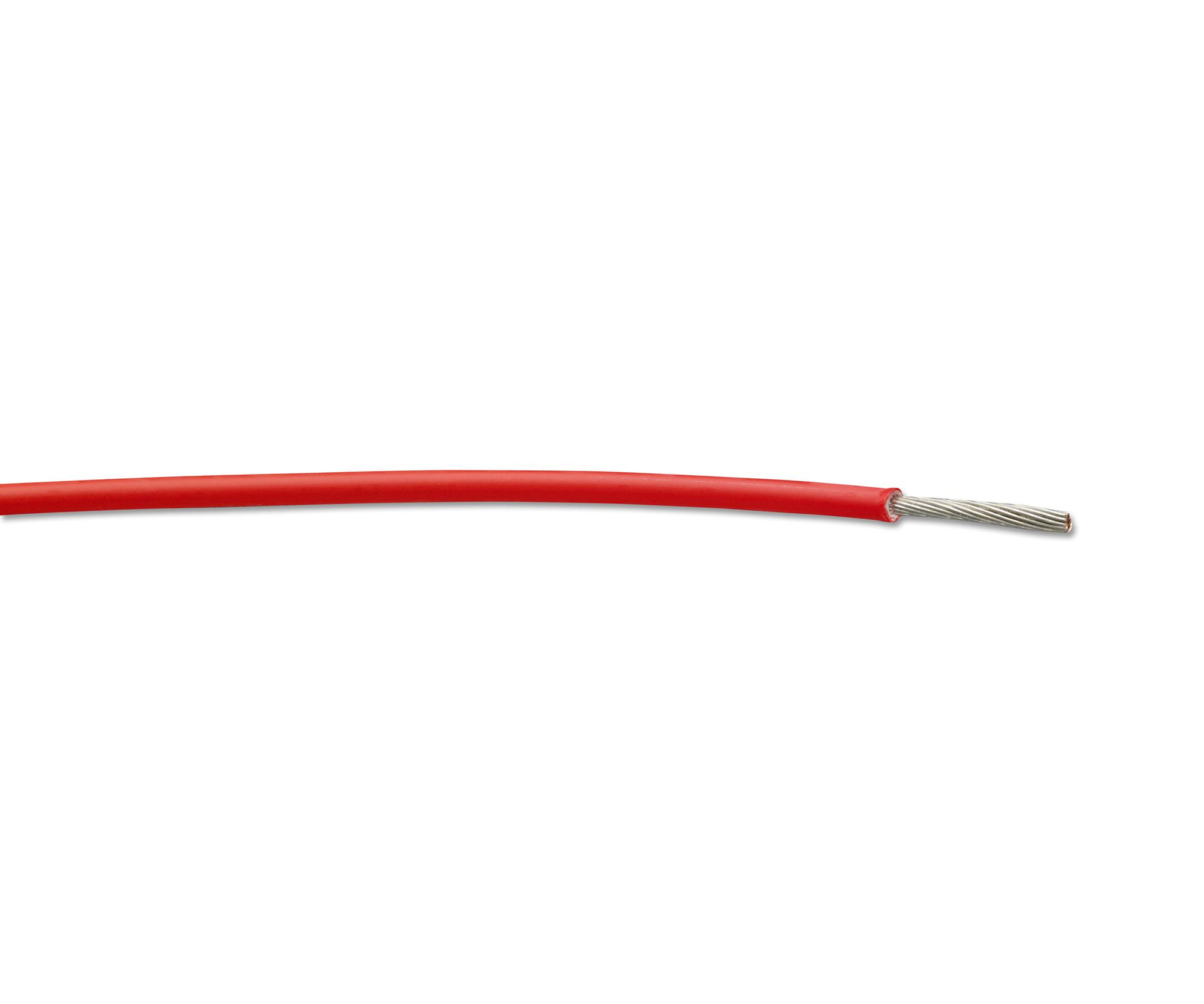

Raychem TE Connectivity FLDWC03110752 High-Temperature Hookup Wire
FlexLite™ dual wall hookup wire features tin-plated copper conductors with radiation crosslinked modified polyalkene insulation, rated for 125°C and 600V. Designed for reliable electrical connections in industrial applications, this UL-style 3584 wire offers excellent insulation resistance of at least 1524 Mohm.km and withstands voltages up to 2.5 kV for crosslink verification. The wire's color coding, insulation thickness, and technical ratings ensure safety and durability in demanding environments. Suitable for control panels, wiring harnesses, and safety-critical systems requiring high-temperature performance.
Raychem TE Connectivity FLDWC03110752 High-Temperature Hookup Wire Specifications:
- Conductor Material: Tin Plated Copper
- Insulation Material: Radiation Crosslinked Modified Polyalkene/PVDF
- Insulation Thickness: 0.10mm (minimum), 0.127mm (average)
- Jacket Thickness: 0.05mm (minimum), 0.076mm (average)
- Temperature Rating: 125°C
- Voltage Rating: 600 Volts (rms)
- Flame Rating: VW1
- Insulation Resistance: Minimum 1524 Mohm.km
- Crosslink Verification: 300 +3°C/1 hr.
- Spark Test Voltage: 8.0 kV
- Insulation Tensile Strength: Minimum 17.2N/mm²
- Insulation Elongation: Minimum 150%
- Shrinkage: Maximum 3 mm at each end at 125°C/1 hour
- Color Code: Based on part number suffix
- Voltage withstand: 2.5 kV
- Tensile Strength: 17.2N/mm² minimum
- Ambient Temperature: Up to 125°C
Buy the Buy TE Connectivity FlexLite Copper Hookup Wire Part Number FLDWC0311 Online
Get your TE Connectivity FlexLite dual wall hookup wire with tin-plated copper conductors and radiation crosslinked insulation online today. Perfect for industrial control, wiring harnesses, and safety-critical electrical systems, this UL-rated wire offers excellent insulation resistance, high voltage withstand capacity, and durability at 125°C. Its flame rating VW1 ensures safety in demanding environments. Easy to order, this wire guarantees dependable performance and confidence for your electrical installations. Shop now and experience fast delivery and trusted quality for all your wiring needs.
Order your TE Connectivity FlexLite hookup wire part number FLDWC0311 today and ensure reliable high-temperature electrical connections in your projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FLDWC03110752?
You can click on the BUY or RFQ button to purchase FLDWC03110752 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FLDWC03110752?
You can download the FLDWC03110752 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FLDWC03110752?
Raychem TE Connectivity
